Dental compressor with base DK50 Z, DK50-10 Z, DK50-10 Z/M, DK50 PLUS, DK50 PLUS/M (Fig.8)

After removing all packaging material, place the product on the floor and remove stabilization parts X and Y

(Detail A). Direct the output pressure hose, drain hose and power cord out the back of the compressor.

Dental compressor in box DK50 S, DK50-10 S (Fig.5,Fig.8)

After removing all packaging material, place the product on the floor and remove stabilization parts X and Y

(Detail A). Direct the output pressure hose, drain hose and power cord out the back of the compressor. Slide

the box over the compressor so that the front face of the box matches the front part of the compressor and

the box is fully seated. Make sure that the pressure hose, drain hose and electric cord come out via the

opening at the back of the box. Position the drain hose with its valve in the holder at the rear of the box.

Dental compressor in box DK50-10 S/M (Fig.5, Fig.8)

After removing all packaging material, place the product on the floor and remove stabilization parts X and Y

(Detail A). Direct the output pressure hose, drain hose and power cord out the back of the compressor. Fit

the housing over the top of the compressor, connect the flexible shaft to the control button, fasten with the

screw and put the lid on the cabinet housing (see picture). Make sure that the pressure hose, drain hose and

electric cord come out via the opening at the back of the box. Position the drain hose with its valve in the

holder at the rear of the box.

Dental compressor in box DK50 PLUS S (Fig.6, Fig.8)

After removing all packaging material, place the product on the floor and remove stabilization parts X and Y

(Detail A). Place the wall-mounted stopper (28) - 2 pcs onto the compressor housing in the rear top part of

the housing and put the housing onto a required place. The stoppers provide a sufficient distance of the

housing from a wall for thorough ventilation. For setting up the compressor in housing you must open the

door on the housing using the attached key and remove connecting reinforcement (27) in the front bottom

part of housing. If necessary, the door may be disassembled using door hinge (32). Protrude pressure hose

via a hole in housing and connect it to the appliance in a suitable way. Insert the compressor using built-in

wheels (33) to the housing. Fix the hose of a manometer in a hose into the fast-on coupling on a

compressor, put the connecting reinforcement (27) back and connect the pressure hose to a compressor.

Insert the electric power cord (39) of a compressor into a socket (34) on a housing. Close the housing doors

and duly lock the lock (26). Connect the mains plug into the mains socket.

It is not allowed to leave the key in a lock! It must be saved against non-instructed persons!

Dental compressor in box DK50 PLUS S/M (Fig.6, Fig.8)

After removing all packaging material, place the product on the floor and remove stabilization parts X and Y

(Detail A). Place the compressor into housing similarly as in the previous paragraph. Prior to placing the

compressor into housing, protrude house for condensate drain via hole in housing and connect it to a bottle

(22). The magnetic holder (31) with a vessel (22), for entrapping condensate from a dryer may be fixed at the

sides of housing or from the front on its doors. When fixing the holder with a vessel at the housing side it is

necessary to consider a space of at least 11 cm between the housing and furniture. Distance smaller than

the specified one may cause problem with handling of the vessel.

10.2.

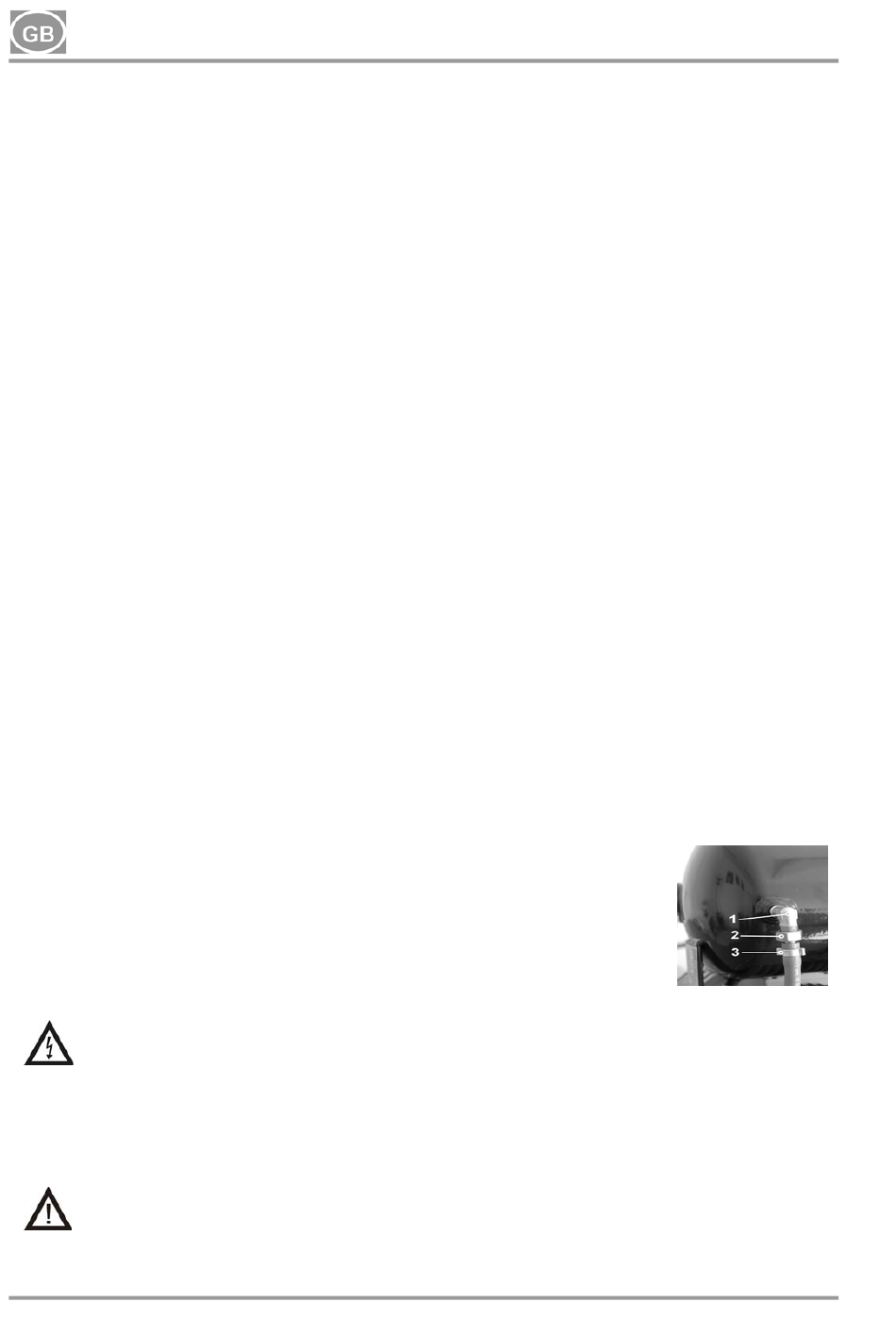

Compressed air outlet

(Fig.9)

At the compressed air outlet (1) of the compressor, connect the pressure

hose with a nut (2) and fasten clip (3). Connect the hose to the dental

appliance.
