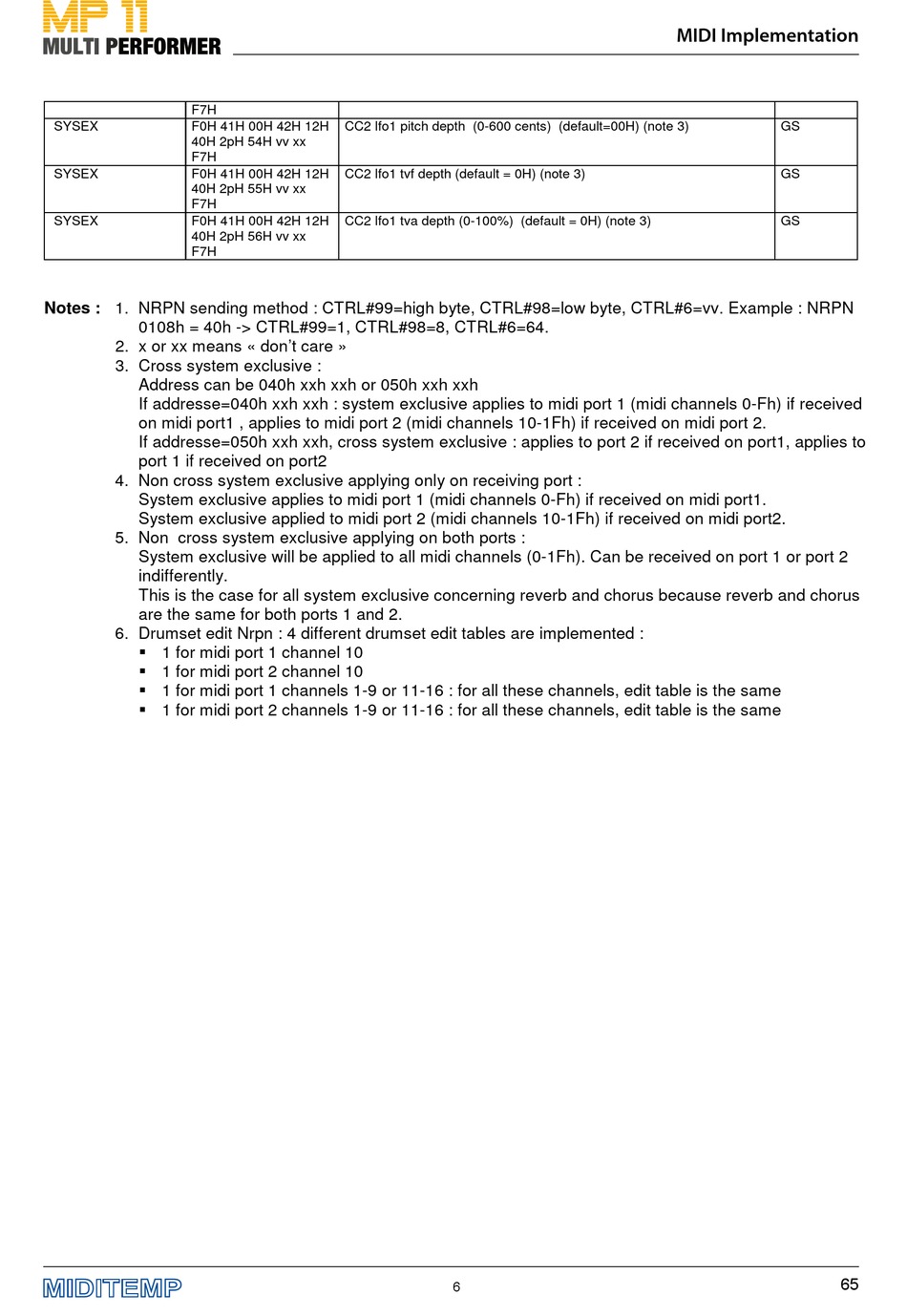

Miditemp MP11 Bedienungsanleitung Seite 65

F7H
SYSEX F0H 41H 00H 42H 12H
40H 2pH 54H vv xx
F7H
SYSEX F0H 41H 00H 42H 12H
40H 2pH 55H vv xx
F7H
SYSEX F0H 41H 00H 42H 12H
40H 2pH 56H vv xx
F7H
Notes : 1. NRPN sending method : CTRL#99=high byte, CTRL#98=low byte, CTRL#6=vv. Example : NRPN
0108h = 40h -> CTRL#99=1, CTRL#98=8, CTRL#6=64.
2. x or xx means « don't care »
3. Cross system exclusive :
Address can be 040h xxh xxh or 050h xxh xxh
If addresse=040h xxh xxh : system exclusive applies to midi port 1 (midi channels 0-Fh) if received
on midi port1 , applies to midi port 2 (midi channels 10-1Fh) if received on midi port 2.
If addresse=050h xxh xxh, cross system exclusive : applies to port 2 if received on port1, applies to
port 1 if received on port2
4. Non cross system exclusive applying only on receiving port :
System exclusive applies to midi port 1 (midi channels 0-Fh) if received on midi port1.
System exclusive applied to midi port 2 (midi channels 10-1Fh) if received on midi port2.
5. Non cross system exclusive applying on both ports :
System exclusive will be applied to all midi channels (0-1Fh). Can be received on port 1 or port 2
indifferently.
This is the case for all system exclusive concerning reverb and chorus because reverb and chorus
are the same for both ports 1 and 2.
6. Drumset edit Nrpn : 4 different drumset edit tables are implemented :
§ 1 for midi port 1 channel 10
§ 1 for midi port 2 channel 10
§ 1 for midi port 1 channels 1-9 or 11-16 : for all these channels, edit table is the same
§ 1 for midi port 2 channels 1-9 or 11-16 : for all these channels, edit table is the same
CC2 lfo1 pitch depth (0-600 cents) (default=00H) (note 3)
CC2 lfo1 tvf depth (default = 0H) (note 3)
CC2 lfo1 tva depth (0-100%) (default = 0H) (note 3)
