II - DESCRIPTION AND CLINICAL APPLICATIONS

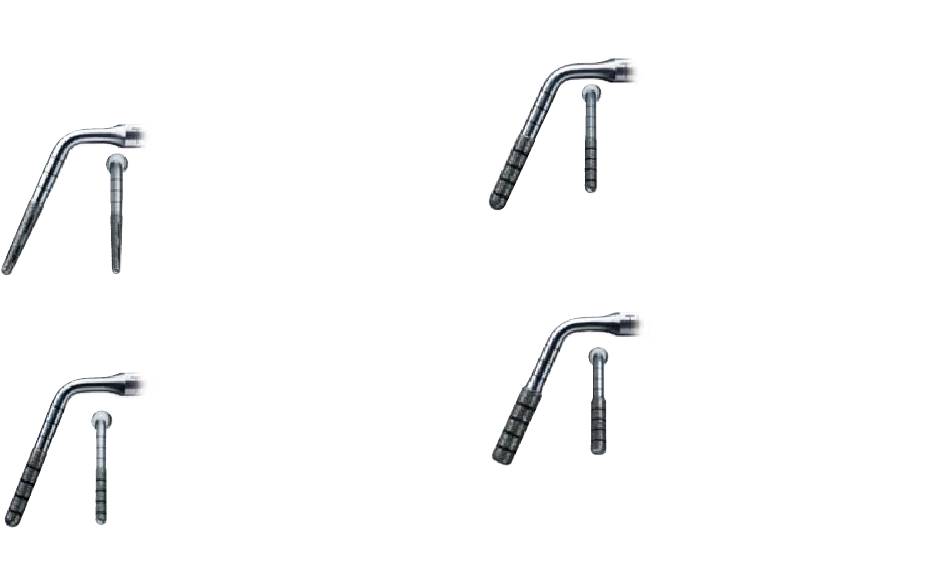

2. 1 TKW1 TIP
Conical (ø1.35mm) and diamond-
coated tip for pilot drilling. Drill
the upper maxilla from the crest
to the sinus floor.
2. 2 TKW2 TIP
Cylindrical
diamond-coated tip dedicated
to preliminary drilling and to
widen the access canal to the
Schneider membrane.
(ø2.1mm) and
6
2. 3 TKW3 TIP
Cylindrical (ø2.35mm) and
diamond-coated tip dedicated
to preliminary drilling and to
widen the access canal to the
Schneider membrane.
2. 4 TKW4 TIP
Cylindrical (ø2.80mm) and
diamond-coated tip dedicated
to secondary drilling and to
widen the access canal to the
Schneider membrane.
