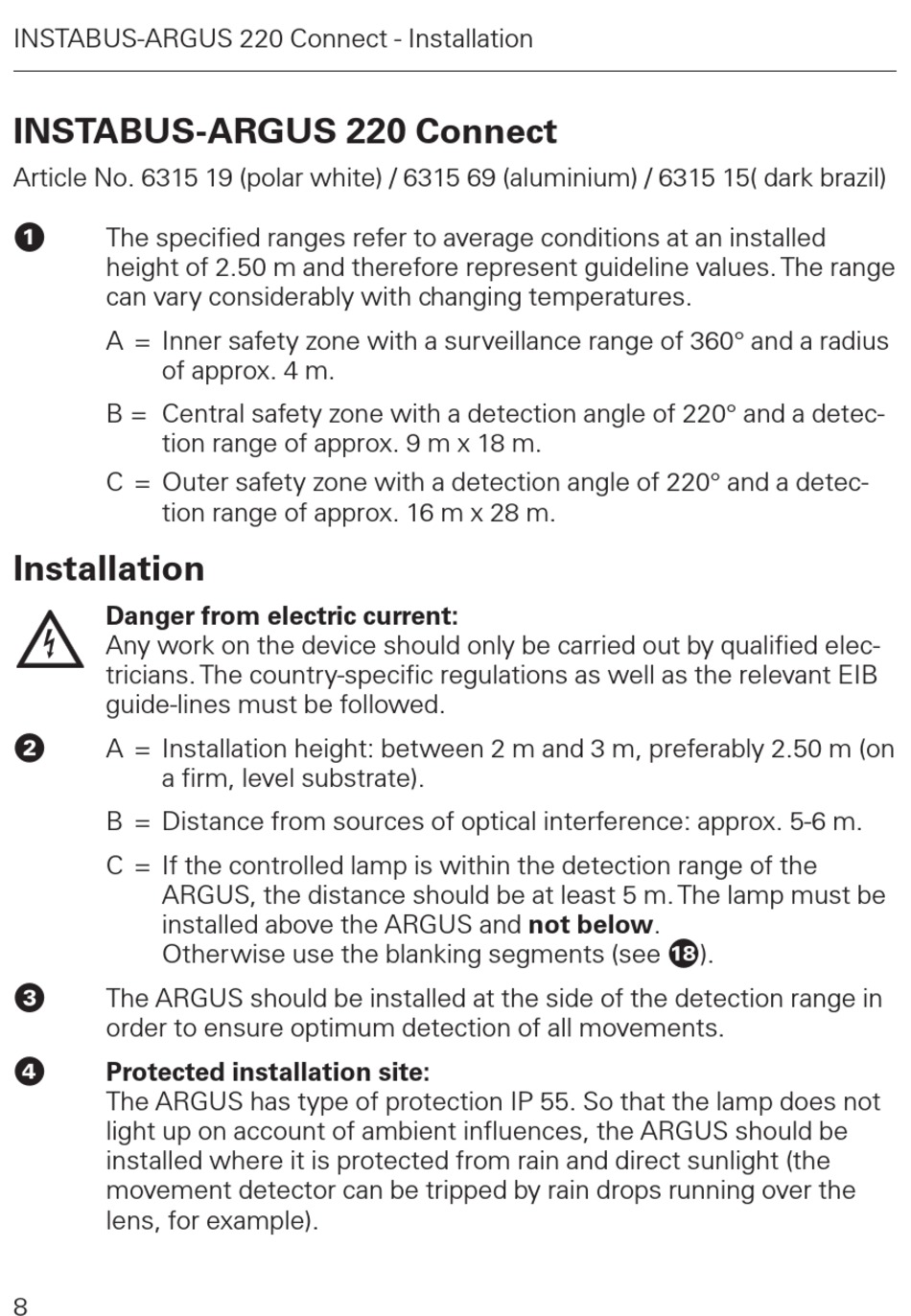

INSTABUS-ARGUS 220 Connect - Installation
INSTABUS-ARGUS 220 Connect
Article No. 6315 19 (polar white) / 6315 69 (aluminium) / 6315 15( dark brazil)
!
The specified ranges refer to average conditions at an installed
height of 2.50 m and therefore represent guideline values. The range
can vary considerably with changing temperatures.
A = Inner safety zone with a surveillance range of 360° and a radius
of approx. 4 m.
B = Central safety zone with a detection angle of 220° and a detec-
tion range of approx. 9 m x 18 m.
C = Outer safety zone with a detection angle of 220° and a detec-
tion range of approx. 16 m x 28 m.

Installation

Danger from electric current:
Any work on the device should only be carried out by qualified elec-
tricians. The country-specific regulations as well as the relevant EIB
guide-lines must be followed.
"
A = Installation height: between 2 m and 3 m, preferably 2.50 m (on
a firm, level substrate).
B = Distance from sources of optical interference: approx. 5-6 m.
C = If the controlled lamp is within the detection range of the
ARGUS, the distance should be at least 5 m. The lamp must be
installed above the ARGUS and not below.
Otherwise use the blanking segments (see ]).
§
The ARGUS should be installed at the side of the detection range in
order to ensure optimum detection of all movements.
$
Protected installation site:
The ARGUS has type of protection IP 55. So that the lamp does not
light up on account of ambient influences, the ARGUS should be
installed where it is protected from rain and direct sunlight (the
movement detector can be tripped by rain drops running over the
lens, for example).
8
