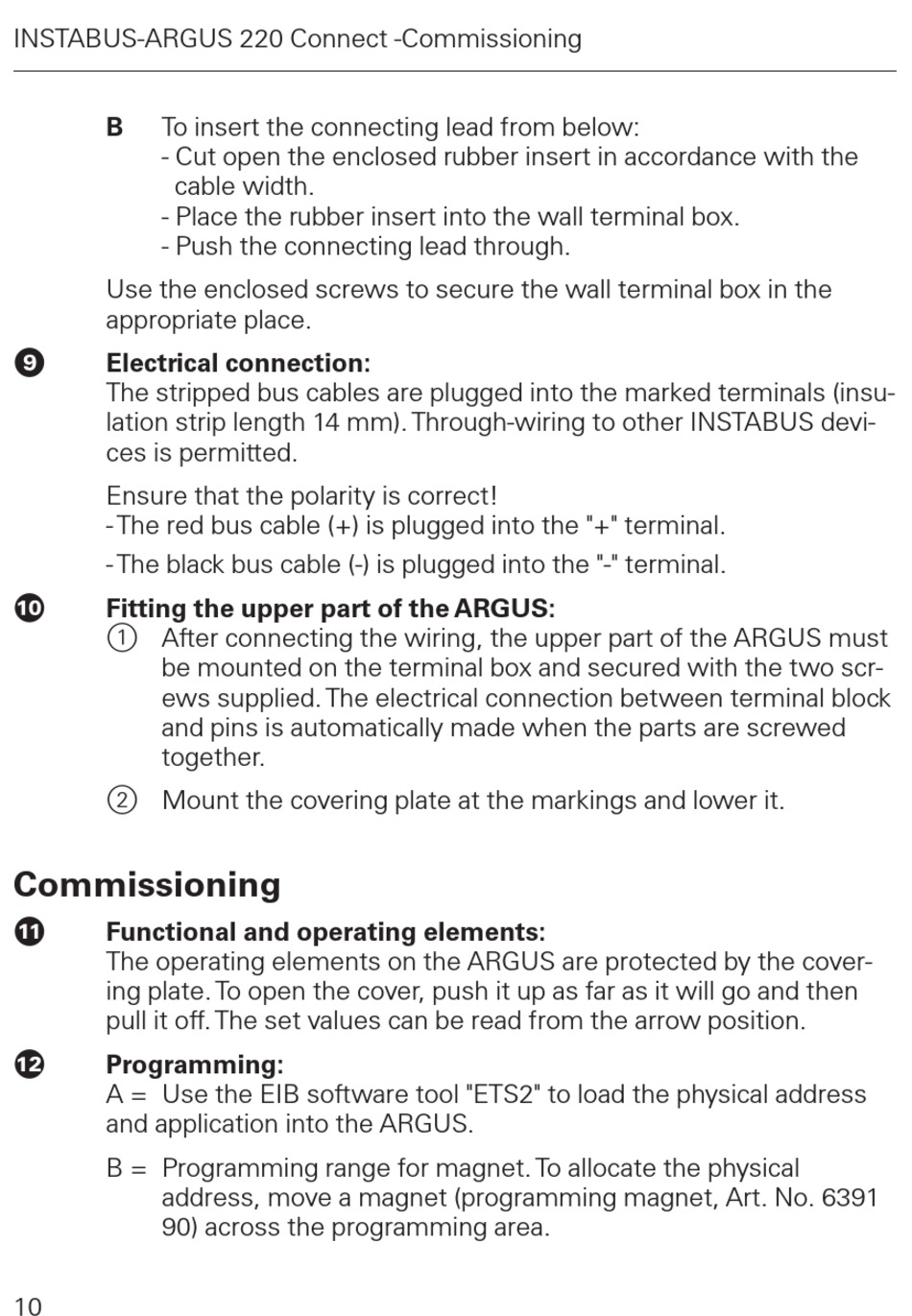

INSTABUS-ARGUS 220 Connect -Commissioning
B To insert the connecting lead from below:
- Cut open the enclosed rubber insert in accordance with the
cable width.
- Place the rubber insert into the wall terminal box.
- Push the connecting lead through.
Use the enclosed screws to secure the wall terminal box in the
appropriate place.
)
Electrical connection:
The stripped bus cables are plugged into the marked terminals (insu-
lation strip length 14 mm). Through-wiring to other INSTABUS devi-
ces is permitted.
Ensure that the polarity is correct!
- The red bus cable (+) is plugged into the "+" terminal.
- The black bus cable (-) is plugged into the "-" terminal.
=
Fitting the upper part of the ARGUS:
1 After connecting the wiring, the upper part of the ARGUS must
be mounted on the terminal box and secured with the two scr-
ews supplied. The electrical connection between terminal block
and pins is automatically made when the parts are screwed
together.
2 Mount the covering plate at the markings and lower it.
Commissioning
?
Functional and operating elements:
The operating elements on the ARGUS are protected by the cover-
ing plate. To open the cover, push it up as far as it will go and then
pull it off. The set values can be read from the arrow position.
>
Programming:
A = Use the EIB software tool "ETS2" to load the physical address
and application into the ARGUS.
B = Programming range for magnet. To allocate the physical
address, move a magnet (programming magnet, Art. No. 6391
90) across the programming area.
