Drehgeber mit integr fliehkraftschalter
Inhaltsverzeichnis

Werbung

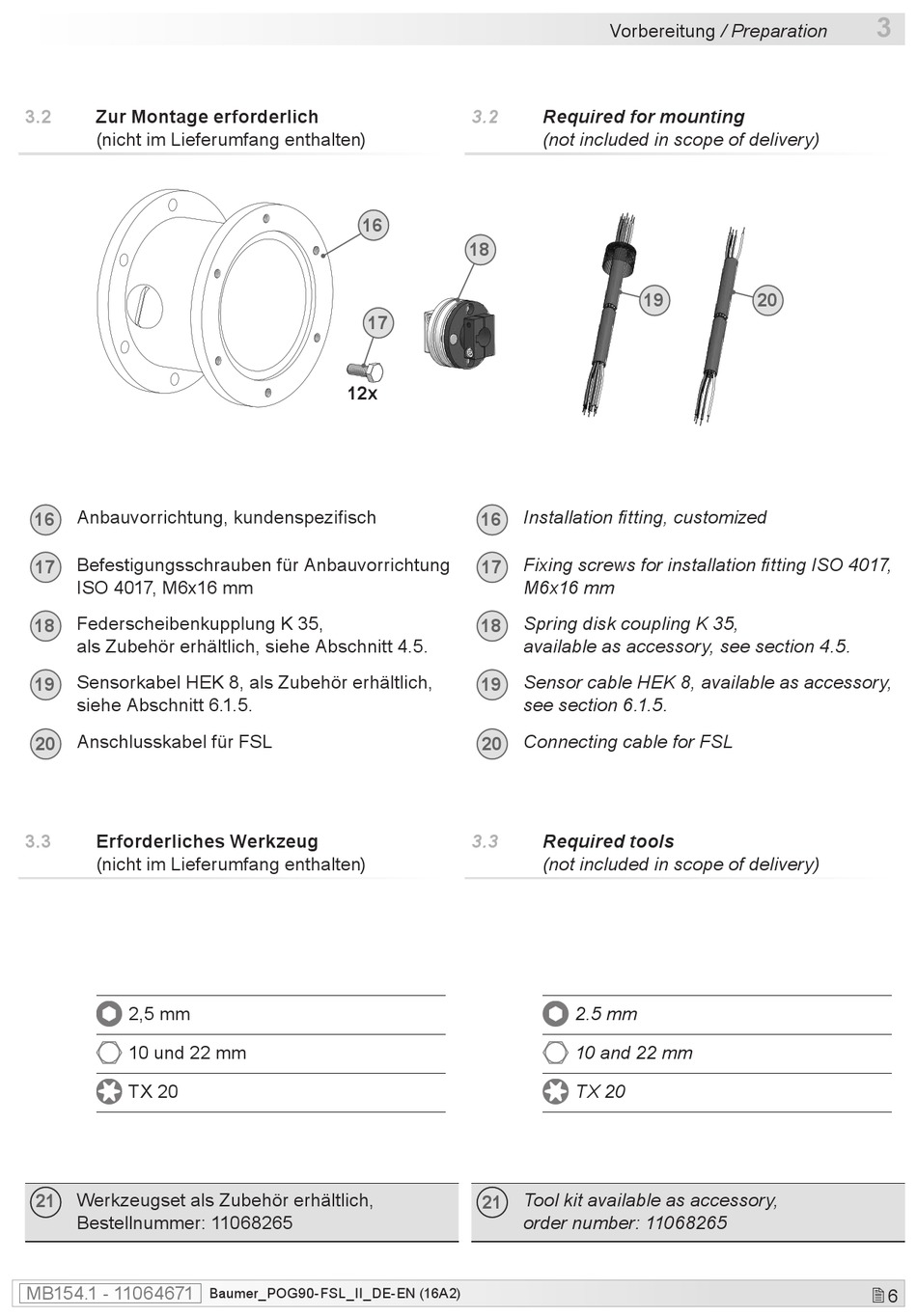

3.2
Zur Montage erforderlich
(nicht im Lieferumfang enthalten)
Anbauvorrichtung, kundenspezifisch
16
Befestigungsschrauben für Anbauvorrichtung
17
ISO 4017, M6x16 mm
Federscheibenkupplung K 35,
18
als Zubehör erhältlich, siehe Abschnitt 4.5.
Sensorkabel HEK 8, als Zubehör erhältlich,
19
siehe Abschnitt 6.1.5.
Anschlusskabel für FSL
20
3.3
Erforderliches Werkzeug
(nicht im Lieferumfang enthalten)
2,5 mm
10 und 22 mm
TX 20
Werkzeugset als Zubehör erhältlich,
21
Bestellnummer: 11068265
MB154.1 - 11064671
16
17
12x
Baumer_POG90-FSL_II_DE-EN (16A2)
Vorbereitung / Preparation
3.2
Required for mounting
(not included in scope of delivery)
18
Installation fitting, customized
16
Fixing screws for installation fitting ISO 4017,
17
M6x16 mm
Spring disk coupling K 35,
18
available as accessory, see section 4.5.
Sensor cable HEK 8, available as accessory,
19
see section 6.1.5.
Connecting cable for FSL
20
3.3
Required tools
(not included in scope of delivery)
2.5 mm
10 and 22 mm
TX 20
Tool kit available as accessory,
21
order number: 11068265
19
20
3
6
