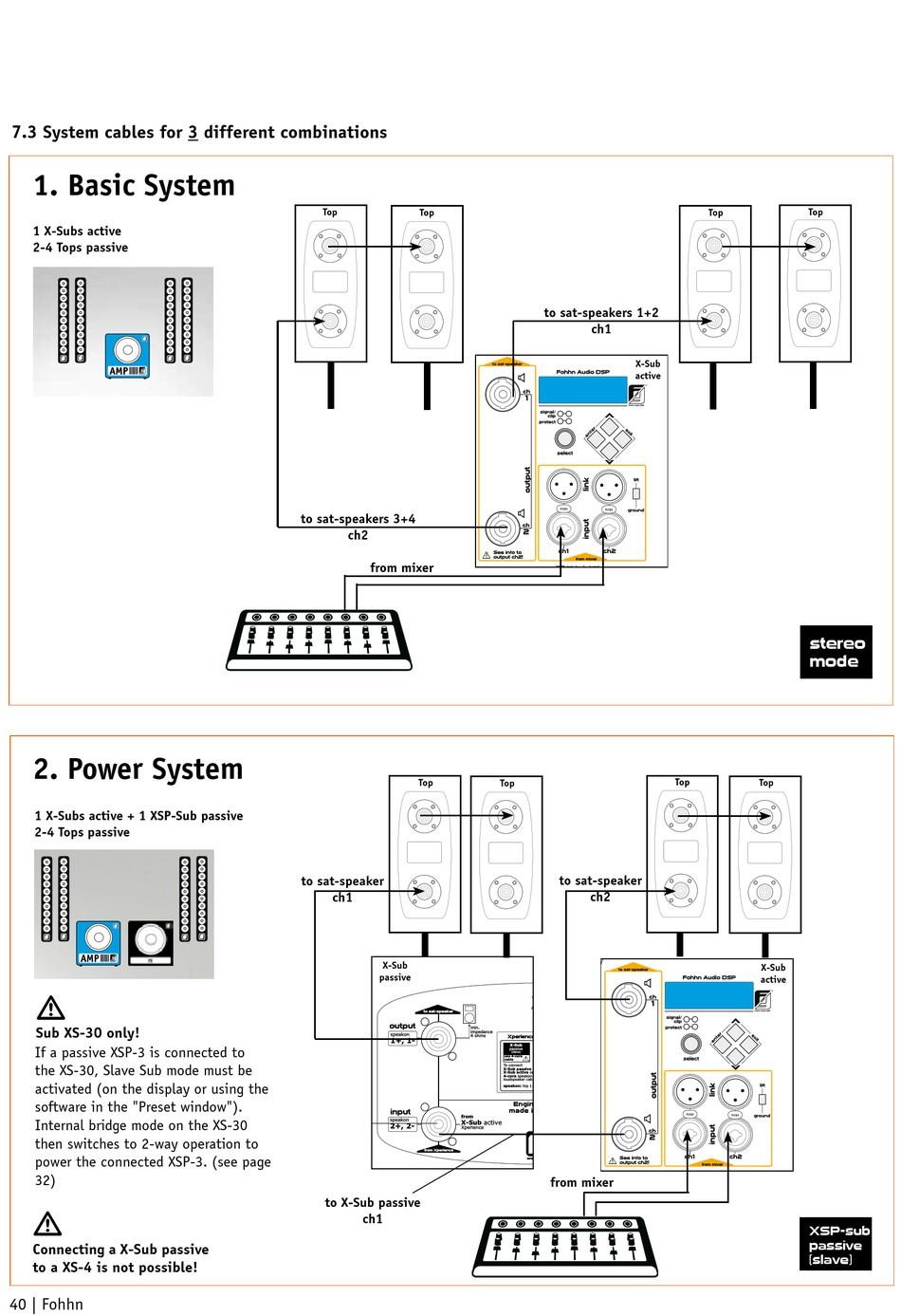

7.3 System cables for 3 different combinations

1. Basic System

1 X-Subs active
2-4 Tops passive
2. Power System
1 X-Subs active + 1 XSP-Sub passive
2-4 Tops passive

Sub XS-30 only!
If a passive XSP-3 is connected to
the XS-30, Slave Sub mode must be
activated (on the display or using the
software in the "Preset window").
Internal bridge mode on the XS-30
then switches to 2-way operation to
power the connected XSP-3. (see page
32)

Connecting a X-Sub passive
to a XS-4 is not possible!
40 | Fohhn
Top
Top
Engineered and made in Germany
to sat-speakers 3+4
ch2
from mixer
Top
to sat-speaker
ch1
X-Sub
passive
to sat-speaker
min.
impedance
speakon
30 4 ohms
1+, 1-
from
speakon
31 X-Sub active
2+, 2-
Xperience
from Xperience
to X-Sub passive
ch1
to sat-speakers 1+2
Engineered and made in Germany
ch1
output
X-Sub
active
Top
to sat-speaker
Engineered and made in Germany
Engineered and made in Germany
ch2
X-Sub passive
Xperience system wiring
power handling 500W
top
X-Sub
passive
passive
(slave)
X-Sub
use 4-core
!
passive
cable
To connect
X-Sub passive with
+1 +2
X-Sub active only use
-1 -2
4-core speakon
loudspeaker cable!
speakon: top 1+, 1- / sub 2+, 2-
Engineered and
made in Germany.
speakon
1+, 1-
‚®
www.fohhn.com
from mixer
Top
Top
Engineered and made in Germany
stereo
mode
Top
Top
Engineered and made in Germany
Engineered and made in Germany
X-Sub
active
XSP-2
Xover 130 Hz
from external
32
amplifier /
powermixer
XSP-sub
passive
(slave)
Engineered and made in Germany
