(7) Link jack ch2
Link jacks: The input signal is available unchanged at these XLR
link jacks and can be transmitted to other devices.
In bridge mode, the input jack (7) has no function.
(10) ground- / lift switch
In the GND position, the signal ground is earthed. In the LIFT
position, the signal ground is isolated from the housing and
prevents humming as a result.
(13) protect LED ch1
Green: After switching on the X-Sub active at the Power on/
off switch (2), this status LED for ch1 lights up green. This
indicates that the unit is ready for operation.
Red: The protect LED (13) lights up red when the electronic
protective circuits for the amplifier are active, for example,
when the user connects a short-circuited Speakon cable to the
X-Sub active. The system is comprehensively protected against
short-circuiting, low impedance/overloading and excess
temperature.
(12) protect LED ch2
Green: After switching on the X-Sub active at the Power on/
off switch (2), this status LED for ch2 lights up green. This
indicates that the unit is ready for operation.
Red: The protect LED (12) lights up red when the electronic
protective circuits for the amplifier are active, for example,
when the user connects a short-circuited Speakon cable to the
X-Sub active. The system is comprehensively protected against
short-circuiting, low impedance/overloading and excess
temperature.
(15) signal / clip LED ch1
Signal / clip LED: Lights up green when the input signal is
available, turns red when the input signal (from the mixing
desk, keyboard, etc.) is too high.
(14) signal / clip LED ch2
Signal / clip LED: Lights up green when the input signal is
available, turns red when the input signal (from the mixing
desk, keyboard, etc.) is too high.
36 | Fohhn

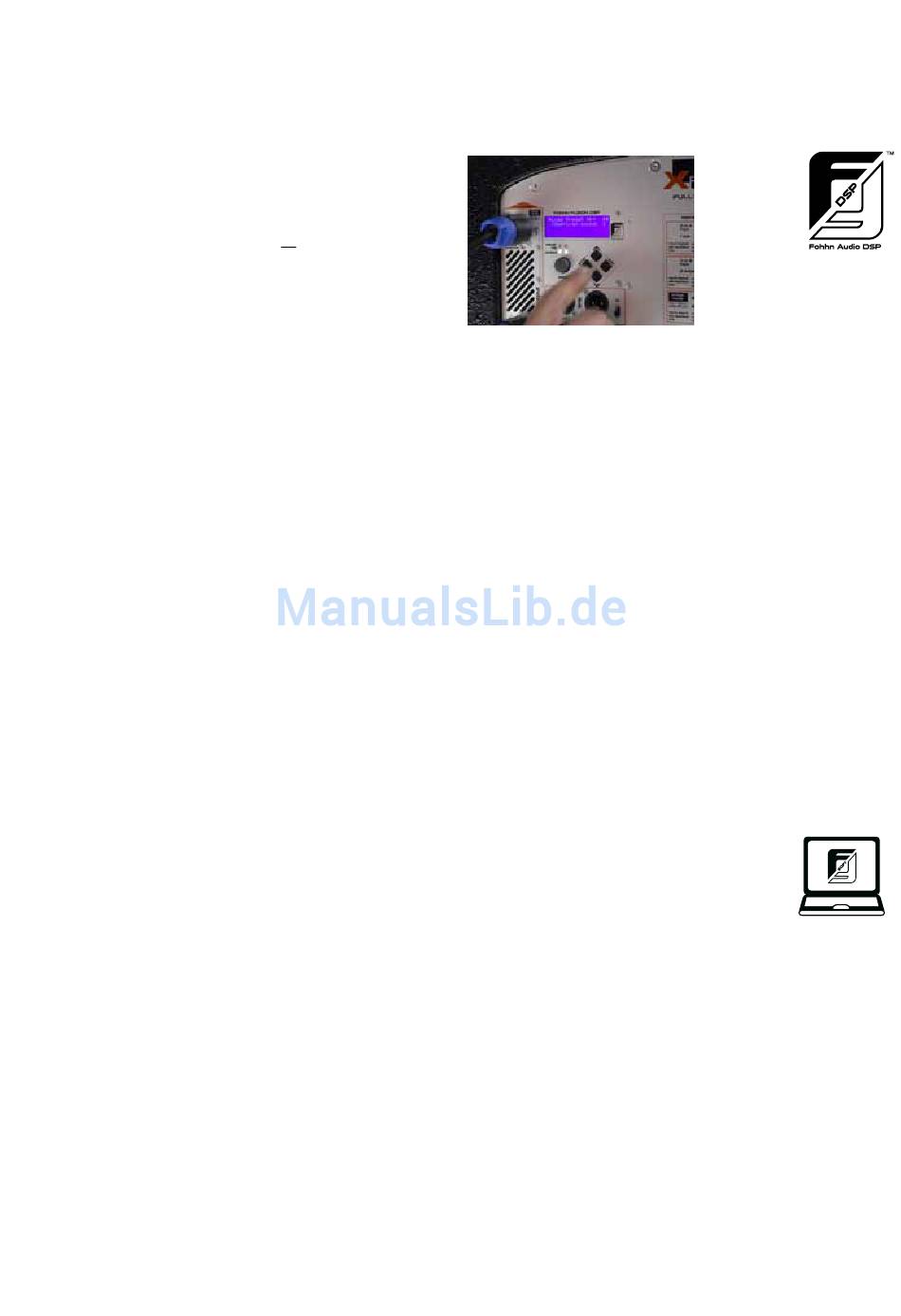

Fohhn Audio DSP
(21) Display
Clearly laid out 4-line display. All information and settings
relating to the Fohhn Audio DSPs can be viewed on this
display.
Important: Display lock protects against unauthorised
access: Setup / Keylock ON/OFF
(20) Select potentiometer
The relevant selected values on the display are modified by
way of this input potentiometer. Pressing the potentiometer
resets the input value to its initial value.
Navigation Keys
(22)
(23)
You can move to the previous or next line by pressing the Up
(24)
(24) / Down (25) buttons. The arrows > < move every time
(25)
these buttons are pressed and indicate which line is currently
active. Pressing the Enter button (22) opens the corresponding
submenu. Press Exit (23) to return to the previous screen.
Fohhn-Net Remote
Control Network
(26) RS-485 network connection sockets
(27)
The network cables are connected to the IN (26) and OUT (27)
sockets.
See also separate user instruction „Software Handling"!
(28) receive LED
LED indicates that the X-Sub active is receiving data.
(29) send LED
LED indicates that the X-Sub active is sending data.
See also separate user instruction „Software Handling"!
Fohhn Audio Soft - Version 3.x necessary!
