Care must be taken when using the machine unit at altitudes of over 1000 m above sea level. Contact our technical department.
We recommend, during the installation phase, that you don't tilt the machine too far, in order to avoid the spilling of oil from the
compressor into the refrigerating circuit what damages the compressor.
As a precaution, we recommend that you leave the unit switched off for several hours, in order to avoid any possible problems.

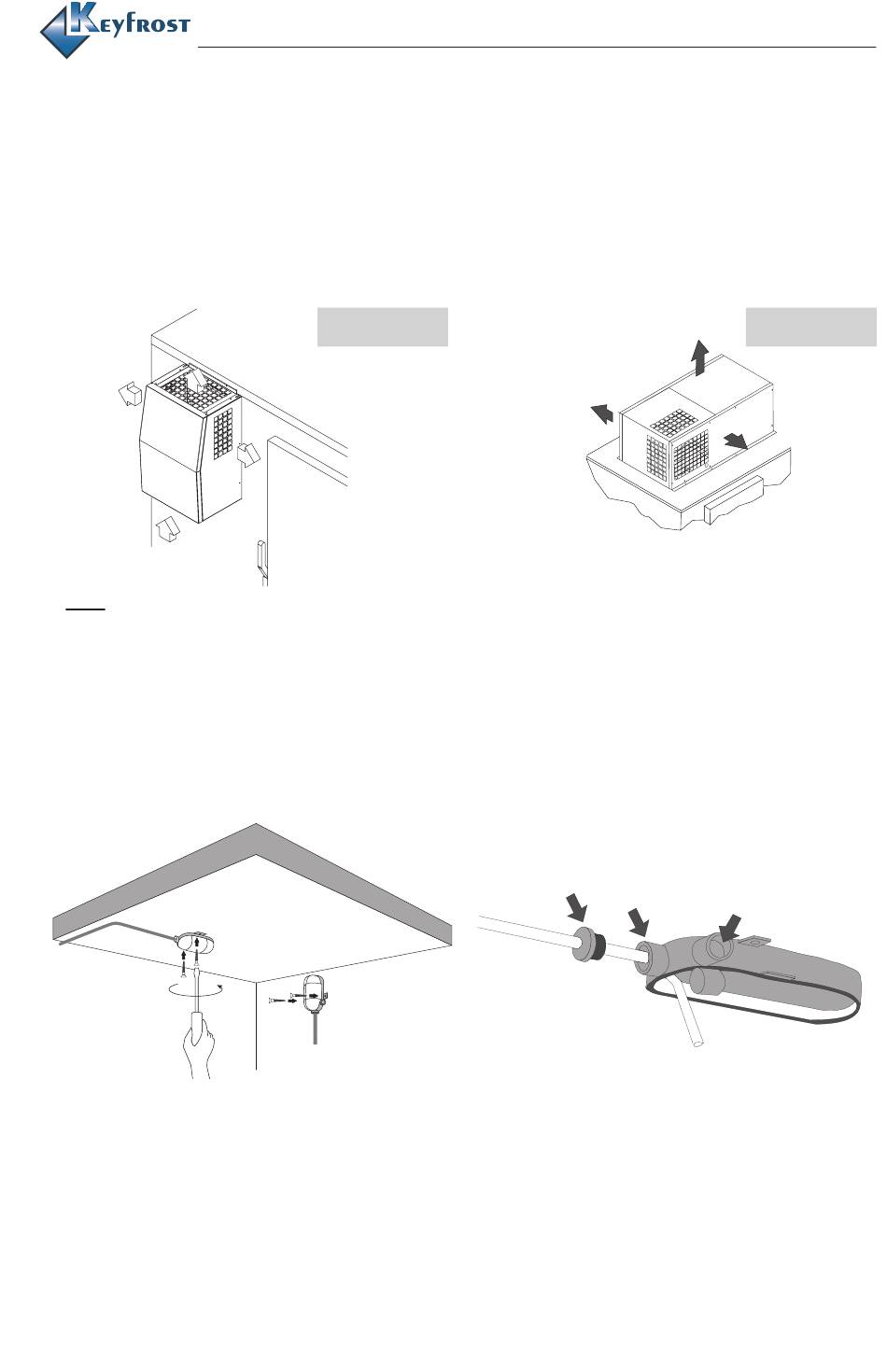

The machine should be positioned in the cold room by a qualified technician and following the steps (A....E) given below. Tools required
are as follows: -hand saw; -screwdriver; drill.
A) assemble the cold room floor, outer walls and ceiling elements not in the vicinity of the area where the machine is to be installed.
B) Make the necessary cuts and holes in the cold room panel, by respecting the formats given in the template.
C) Position the machine at the prepared place. Take care to balance of the machine.
D) Insulate the cuts made on the cold room wall, using filler or silicone.
E) Install the possible accessories (cold room light, door resistor, door microswitch, compensation valve, strip doors) in the best position
for use.
If it's provided, we advise you to connect the overflow pipe of the condensation tray to a flexible hose for water drainage.
500mm
200mm
500mm

Cold room light installation (pre-set machines only)

1.2.3
Install the cold room interior light (supplied) in a position that guarantees the best visibility inside the cold room. The tools required for
installation are as follows:
- screwdriver; - scissors; -drill.
• Fix the light fitting on the ceiling or wall of the cold room using the self-tapping screws provided "1" (fig. 1.2.3.a). If the light fitting is
being fitted to the cold room wall, ensure that the cable leads downwards, as shown.
• Remove the glass and protective grid from the light fitting by loosening the locking screw. Make a hole for the cable through the
stopper "3".
• Make a hole through the membrane of the cable gland "4" most suited to the installation type. Feed the cable marked "LC" (if it's
provided) from the machine through the stopper "3" and the cable gland "4". Pull out any excess cable (fig.1.2.3.b).
• Cut the cable down to size, remove the sheathing from the conductors and connect them to the relavant terminals of the light fitting.
Screw the stopper "3" to the cable gland and the light bulb (supplied) into the light fitting. Replace the light fitting glass and protection
grid.
Fig. 1.2.3.a
1
18
Fig. 1.2.2.a
200mm
Manual
500mm
1000mm
Fig. 1.2.3.b
3
4
Fig. 1.2.2.b
1000mm
4
