CHIEF iCLPFA2 Installationsanleitung Seite 8

iCLPFA2
1
x4
2
1/4" (6.4mm)
A
T x4
3
S x4
9/16" (14.3mm)
2
8
1
x4
V x 4
Place tab
into slot
W x 4
U x4

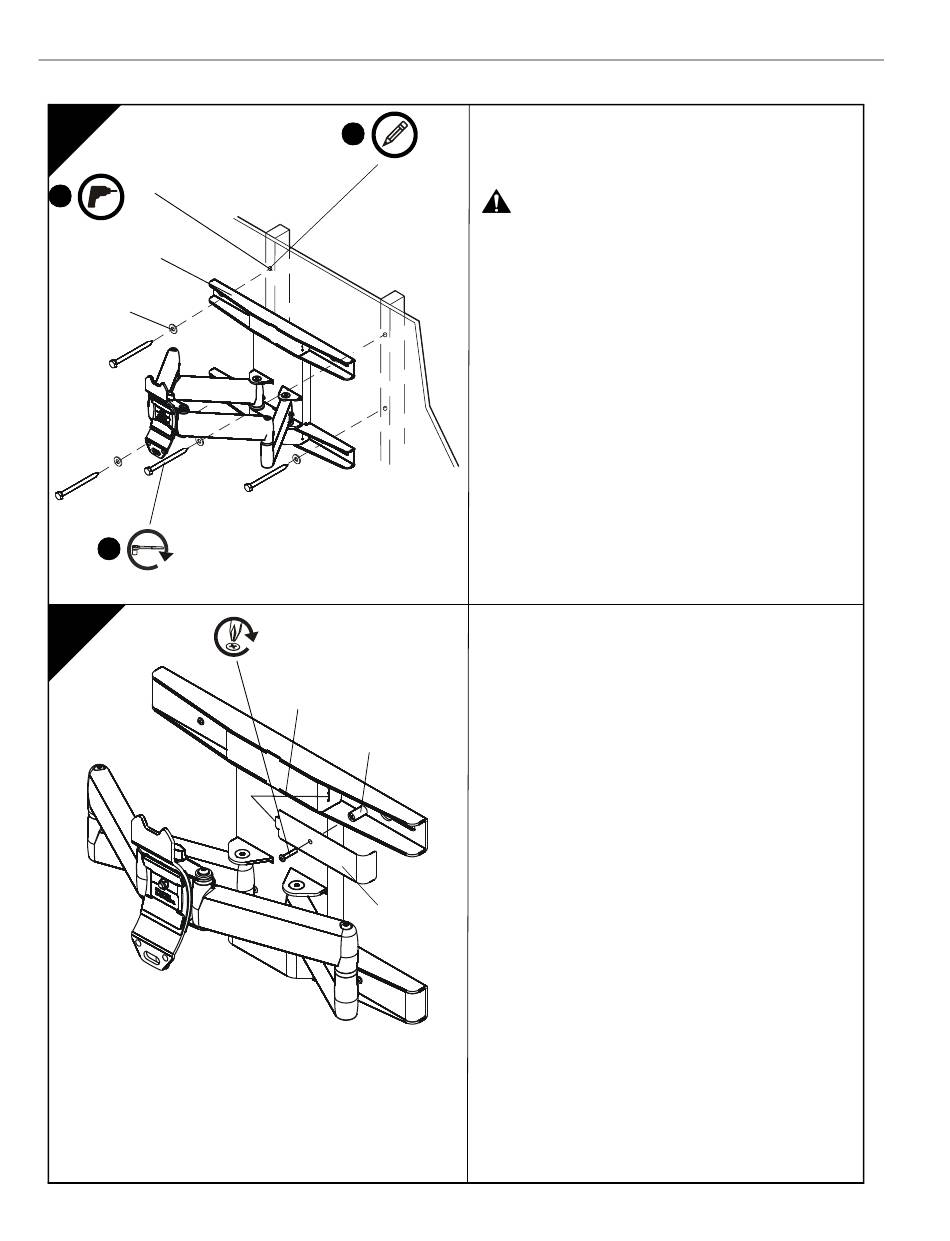

INSTALL ARM ASSEMBLY/WALL PLATE
TO WALL
Wood Installation
WARNING:
Failure to provide adequate structural
strength for this component can result in serious personal
injury or damage to equipment! It is the installer's
responsibility to make sure the structure to which this
component is attached can support five times the
combined weight of all equipment. Reinforce the structure
as required before installing the component.
1. Level arm assembly/wall plate (A) and mark locations of
pilot holes.
2. Drill 1/4" (6.4mm) diameter pilot holes into wood
supports.
3. Install lag screws (S) through flat washers (T), arm
assembly/wall plate (A), into wood supports.
INSTALL COVER PLATES
1. Install four cover plates (U) using four screws (V) and
four spacers (W). Insert screw into cover plate and add
the spacer before inserting the cover plate tab into the
arm assembly/wall plate.
Installation Instructions
