CHIEF iCLPFA2 Installationsanleitung Seite 11

Installation Instructions
5
B x2
E
7/16" (11.1mm)
2
7
M x8
1
x8
L x8 K x8
2

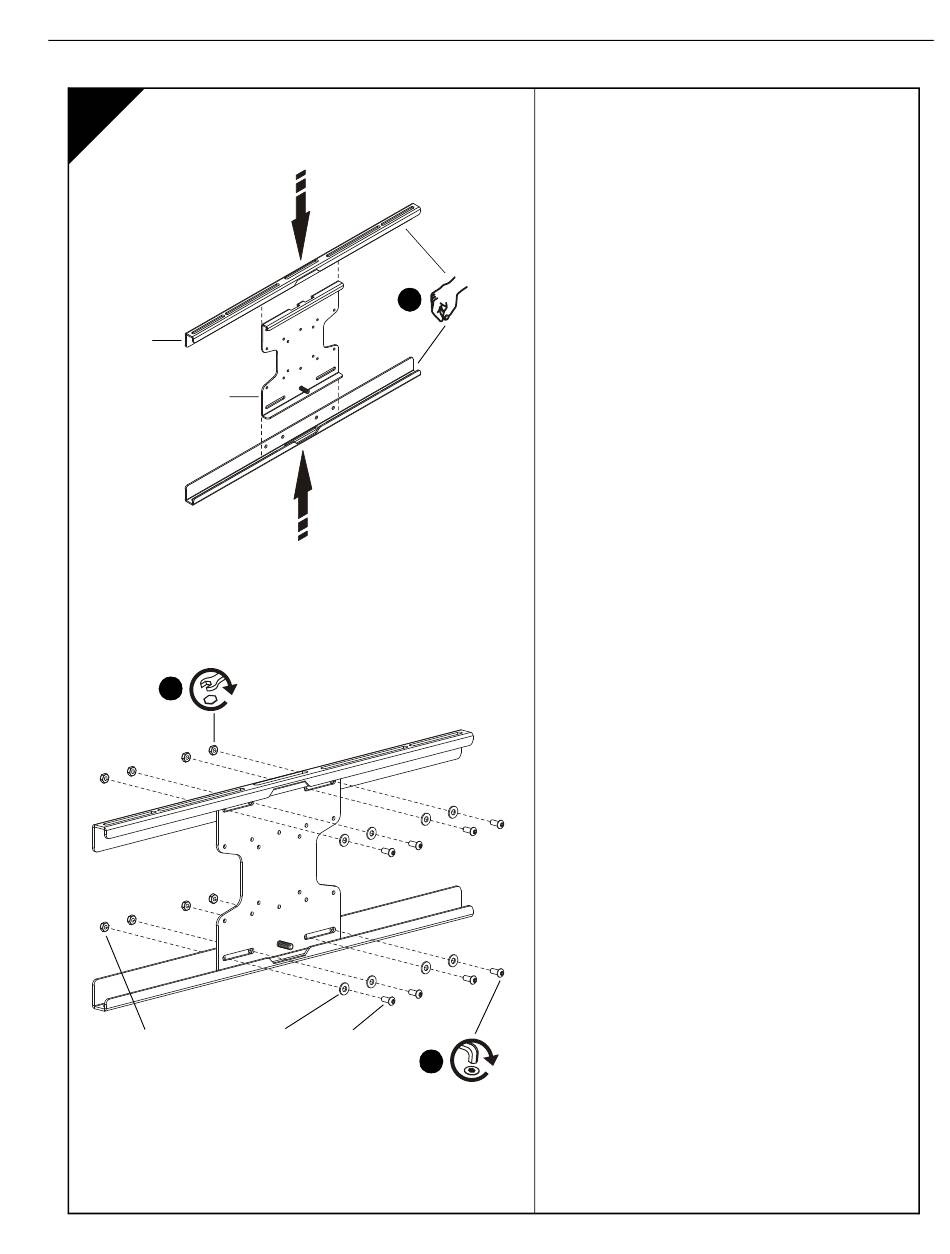

INSTALL BRACKETS TO FACEPLATE
1. Align brackets (B) with faceplate (E) and slide into
position.
2. Using hex key (H), install screws (K) through
washers (L), faceplate (E), bracket (B), into nut (M).
Tighten securely.
x8
iCLPFA2
11
