Specifications / Fields of application
Description..................................................................... ROCAM
Video input.................................................................................. BNC 1 k
Video output ................................................................................ BNC 75
Power consumption ........................................................................... 550 mA
Ambient temperature..............................................................-10 ... +50 °C
Storage temperature ..............................................................-30 ... +50 °C
Dimensions (L x W x H) .................................................. 510 x 415 x 365 mm
Weight inc. battery .............................................................................. 12 kg
Monitor.............................................. monochrome display screen 5.5"
Camera module .................................................................type CCIR b/w
Camera head diameter .....................................................................ø 33 mm
Reel cable length.................................................................................. 36 m
Reel cable diameter .........................................................................ø 4.5 mm
Battery voltage..................................................................................... 18 V
Battery capacity................................................................................... 1.4 Ah
Tube ø ............................................................................................50-150 mm
Tube ø with mini module (optional)............................................40-100 mm
Scope of supply: TV inspection system, guide pieces, instruction manual, video cable (SCART),
battery, power supply unit – electrical connection: 100 to 240 V~ / 50 to 60 Hz
Equipment voltage: 18 V- DC / 670 mA. Equivalent power supply unit as an alternative
Prescribed use
The ROCAM TV inspection system is intended
®
exclusively for inspecting vacant and clean tubes,
hollow bodies and cavities, as stated under
„Specifications / Fields of application". No other use
is permissible.
All applicable standards and regulations must be
complied with.
More specifically, these include:
- Law governing technical equipment (equipment
safety law) and appurtenant regulations
- Low voltage directive
- UVV VBG 1 "General regulations"
- UVV VBG 4 "Electrical installations and operating
equipment"
- Directives governing work in containers and
restricted areas (BG rule 77), directive on display
workstations.
Special safety instructions
Safety gloves must be worn at all times.
The inside of the equipment must not be tampered
with in any way! Internal work is the exclusive
domain of trained personnel only (customer
service)!
The TV inspection system is not authorised for use in
medical applications of any kind!
Do not use force to pull the camera and reel cable
out of the tube!

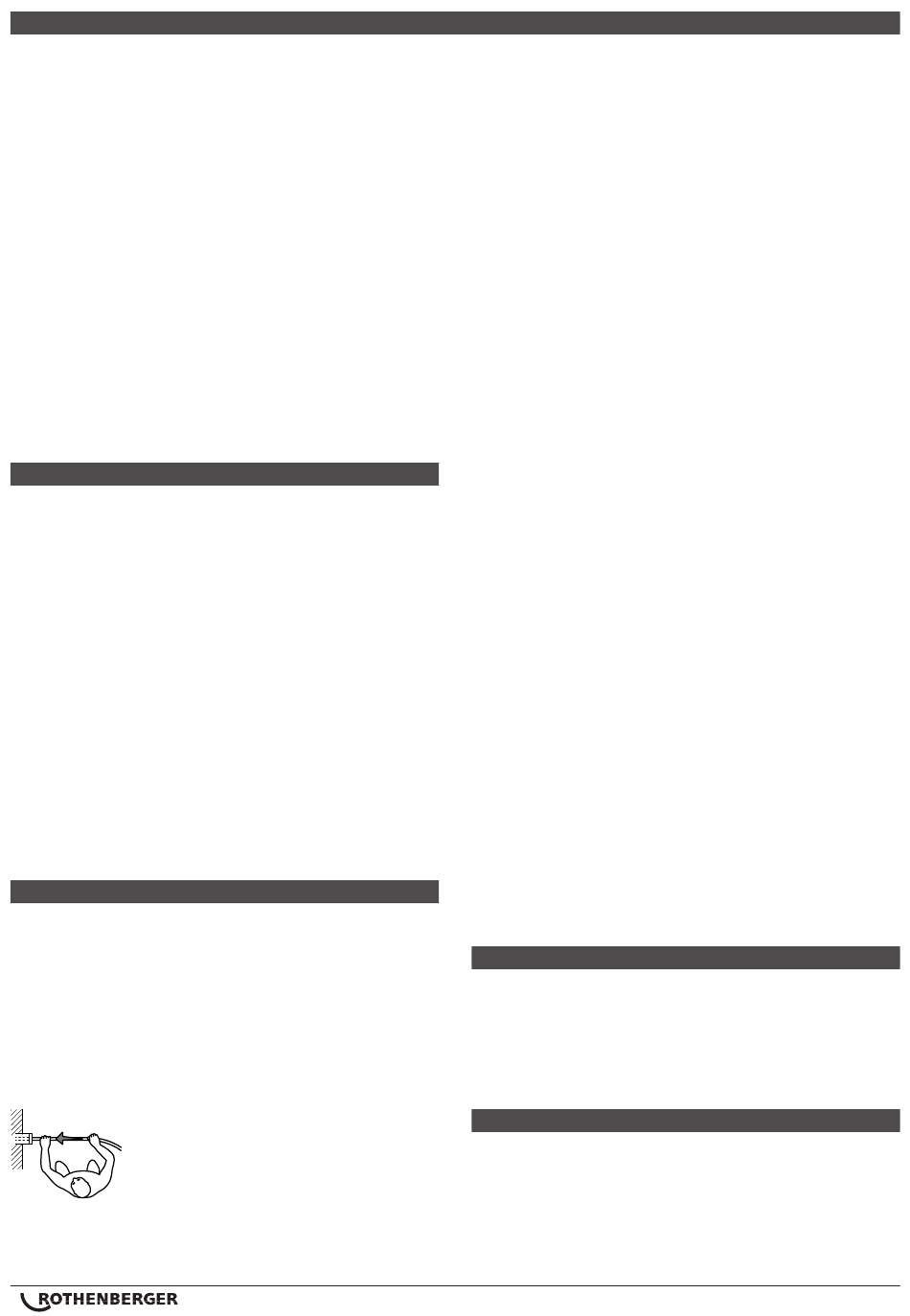

It is essential to stand beside the
tube-cable "axis" to avoid injury!
The reel cable is rigid and is therefore
under mechanical stress! Hold it when
uncoiling it from the reel!
The brightness and/or contrast must be set by
the user and adjusted to individual sight-related
mobile
®
requirements and ambient conditions. The
minimum viewing distance must be 50 cm (average
64 cm) to comply with UVV.
Used removable batteries must not be thrown in
the fire or in the household rubbish. Old batteries
can be taken to your specialist dealer who will
dispose of them in conformity with environmental
regulations.
Do not store batteries with metal objects (danger of
short circuit).
The battery should only be charged in the ROCAM
no other charging devices should be used.
Batteries and chargers should not be opened. They
should only be stored in dry areas and protected
from damp.
Battery fluid may leak from damaged removable
batteries under conditions of extreme load or
extreme temperatures. Any areas that have come
into contact with battery fluid should be washed
immediately with soap and water. If battery fluid
comes into contact with the eyes rinse them
thoroughly for at least 10 minutes and consult a
doctor immediately.
Operating instructions
Do not buckle the reel cable as it may break!
Do not pull the reel cable over sharp edges as they
may damage the cable!
Never aim jets of water on the front (display screen/
control panel) of the equipment!
Power connection
A new battery must be charged prior to using it for
the first time (approx. 7h).
If the battery is running low, the power supply unit
should be connected. The charging process takes
less time if the equipment is switched off.
The power supply unit can be connected
;
®
Fig. A
