2. Quick operation
The robotic pool cleaner HJ1103J is a new type of rechargeable automatic cleaning
a. Connect the cleaner and home power with adapter and charging line to charge the
equipment with the function of self-beaching when the battery is running out.
battery.
Please read this manual carefully before use so that you can use it correctly.
* Clean the charging port before charging.

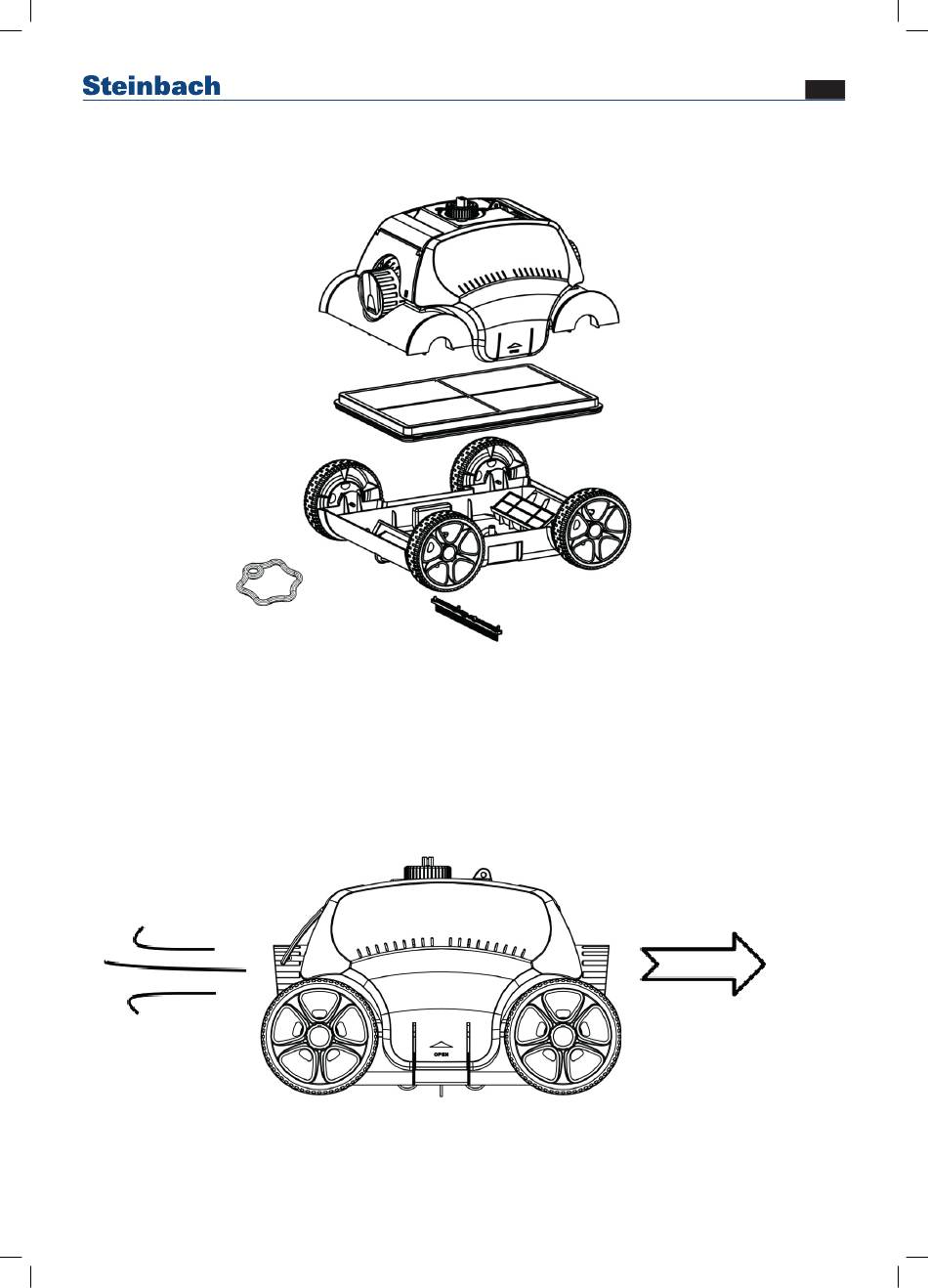

II. Appearance characteristics & structure
Abbildung 1 / Illustration 1
* Red charging indicator light indicates the battery is charging.
* Green charging indicator light indicates charging is finished.
* Turn the switch knob to OFF before charging.
Swing plate
b. Turn the switch knob to ON after putting it into water then the cleaner is power-on and
the indicator light is steady blue. The cleaner begins to work about 15 seconds later
while the blue light flashes.
c. The robot reverse direction automatically once touching the pool wall (or rise up-ahead
and reverse for pools with curved floor), and blue light flashes, then the indicator light
turns into green for a few seconds for self-adaption, after that the indicator turns into
blue again.
Floating handle
d. The yellow light flashes three times after completing the working cycle and then the
cleaner continues running about 2 minutes to pull over to pool edge, after that the robot
runs into standby mode and the indicator light is steady yellow.
e. Power-off operation: switch off the knob into red light till the robot power-off. Please
always clean the filter tray after use.
III. Specifications
3. Functions and adjustment of nozzles
1. Name: Cleaner
There are two nozzles on the cleaner, one of them opens once the other closes. Water
Abbildung 2 / Illustration 2
flows out through the open nozzle to thrust the cleaner to move forward. Adjust the nozzle
2. Model: HJ1103
by turning it to control the moving route.
3. Working voltage: 12.6V
4. Power: 50W
5. Working Cycle: 100min
6. Rated input voltage of adapter: 100Vac-240Vac
7. Input power of adapter: 47Hz-63Hz
8. Rated output current of adapter: 1.8A
9. Rated output voltage of adapter: 12.6V
10. Charging time: 5-6h
2
4
1
061013_v1909 ALL
Top cover
Filter tray
Chassis
Brush
