MAXI
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The installation manual can be downloaded by going
WARNING
to the "Downloads" section of Erreka website:
http://www.erreka-automation.com

Electrical wiring

A: Main power supply
B: Closing photocells
C: Pushbutton / wall key
D: LUMI flashing light
E: Operator (motor / encoder)

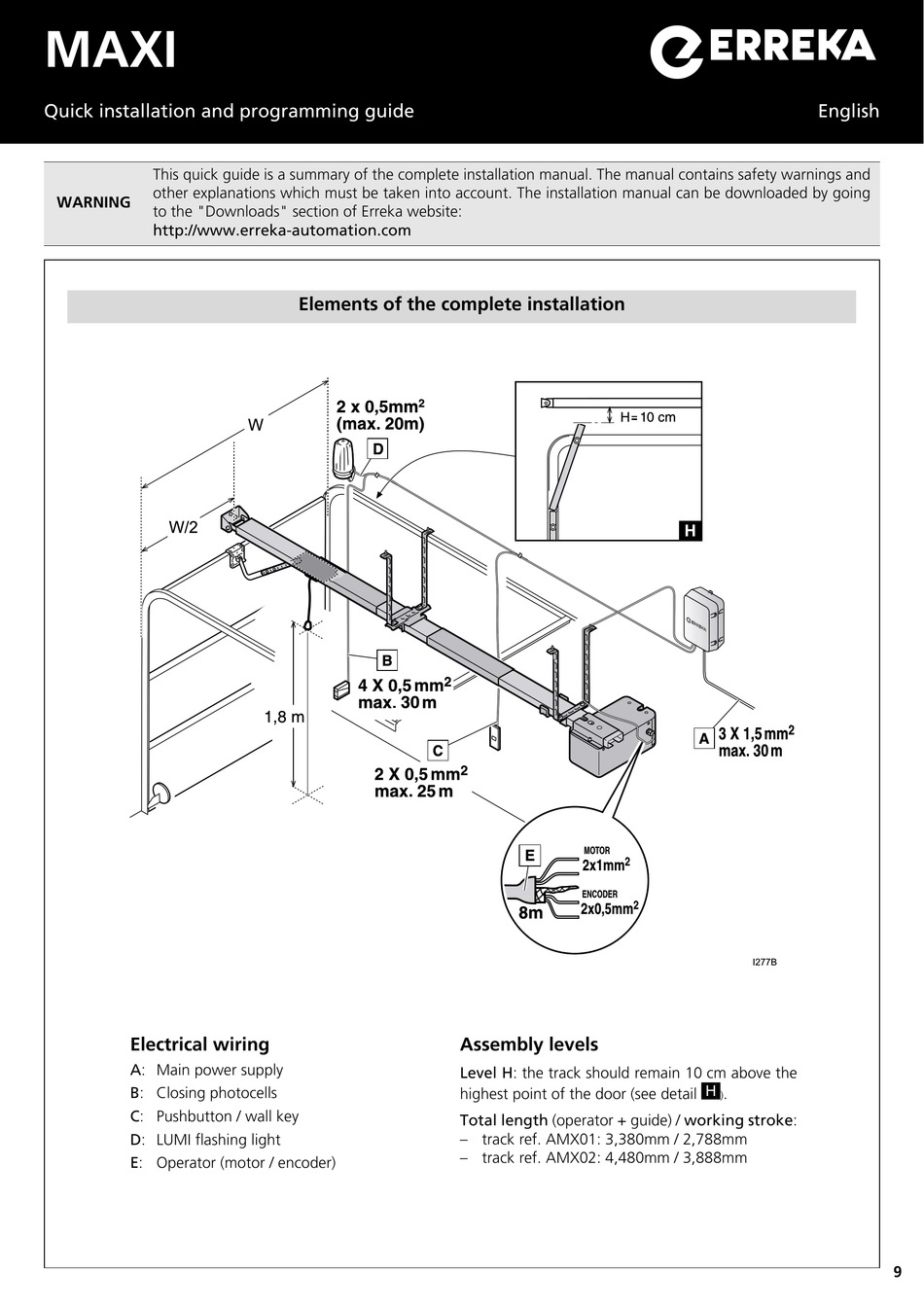

Elements of the complete installation

Assembly levels
Level H: the track should remain 10 cm above the
highest point of the door (see detail H
Total length (operator + guide) / working stroke:
– track ref. AMX01: 3,380mm / 2,788mm
– track ref. AMX02: 4,480mm / 3,888mm
English
I277B
.
)
9
