impeller.
When cleaning the impeller, do not immerse the motor in a liquid.
Ensure that balancing weights of the impeller are in appropriate position.
Ensure that the casing does not block the impeller.
Allow the impeller to dry before mounting the fan.

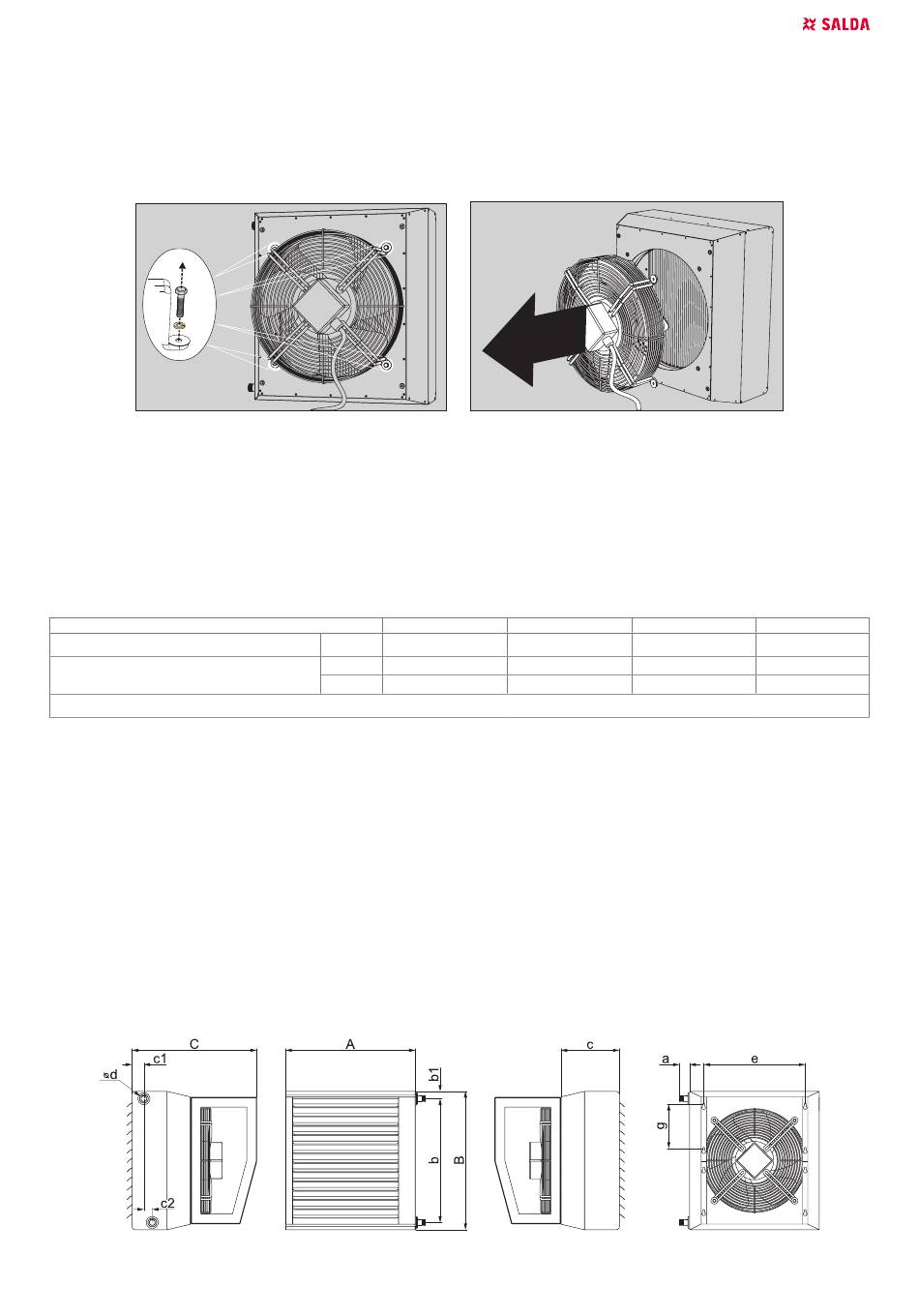

Mount the fan back to the unit (Pic. 5).
If the fan can not be dismounted, it can be cleaned while mounted to the unit casing. Clean the interior of the impeller, external surfaces of the
blades and the motor.
If the fan does not switch on after the maintenance works, contact the manufacturer.
WATER HEATER
Water heater should be inspected and cleaned at least 2 times in a year.
Ensure that the unit is water-tight and has no signs of corrosion. In case of any faults, remove it. If the faults can not be corrected, contact the
manufacturer.
Accumulated deposits on the surface of water heater can be removed using vacuum cleaner.
SELECTION OF POWER SUPPLY CABLE AND PROTECTIVE DEVICE
Cross-section of the power supply cable
Circuit breaker*
* automatic switch with characteristic C
START-UP
Start-up of the unit shall be performed only by trained and qualified personnel.
The unit is ready for work after the supply voltage, selected external accessories are connected and the water heater is connected to the water
heating system.
Before start-up, make sure that power supply circuit corresponds to the specifications indicated in the label.
Before start-up, make sure that the unit is connected to the mains in accordance with the wiring diagram shown in this document and under the
cover of the fan connection box.
Before start-up of the unit, make sure that the above instructions for safety and installation are applied.
Before start-up of the unit, make sure that the water connection is hermetic.
Upon start-up of the unit, make sure that the motor rotates evenly, without vibration and outside noise.
Upon start-up of the unit, make sure that the air flow generated by the unit and fan rotation direction match the direction indicated on the casing.
The current used by the unit shall be tested for compliance with the range of maximum current indicated in this document.
DIMENSIONS
SAV v2019.06
SAV 2000
[mm²] 3x0,5
Poles 1
[A] 1,6
SAV 4000 SAV 6000
3x0,5 4x0,5 + 2x0,5
1 3
6,0 3,0
SAV 9000
4x0,5 + 2x0,5
3
4,0
EN | 5
