Assembly instructions

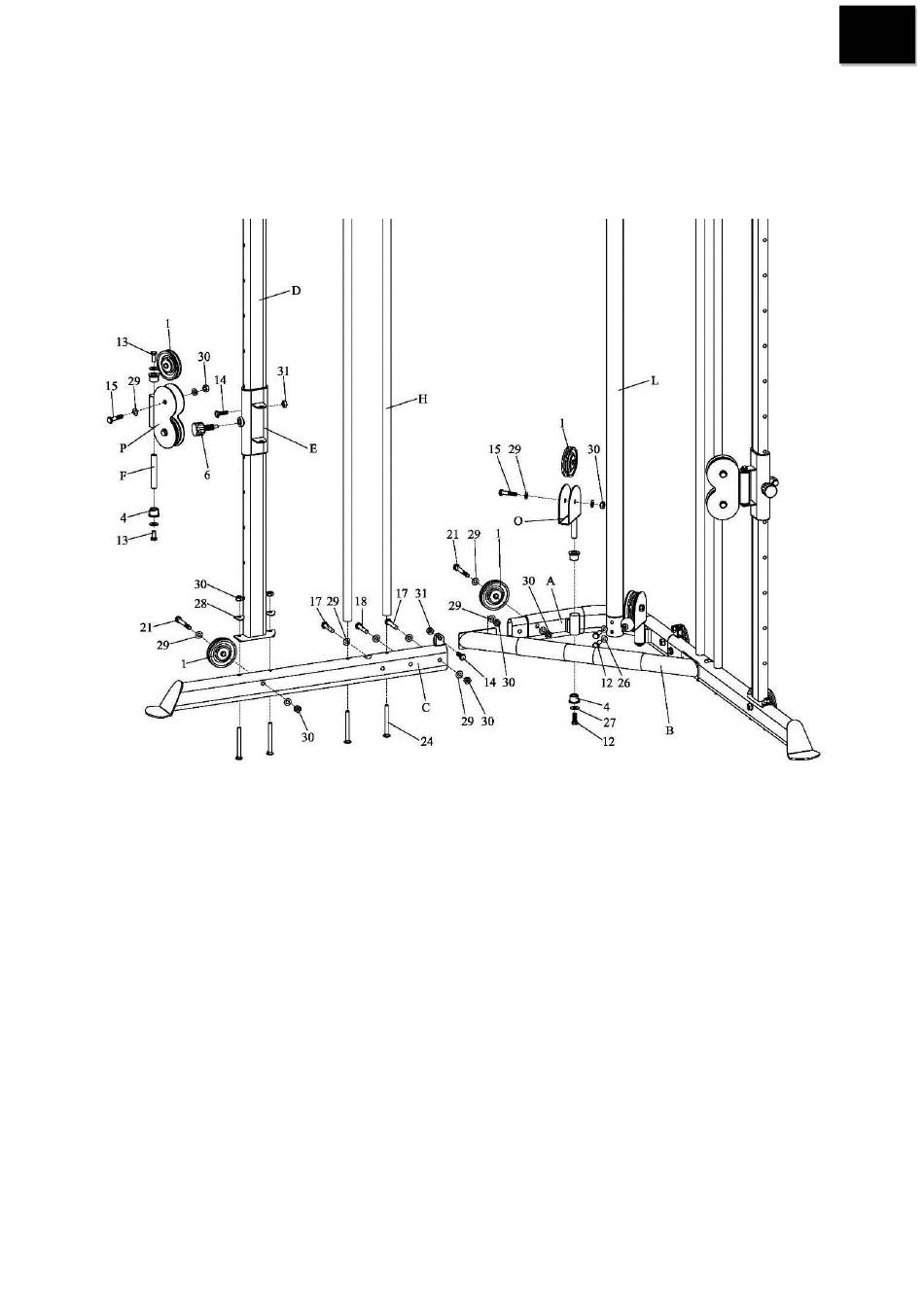

STEP 1
1. Attach straight base (C) to joint base (A) with (17), (29) and (30).
2. Attach joint tube (B) to straight base (C) with (17), (18), (29) and (30).
3. Attach swivel pulley block I (O) to joint base (A) with (4), (12) and (27).
4. Attach upright frame (D) and guide rod (H) to straight base (C) with (24), (28) and (30).
5. Attach swivel pulley block II (P) to adjustment tube (E) with axes (F), (4), (29) and (13), then slide
adjustment tube (E) down upright fame (D), secure it with (6).
6. Attach joint rod (L) to joint base (A) with (12) and (26).
