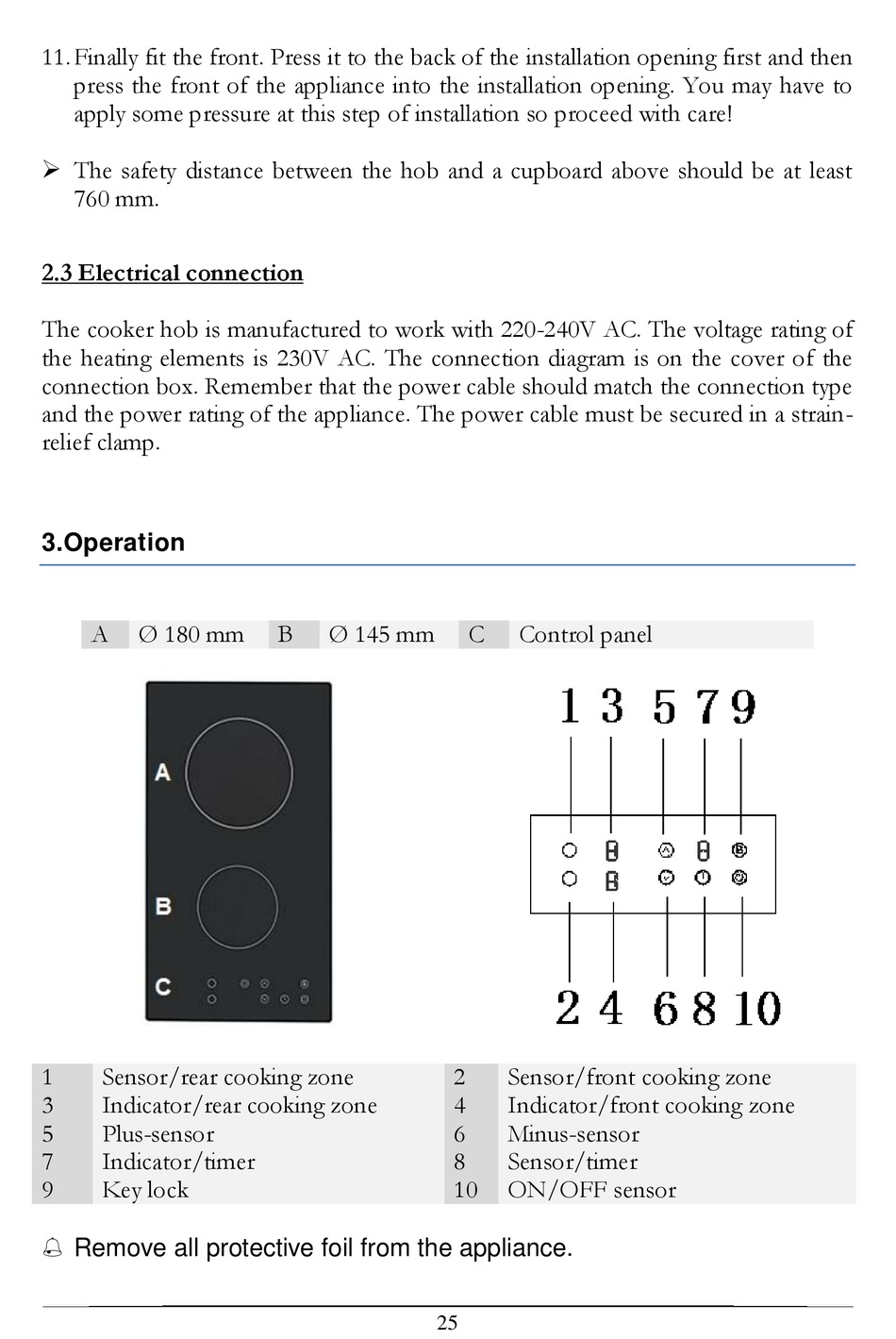

11. Finally fit the front. Press it to the back of the installation opening first and then
press the front of the appliance into the installation opening. You may have to
apply some pressure at this step of installation so proceed with care!
 The safety distance between the hob and a cupboard above should be at least
760 mm.

2.3 Electrical connection

The cooker hob is manufactured to work with 220-240V AC. The voltage rating of
the heating elements is 230V AC. The connection diagram is on the cover of the
connection box. Remember that the power cable should match the connection type
and the power rating of the appliance. The power cable must be secured in a strain-
relief clamp.

3.Operation

A Ø 180 mm
1 Sensor/rear cooking zone
3 Indicator/rear cooking zone
5 Plus-sensor
7 Indicator/timer
9 Key lock
 Remove all protective foil from the appliance.
B Ø 145 mm
25
C Control panel
2 Sensor/front cooking zone
4 Indicator/front cooking zone
6 Minus-sensor
8 Sensor/timer
10 ON/OFF sensor
