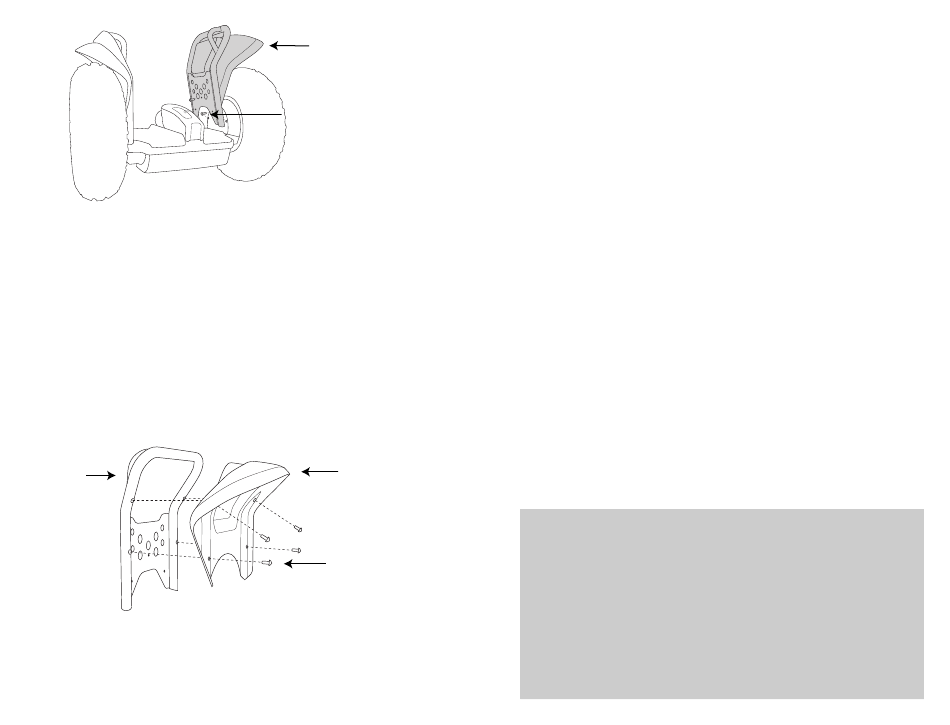

Figure 1. Removing or Installing the Fender / Frame Assembly
4. To remove the Fender from the Fender Frame, remove the (4) 18mm fasteners
using a 4mm hex wrench. See Figure 2.
5. To re-install the Fender to the Fender Frame, thread the (4) 18mm long
fasteners, included with this kit, through the Fender into the Fender Frame. Using a
4mm hex wrench, tighten until the head of the fastener is seated in the grommet.
Once seated, turn another ½ to 1 full turn.
6. To re-install the Fender & Frame Assembly to the PT, thread the (3) 28mm long
fasteners, included with this kit, through the Fender & Frame Assembly into the
gearbox cover. Using a 4mm hex wrench, torque to 6.0 N-m (4.4 ft-lbf).
Fender Frame
Figure 2. Removing or Installing the Fender and Fender Frame.
Fender & Frame Assembly
Fasteners, 28mm long
Installation torque: 6.0 N-m
(4.4 ft-lbf)
Fender
Fasteners, 18mm long
Installation: tighten until the
head of the fastener is seated
in the grommet
4
NOTE
Be sure to check the tightness of all fasteners routinely
QUESTIONS?
If you are missing a part or have any questions, please contact your
local Segway Authorized Dealer. To locate the dealer nearest you, go to
www.segway.com. Updates to this document are also available at
www.segway.com.

LIMITED WARRANTY

This product is an "Accessory" covered by the Segway Personal Transporter
Limited Warranty (copy delivered with this kit).
5
