G
ATTENTION
If need suspending installation, the installation bracket should accord with all technical
requirements. The installation wall should be strong enough or actions to reinforce should be
taken. The connection between bracket and wall, bracket and the air conditioner should be firm,
stable and reliable. In case of any doubts or uncertainty do not attempt to install the unit but
have the support calculated and engineered by a skilled engineer.

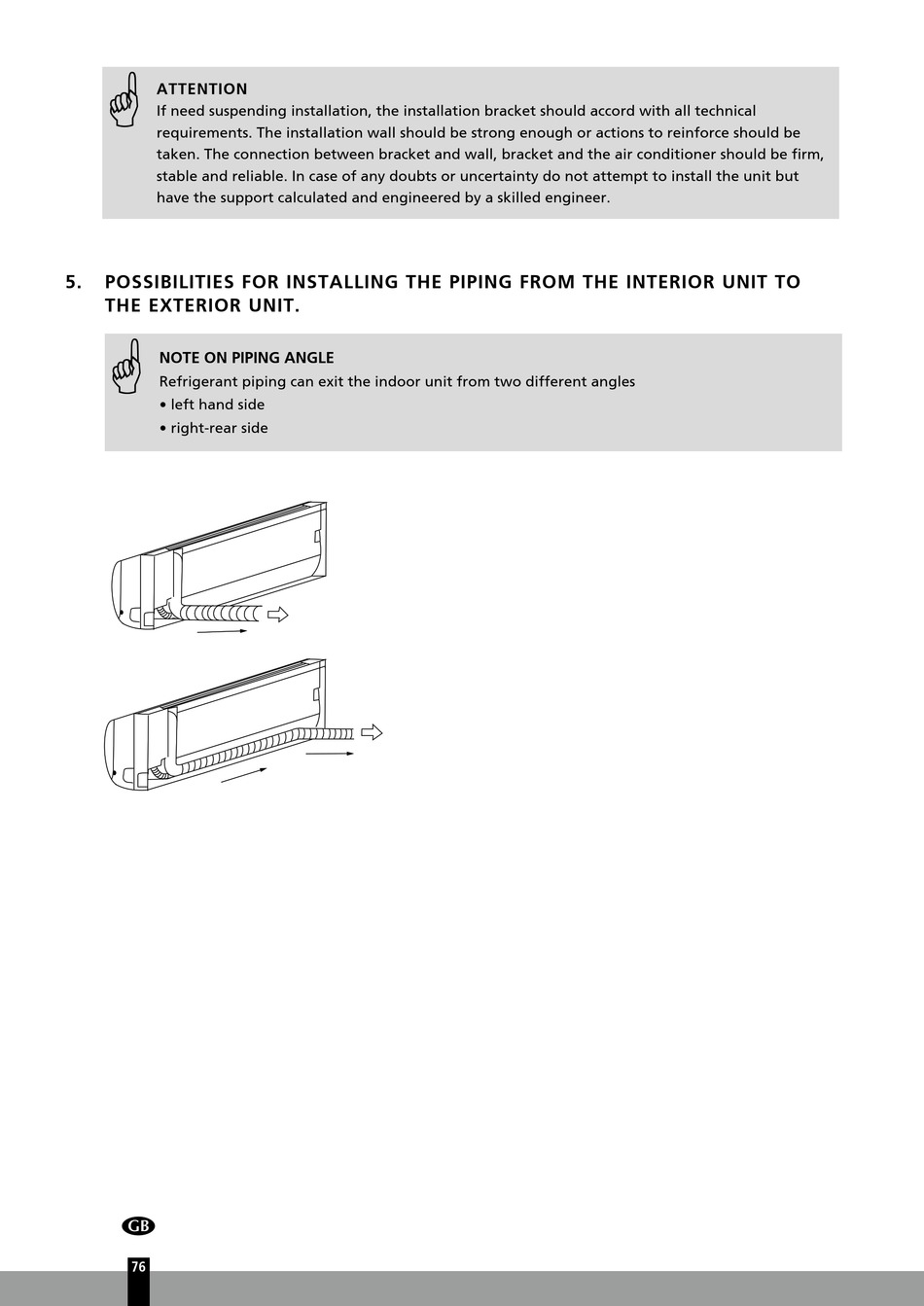

5. POSSIBILITIES FOR INSTALLING THE PIPING FROM THE INTERIOR UNIT TO
THE EXTERIOR UNIT.
G
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor unit from two different angles
• left hand side
• right-rear side
