Step 2. Cord Connections
Qty. Powerware
Part Number
2 60420055
1 05147305
1.
If you are using a power distribution bus (PDB), plug
the equipment into the appropriate UPS output
receptacles using the interconnect cords supplied
with the IBM rack.
NOTE DO NOT protect laser printers with the UPS because
of the exceptionally high power requirements of the heating
elements.

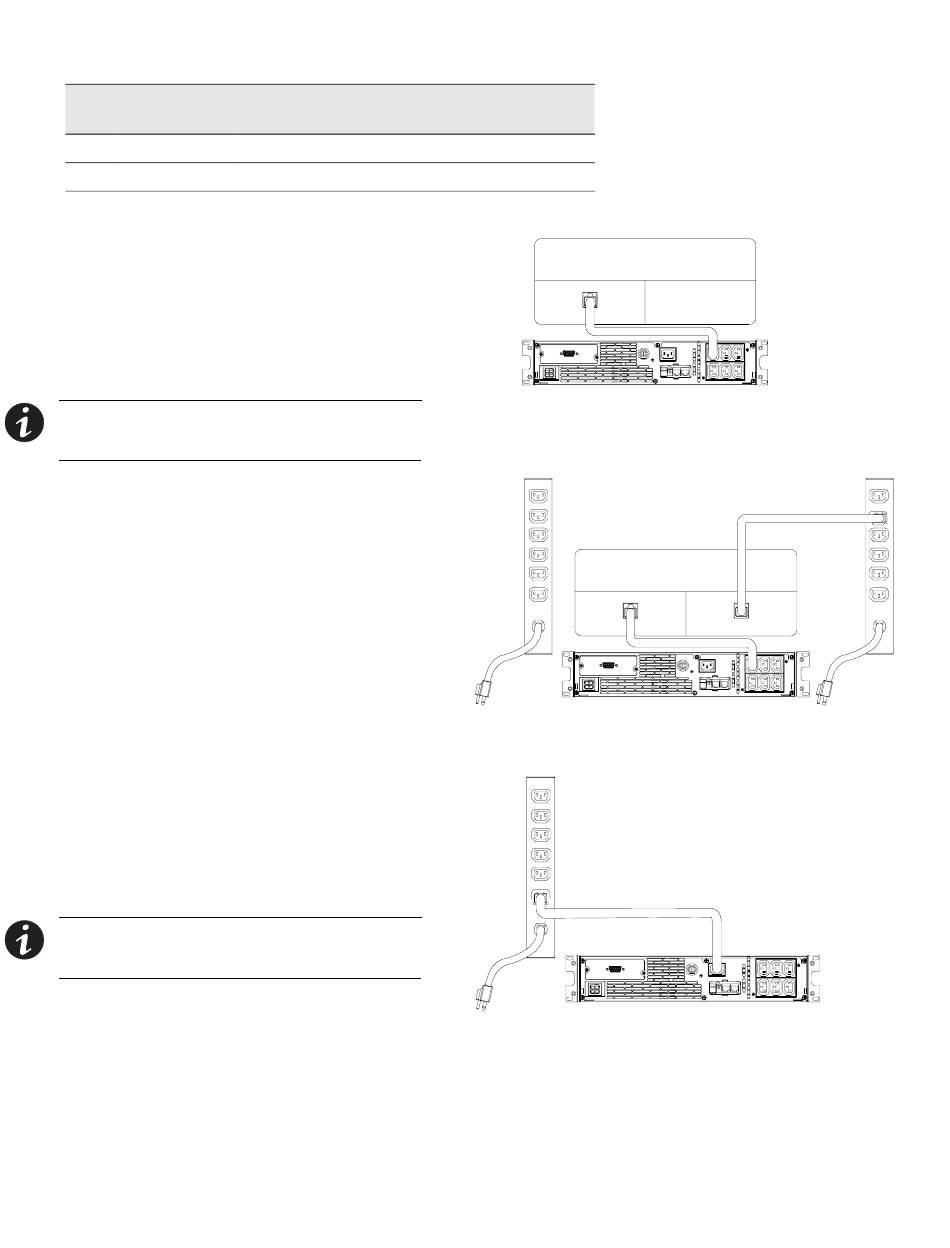

If you are using two PDBs for redundancy, plug in
the equipment as shown.
2.
Plug the output power cord (IEC 320-C13 to C-14)
into the output connector on the UPS rear panel.
3.
Plug the other end of the output power cord into the
PDB.
NOTE If you are using more than one UPS in a rack, verify
that the UPS output power cords are plugged into separate
PDBs.
For additional P18 rack connection information, go to
www.oem.powerware.com/ibm-ups/pdf/p18details.pdf
4
. To complete startup, refer to Powerware 5125
Two-in-One (1000–1500 VA) User's Guide.
Powerware 5125 (9910 P18) Quick Start for IBM
®
Description
IEC 320-C13 to C14, 10A Equipment Power Cords (6 ft/1.8m)
Powerware 5125 Two-in-One (1000–1500 VA) User's Guide
.
