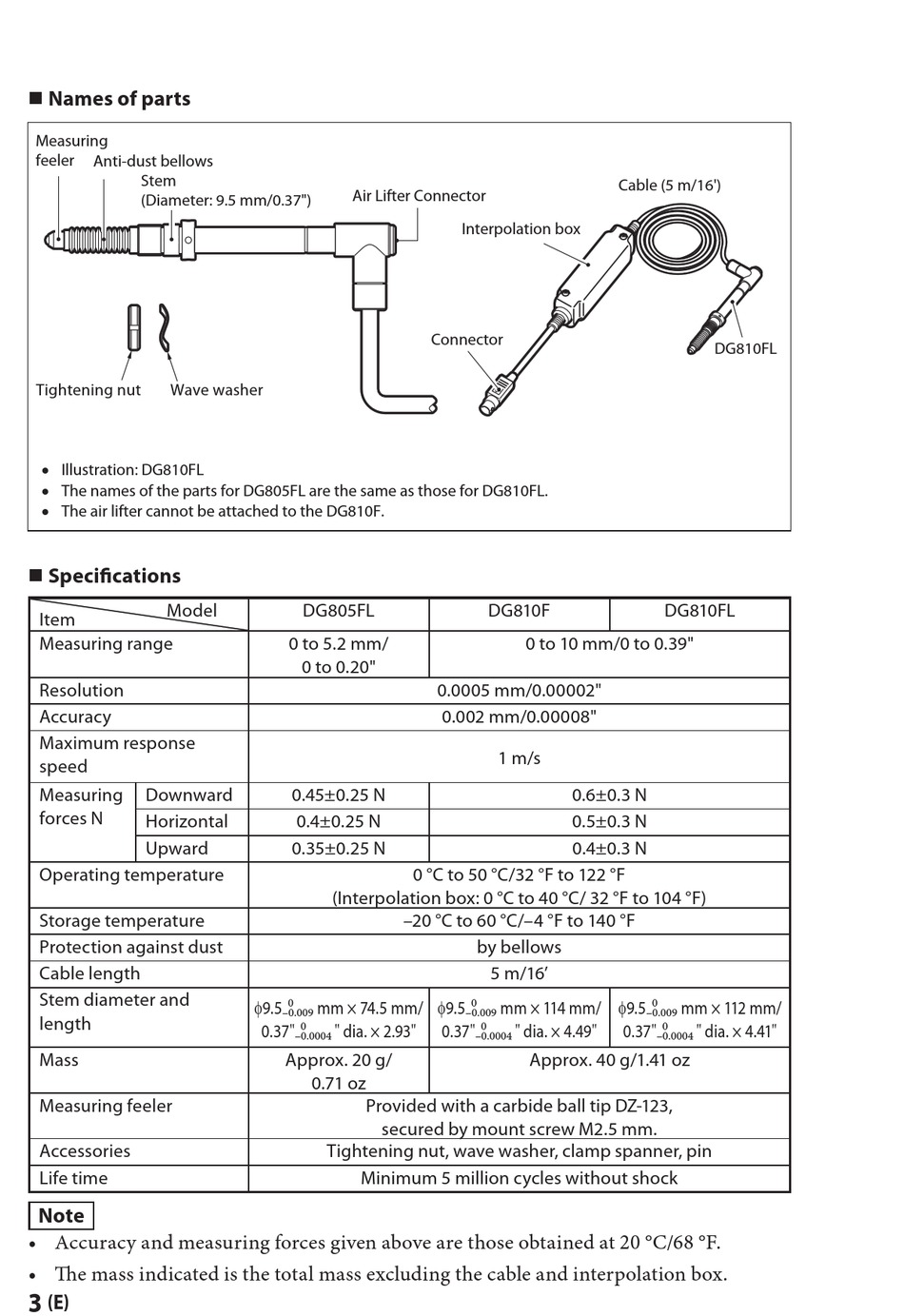

Names of parts
Measuring
feeler
Anti-dust bellows
Stem
(Diameter: 9.5 mm/0.37")
Tightening nut
Wave washer
Illustration: DG810FL
The names of the parts for DG805FL are the same as those for DG810FL.
The air lifter cannot be attached to the DG810F.
Specifi cations
Model
Item
Measuring range
Resolution
Accuracy
Maximum response
speed
Measuring
Downward
forces N
Horizontal
Upward
Operating temperature
Storage temperature
Protection against dust
Cable length
Stem diameter and
length
Mass
Measuring feeler
Accessories
Life time
Note
• Accuracy and measuring forces given above are those obtained at 20 °C/68 °F.
• Th e mass indicated is the total mass excluding the cable and interpolation box.
3
(E)
Air Lifter Connector
DG805FL
0 to 5.2 mm/
0 to 0.20"
0.45±0.25 N
0.4±0.25 N
0.35±0.25 N
0 °C to 50 °C/32 °F to 122 °F
(Interpolation box: 0 °C to 40 °C/ 32 °F to 104 °F)
–20 °C to 60 °C/–4 °F to 140 °F
φ9.5
0
mm × 74.5 mm/
–0.009
0
0.37"
" dia. × 2.93"
–0.0004
Approx. 20 g/
0.71 oz
Provided with a carbide ball tip DZ-123,
secured by mount screw M2.5 mm.
Tightening nut, wave washer, clamp spanner, pin
Minimum 5 million cycles without shock
Interpolation box
Connector
DG810F
0 to 10 mm/0 to 0.39"
0.0005 mm/0.00002"
0.002 mm/0.00008"
1 m/s
0.6±0.3 N
0.5±0.3 N
0.4±0.3 N
by bellows
5 m/16'
φ9.5
0
mm × 114 mm/
–0.009
0
0.37"
" dia. × 4.49"
–0.0004
Approx. 40 g/1.41 oz
Cable (5 m/16')
DG810FL
DG810FL
φ9.5
0
mm × 112 mm/
–0.009
0
0.37"
" dia. × 4.41"
–0.0004
