Installation to Single Wood Stud Wall

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs.
Installers are responsible to provide hardware for other types of mounting situations (not evaluated by UL).

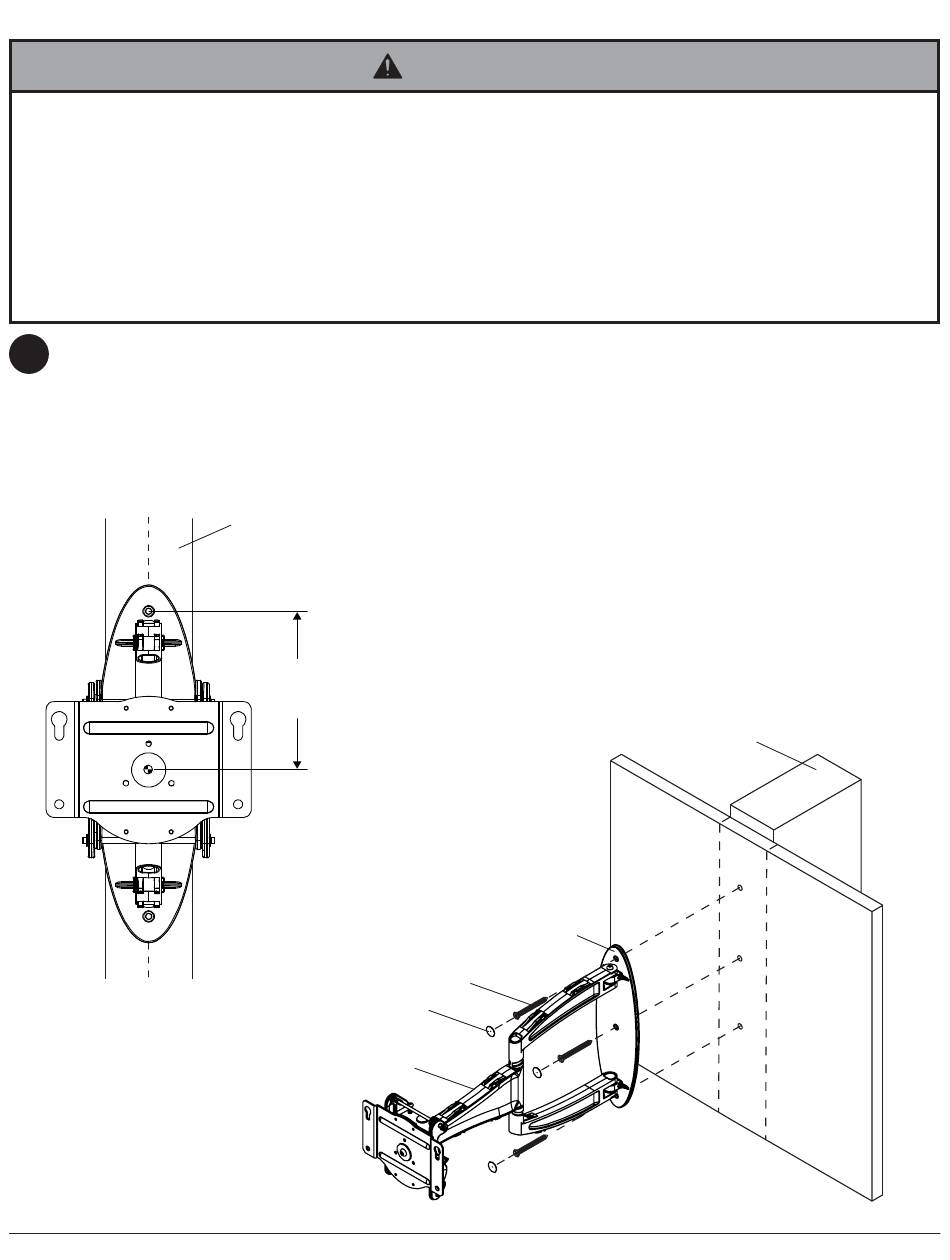

Using a stud fi nder, locate and mark the edges of the wood stud. Use of an edge to edge stud fi nder is highly
1
recommended. Use a level to draw a vertical line down the center of the stud and use wall plate (A) as template to
mark center of holes along the vertical line. The top mounting holes should be 7.54" (192 mm) above the desired
screen center as shown in fi gure 1.1. Drill three 5/32" (4 mm) dia. holes to a depth of 2.5" (64 mm). Attach wall arm
(A) to wall with three wood screws (C) using #3 phillips screwdriver bit (L) as shown in fi g. 1.2. Level plate, then
tighten all fasteners.
Insert three fastener caps (F) into wall plate mounting holes.
CS
CS = CENTER OF SCREEN
fi g. 1.1
WARNING
WOOD STUD
7.54"
(192 mm)
F
A
WALL PLATE
C
5 of 46
ISSUED: 10-30-09 SHEET #: 095-9297-2 12-04-09
WOOD STUD
fi g. 1.2
