● Insert the battery (1) into the guides on
the charger (2) and push it to the stop.
The LED on the charger (3) illuminates
green.
The LEDs on the battery (4) illuminate
green to indicate the charge state.
● When the LED on the charger (3) and
the LEDs on the battery (4) no longer
illuminate, remove the mains plug from
the socket.
The battery is fully charged.
● Remove battery from charger and insert
it in the battery compartment. (
8.5 LEDs on the battery
Displaying charge state:
● Press the button (1). The LEDs
illuminate green for approx. 5 seconds
to indicate the charge state.
● If the right LED flashes green, charge
the battery. ( 8.4)

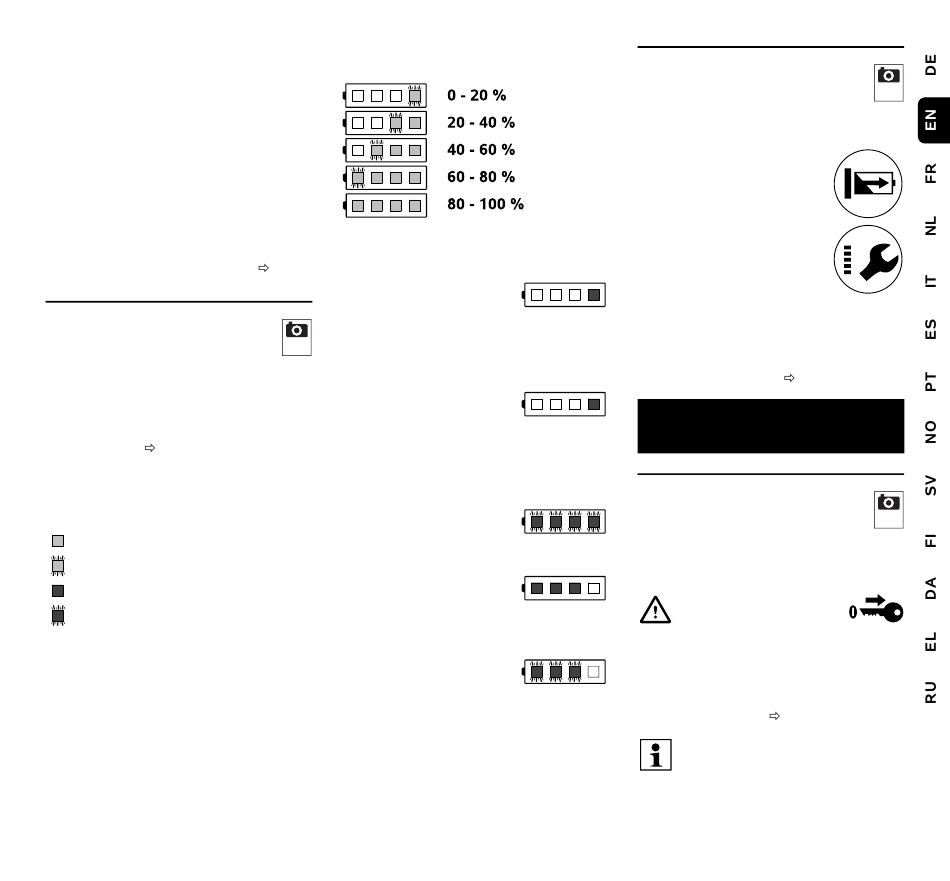

LED displays:
The LEDs can illuminate or flash green or
red.
LED illuminates green.
LED flashes green.
LED illuminates red.
LED flashes red.
Green LEDs indicate normal operation,
red LEDs indicate a malfunction.
During charging:
Illumination and flashing of the LEDs
indicate the charging status.
During charging, the momentary charge
capacity is indicated by a green flashing
LED.
0478 131 9940 B - EN
When charging is complete, the LEDs
extinguish automatically.
Faults
One LED illuminates red
8.3)
During charging:
Battery is too hot or too
cold for the charging
process to start. Once the battery has
10
cooled down or warmed up, the charging
procedure starts automatically.
During operation:
Battery is overheated.
Machine switches off –
remove the battery from the lawn mower
and allow to cool for a few minutes.
Four LEDs flash red
The battery is defective
and must be replaced.
Three LEDs illuminate red
The lawn mower is
overheated – allow it to
cool down.
Three LEDs flash red
The lawn mower is
defective and must be
checked by a specialist
dealer. STIHL recommends STIHL
specialist dealers.
8.6 LED on the charger
The LED (3) indicates the charger
status. It can illuminate green or
flash red.
The LED illuminates green
and the LEDs on the battery
illuminate or flash green:
The battery is charging.
The LED flashes red:
There is no electrical contact
between the battery and the
charger, or there is a fault in
the battery or in the charger.
If the LED illuminates green and 1 LED on
the battery illuminates red, the battery is
too warm or too cold.
● Remedy the faults. ( 20.)
9. Controls

9.1 Safety plug

The lawn mower can only be
operated when the safety plug is
inserted in the socket behind the battery
compartment.
Risk of injury!
The safety plug must be
removed prior to
performing any work on the
machine, particularly before
transport, maintenance or cleaning
work, as well as before inspecting
the machine. ( 4.)
The cover of the battery
compartment is held in the closed
position by two magnets.
