1

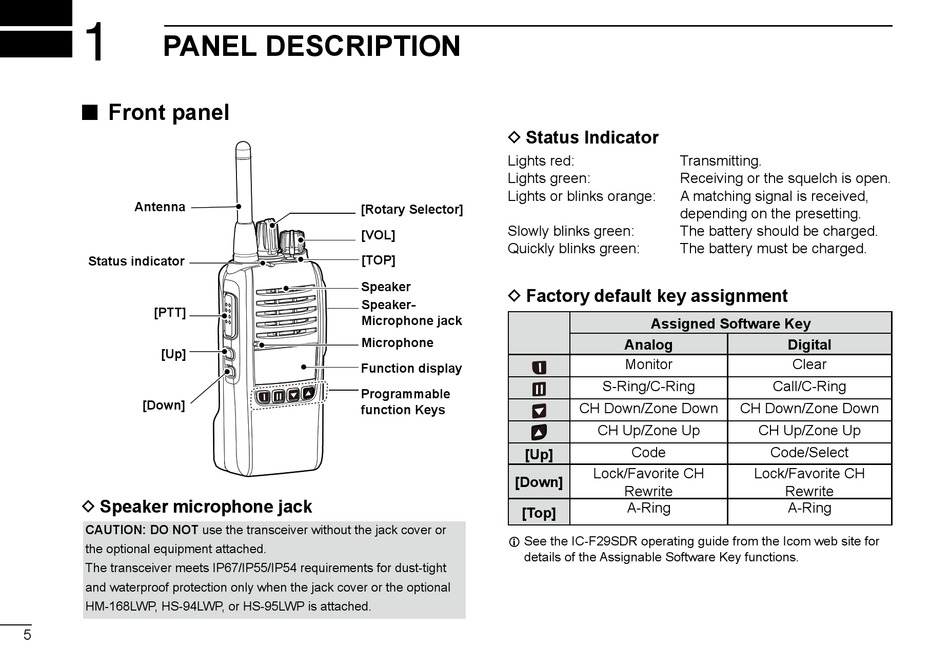

PANEL DESCRIPTION

■ Front panel

Antenna
Status indicator
[PTT]
[Up]
[Down]
D Speaker microphone jack
CAUTION: DO NOT use the transceiver without the jack cover or
the optional equipment attached.
The transceiver meets IP67/IP55/IP54 requirements for dust-tight
and waterproof protection only when the jack cover or the optional
HM-168LWP, HS-94LWP, or HS-95LWP is attached.
5
D Status Indicator
Lights red:
Lights green:
Lights or blinks orange:
[Rotary Selector]
Slowly blinks green:
[VOL]
Quickly blinks green:
[TOP]
Speaker
D Factory default key assignment
Speaker-
Microphone jack
Microphone
Function display
Programmable
function Keys
[Up]
[Down]
[Top]
L See the IC-F29SDR operating guide from the Icom web site for
details of the Assignable Software Key functions.
Transmitting.
Receiving or the squelch is open.
A matching signal is received,
depending on the presetting.
The battery should be charged.
The battery must be charged.
Assigned Software Key
Analog
Monitor
S-Ring/C-Ring
CH Down/Zone Down CH Down/Zone Down
CH Up/Zone Up CH Up/Zone Up
Code
Lock/Favorite CH Lock/Favorite CH
Rewrite
A-Ring
Digital
Clear
Call/C-Ring
Code/Select
Rewrite
A-Ring
