17 Technical Information
Optional Serial Port

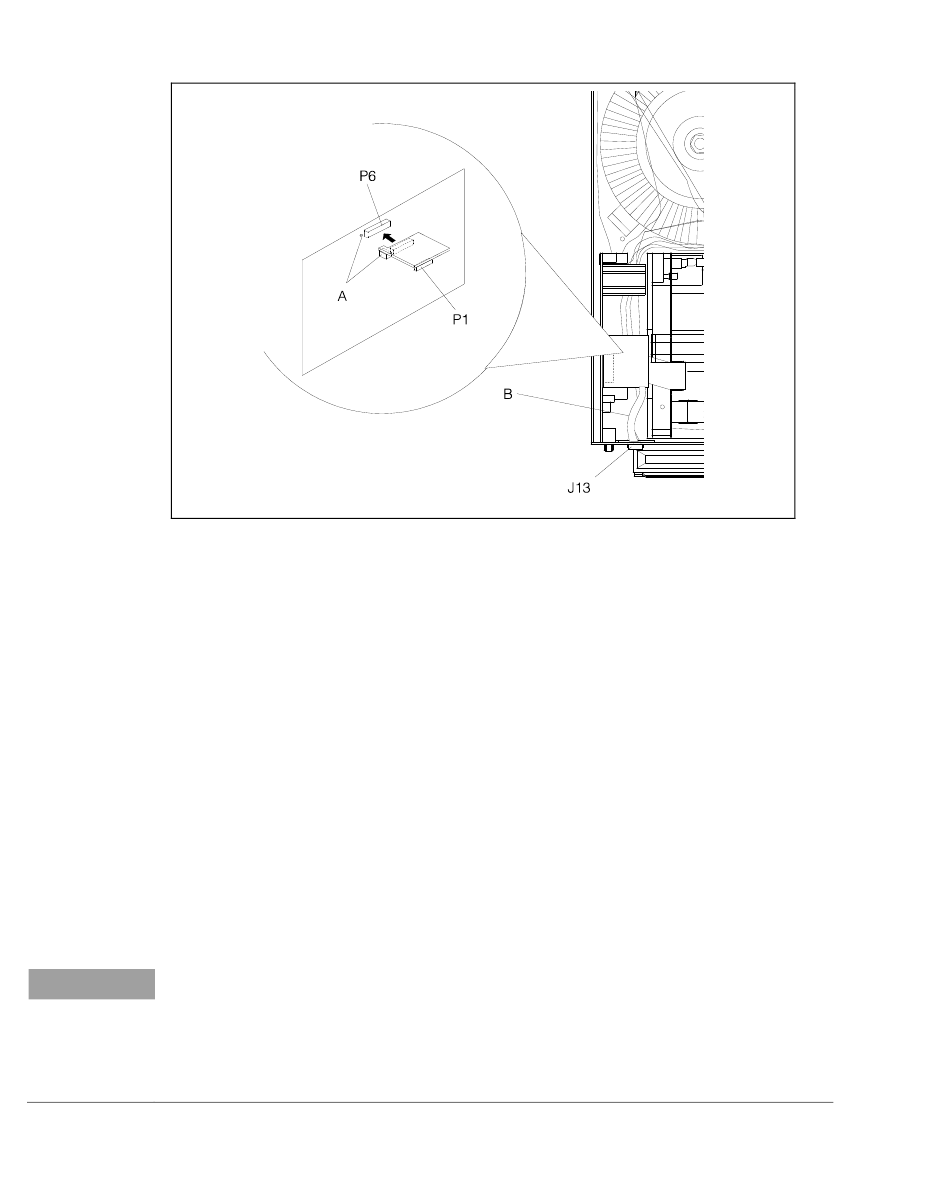

Figure 13
Serial Communication Port J13
Communication serial port connections and mini- mum connection
configuration are shown in the following figures. The communication
port mating connector is supplied with the RS 232 PCB
(AMP/Cannon or equivalent 9-pin "D" type male connector). The
external cable (not supplied) between the host computer and the
controller does not require crossed wires so that signals are
connected correctly . For example, the Transmit data signal from
controller (pin 2) must be connected to the host computer's Receive
data line (pin 2) and vice versa. Consult the host computer's
instruction manual for its serial port connections.
Agilent cannot guarantee compliance with FCC regulations for radiated
NOTE
emissions unless all external wiring is shielded, with the shield being
terminated to the metal shroud on the O-subconnector. The cable should be
secured to the connector with screws.
252/306
Serial port connector installation
