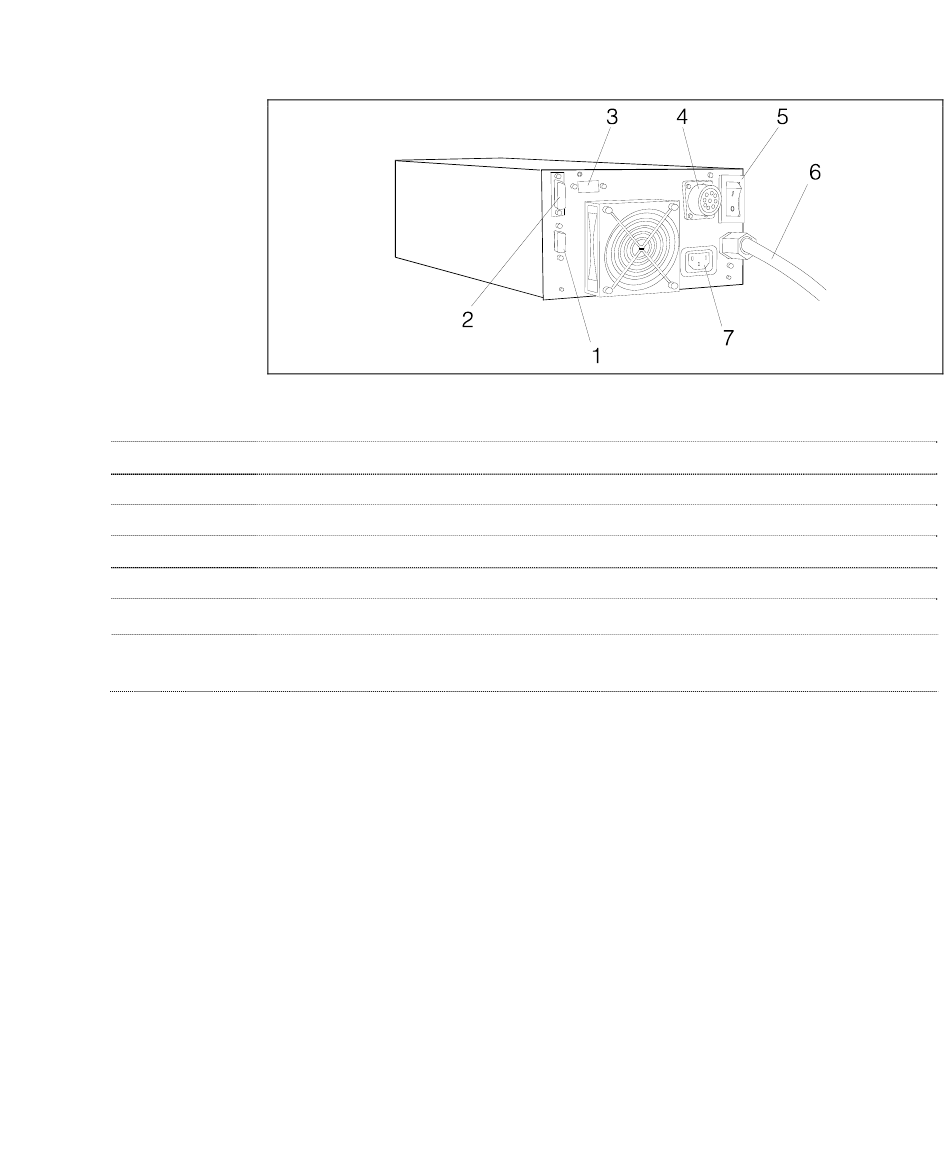

Figure 3
1 Logic input signals connectors (mating connector supplied with link).
2 Pump current and frequency logic and control signals output connector.
3 RS 232, RS 422 and RS 485 (provided as option) serial communication port connector slot.
4 Pump connector.
5 Main breaker switch.
6 Power cord.
7 Power output connector (120 Vac, 1A) to power the pump fan and the optional devices
(vent device, primary pump activation relay, etc.).
Turbo-V 2000HT Controller User Manual / 87-900-913-01
Controller 969-9462 and 969-9562 rear panel
Instructions for Use
(O)
16
Use
231/306
