Protocol for data transmission

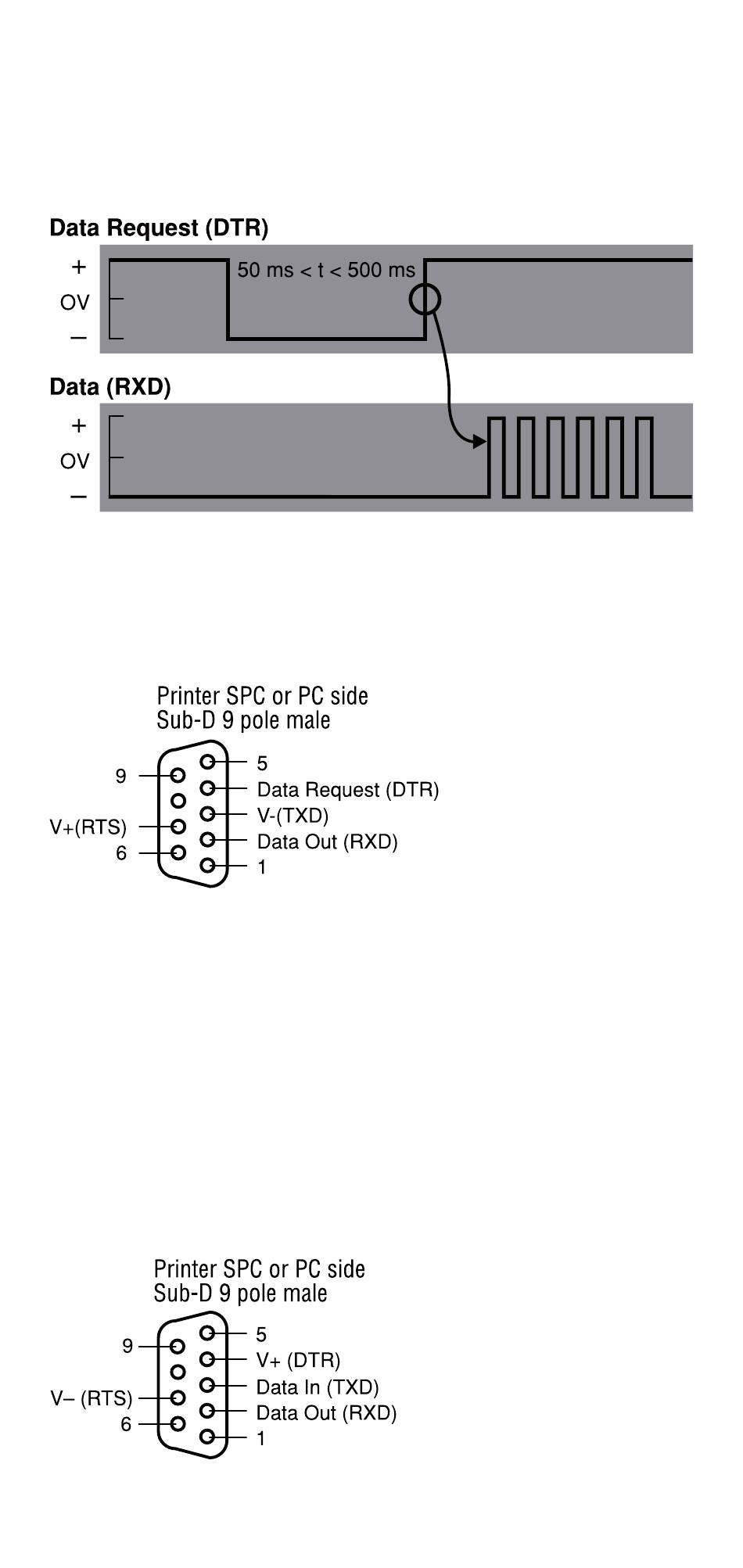

Mono directional data transmission
Altering Data Request (DTR) causes displayed value to be
returned.
Connecting cable :
monodirectional with order No. 04761046.
Pin layout of the Sub-D, 9-pin male connector:
Bidirectional data transmission
Enabling this mode allows you to control your indicator
from a host computer.
Connecting cable:
Bidirectional with order No. 04761049.
Pin layout of the Sub-D, 9-pin male conector:
16
