Technical Information

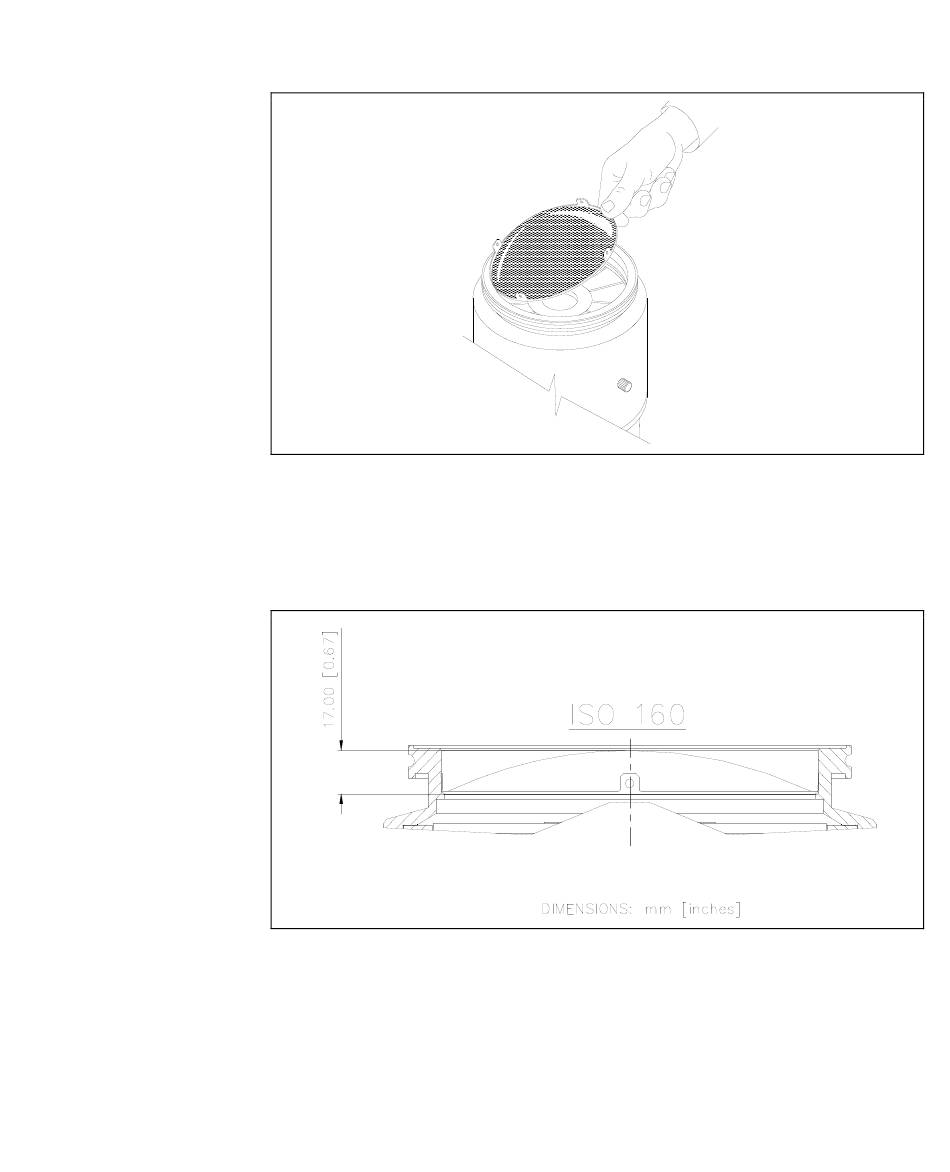

Inlet Screen Installation
Figure 25
The following figure shows the overall flange dimensions with the
protection screen fitted on pump with ISO flange.
Figure 26
TV 801 Navigator User Manual / 87-900-953-01 (G) 239/252
