17 Technical Information
How to Connect the Open-Collector Inputs of the Controller
The PROGRAMMABLE SET POINT signal has the following default
settings:
The Navigator Software (optional) allows the operator to set all the
NOTE
programmable feature.
When no external input-output device is available this connector
must be closed with the supplied mating connector that short-circuits
the START and INTERLOCK inputs with the GROUND and 24 Vdc
OUT (see the following figure).

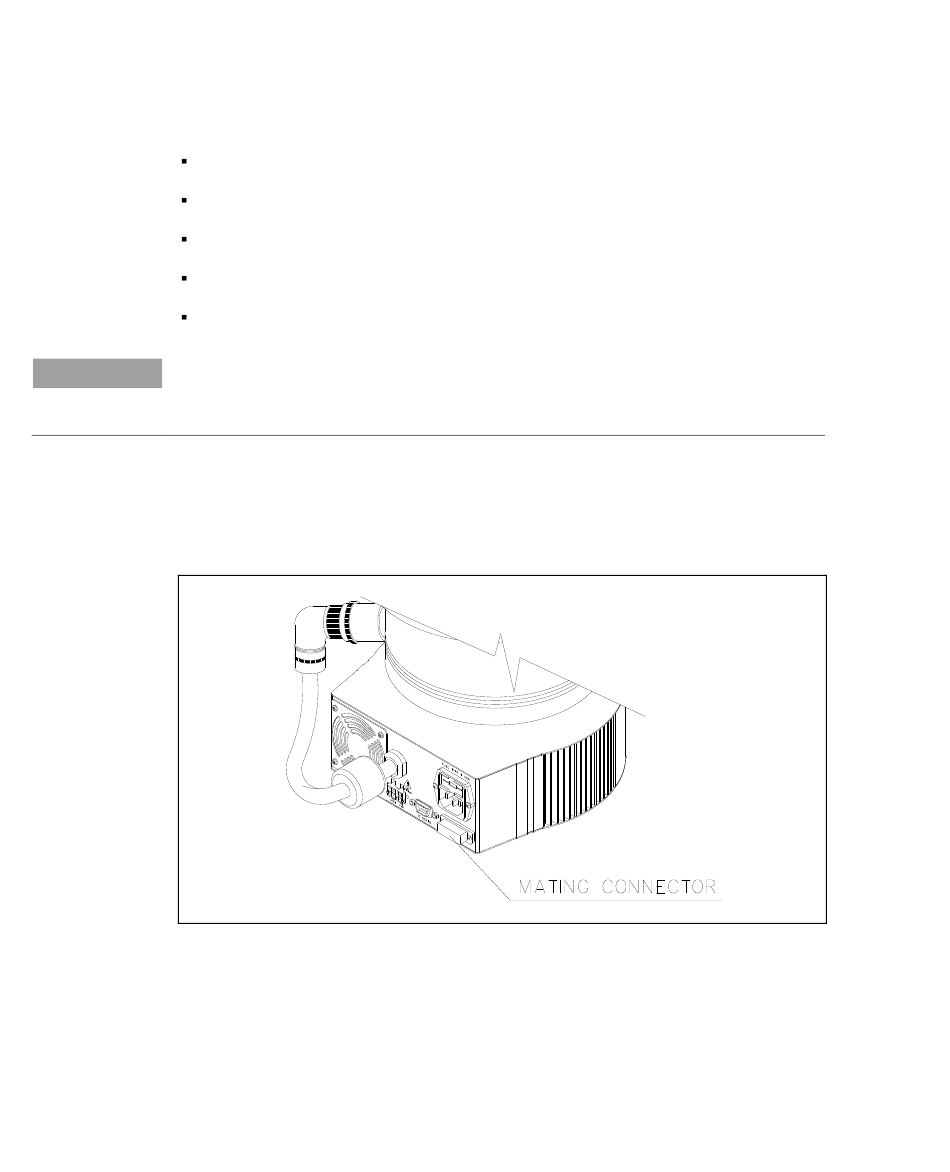

Figure 14
222/252
reference quantity: frequency
threshold: 582 Hz
hysteresis: 2 %
activation type: high level
delay time: 0 second
