Technical Information
Description of the TV 801 Navigator
The turbine rotor is supported by permanently lubricated high
precision ceramic ball bearings installed on the forevacuum side of
the pump.
The static blades of the stator are made of stainless steel. These are
supported and accurately positioned by spacer rings.
The Macrotorr stators are in the form of self-positioning machined
discs with pumping channels and an opening restricted by the
corresponding rotor discs. These are made of aluminium alloy.
During normal operation, the motor is fed with a voltage of 54 Vac
three-phase at 646 Hz. To reduce losses during start-up to a
minimum, the frequency increases according to a ramp with a higher
initial voltage/frequency ratio.
The pump has to be air cooled and an external fan is available.
A thermistor sensor is mounted near the upper bearing to prevent
the pump from overheating.
The pump is balanced after assembly with a residual vibration
amplitude less than 0.01 μm.
The pump can operate in any position and can be supported on the
high vacuum flange. The connection of the forevacuum on the side of
the pump is a KF 40 NW flange.

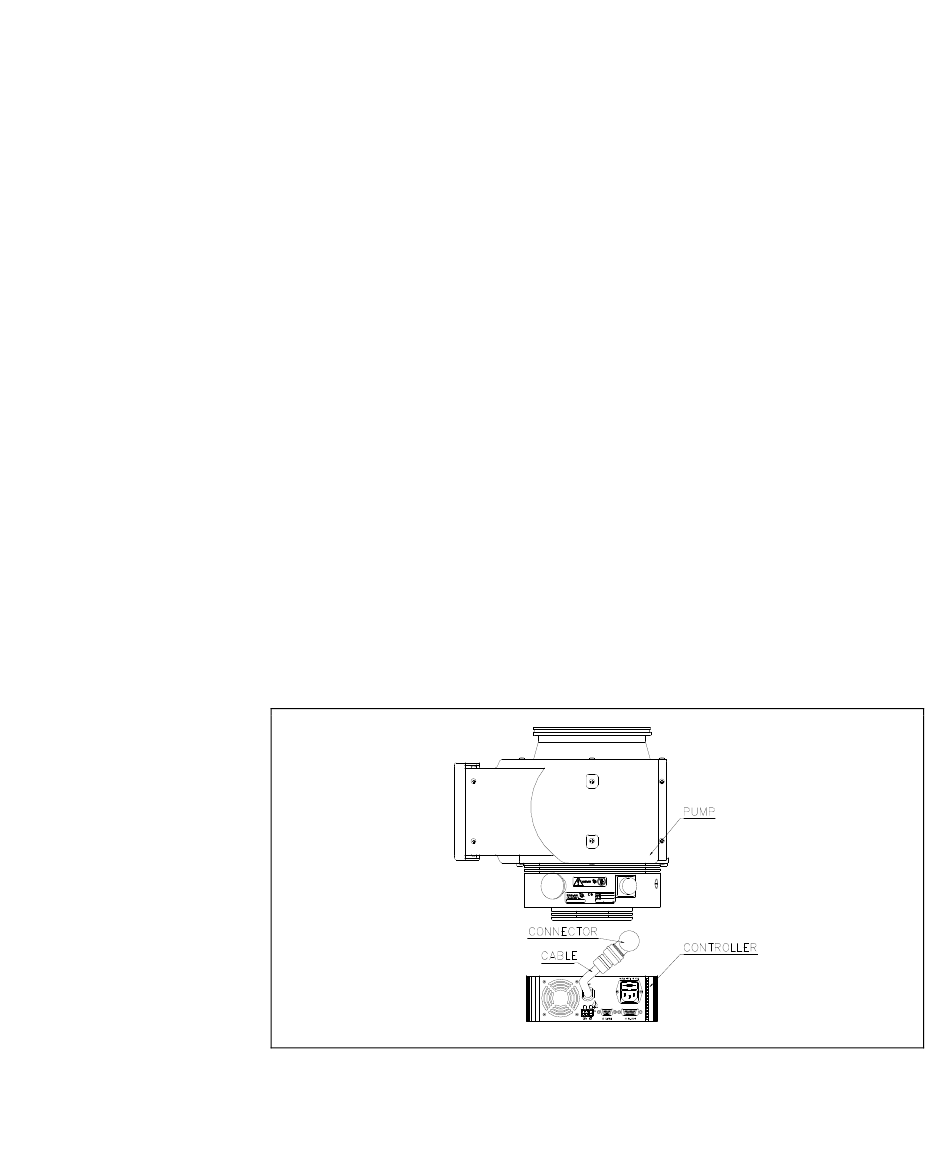

Figure 6
