TECHNICAL INFORMATION

INTERCONNECTIONS

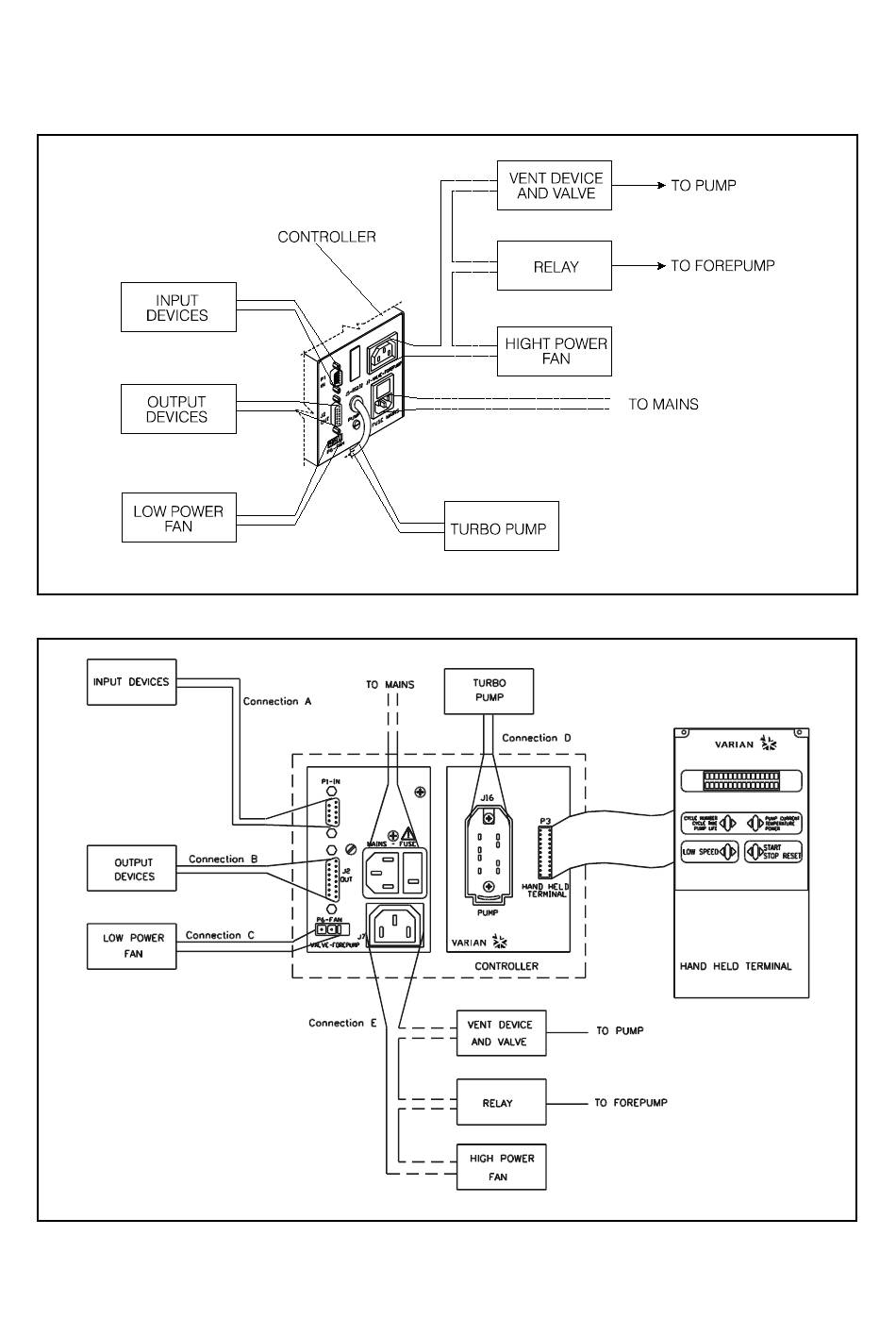

The following figure shows the Controller interconnections.
Controller models 969-9423 and 969-9523 interconnections
Controller model 969-9425 interconnections
