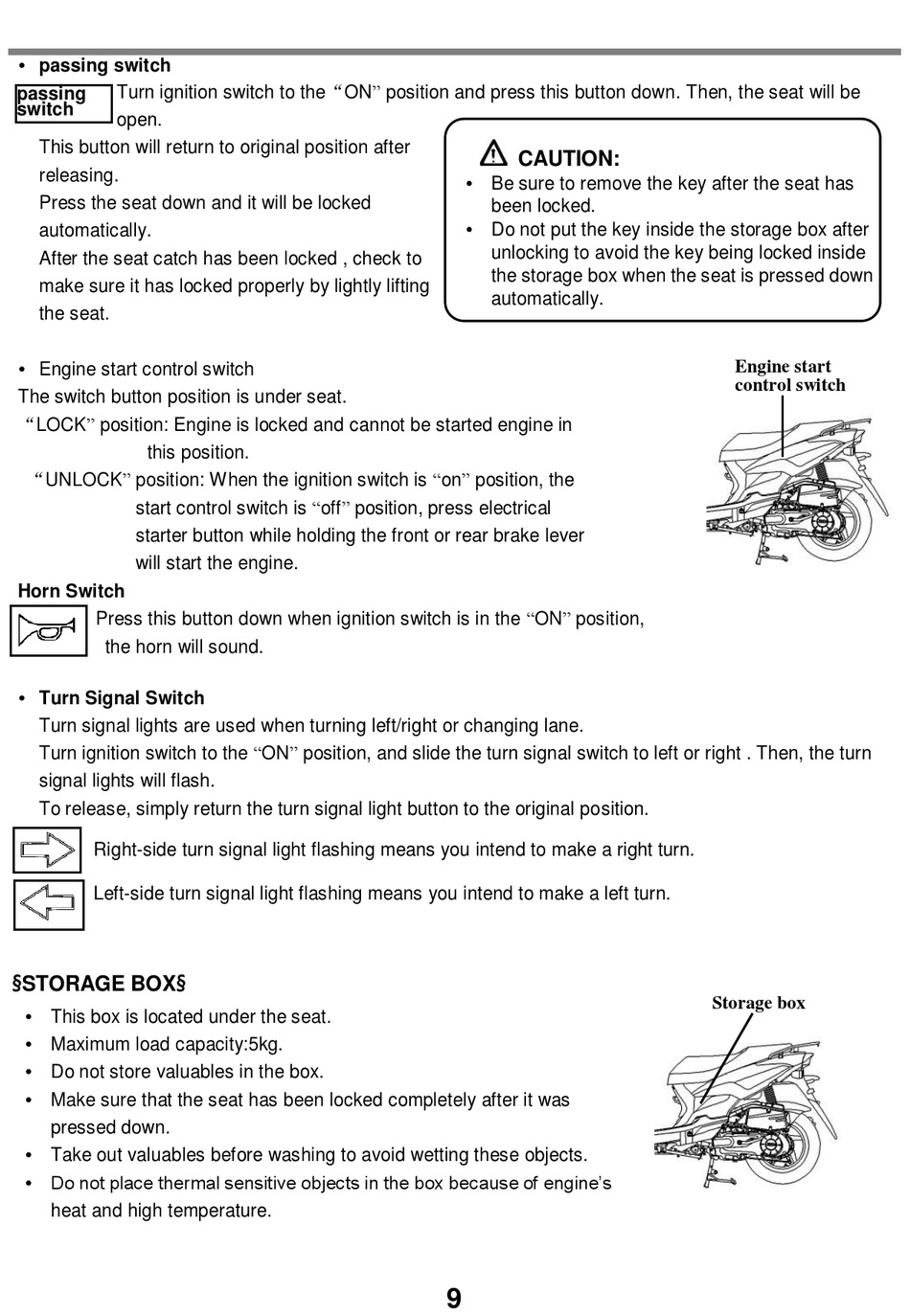

Storage Box - Sym ORBIT III 125 Bedienungsanleitung

 passing switch
Turn ignition switch to the"ON" position and press this button down. Then, the seat will be
passing
switch
open.
This button will return to original position after
releasing.
Press the seat down and it will be locked
automatically.
After the seat catch has been locked , check to
make sure it has locked properly by lightly lifting
the seat.
 Engine start control switch
The switch button position is under seat.
"LOCK" position: Engine is locked and cannot be started engine in
this position.
"UNLOCK" position: When the ignition switch is "on" position, the
start control switch is "off" position, press electrical
starter button while holding the front or rear brake lever
will start the engine.
Horn Switch
Press this button down when ignition switch is in the "ON" position,
the horn will sound.
 Turn Signal Switch
Turn signal lights are used when turning left/right or changing lane.
Turn ignition switch to the "ON" position, and slide the turn signal switch to left or right . Then, the turn
signal lights will flash.
To release, simply return the turn signal light button to the original position.
Right-side turn signal light flashing means you intend to make a right turn.
Left-side turn signal light flashing means you intend to make a left turn.
§STORAGE BOX§
 This box is located under the seat.
 Maximum load capacity:5kg.
 Do not store valuables in the box.
 Make sure that the seat has been locked completely after it was
pressed down.
 Take out valuables before washing to avoid wetting these objects.
 Do not place thermal sensitive objects in the box because of engine's
heat and high temperature.
CAUTION:
 Be sure to remove the key after the seat has
been locked.
 Do not put the key inside the storage box after
unlocking to avoid the key being locked inside
the storage box when the seat is pressed down
automatically.
9
Engine start
control switch

Storage box
