7.USE OF EACH COMPONENT

(The following is SYM 4 stroke air-cooling scooter's basic operation, and they could vary from
different individual models. Please consult the end of this manual.)
§GAUGES §

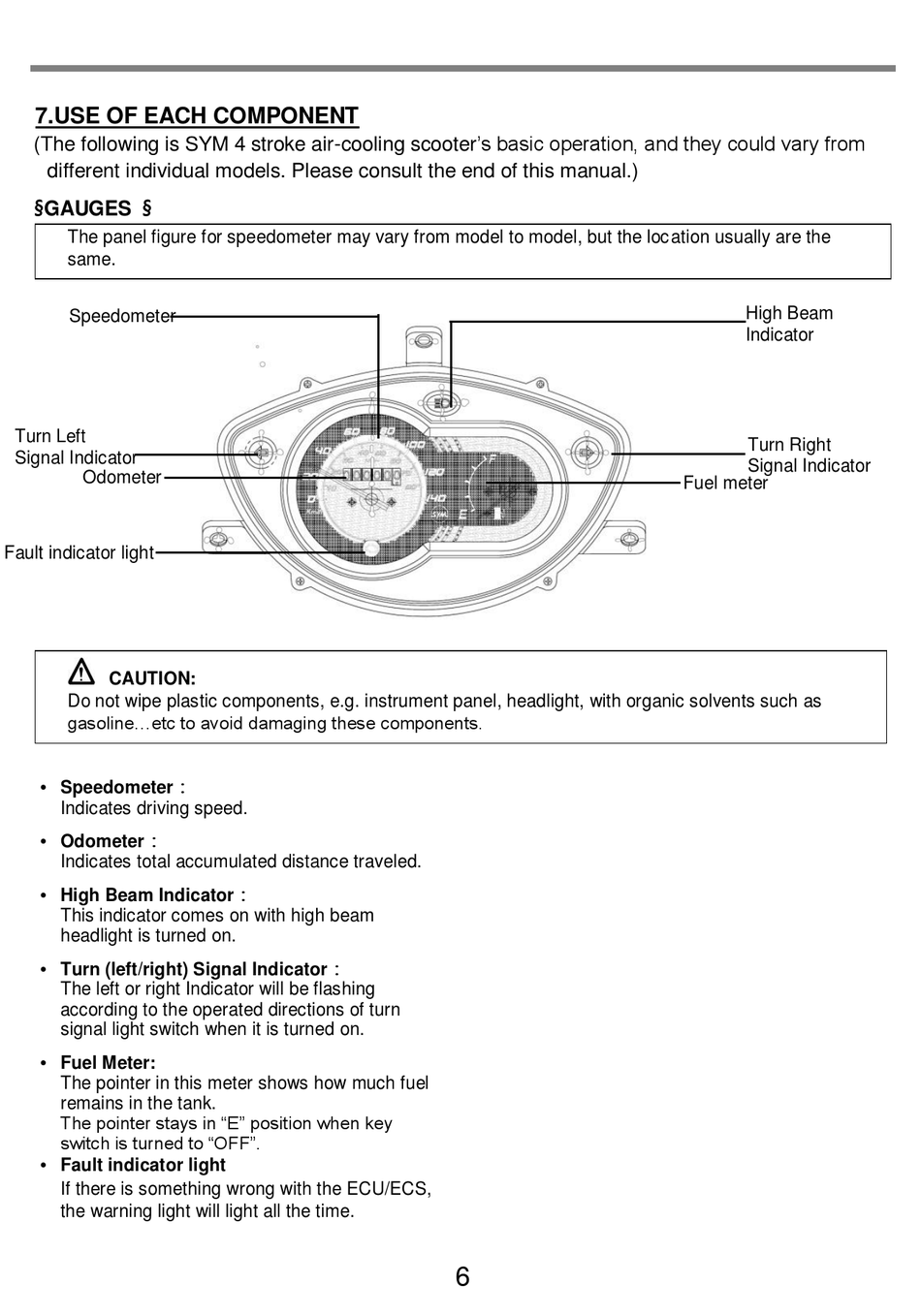

The panel figure for speedometer may vary from model to model, but the loc ation usually are the
same.
Speedometer
Turn Left
Signal Indicator
Odometer
Fault indicator light
CAUTION:
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as
gasoline...etc to avoid damaging these components.
 Speedometer：
Indicates driving speed.
 Odometer：
Indicates total accumulated distance traveled.
 High Beam Indicator：
This indicator comes on with high beam
headlight is turned on.
 Turn (left/right) Signal Indicator：
The left or right Indicator will be flashing
according to the operated directions of turn
signal light switch when it is turned on.
 Fuel Meter:
The pointer in this meter shows how much fuel
remains in the tank.
The pointer stays in "E" position when key
switch is turned to "OFF".
 Fault indicator light
If there is something wrong with the ECU/ECS,
the warning light will light all the time.
