Active charcoal filters (Optional)
When exterior gas extraction is not possible,
then the kitchen hood may be set to purify the
air by recycling it through active carbon filters.
The active carbon filters have an active life of
between three to six months, depending on
the individual conditions of use. These filters
cannot be washed nor regenerated. They
must be replaced once their useful life comes
to an end.

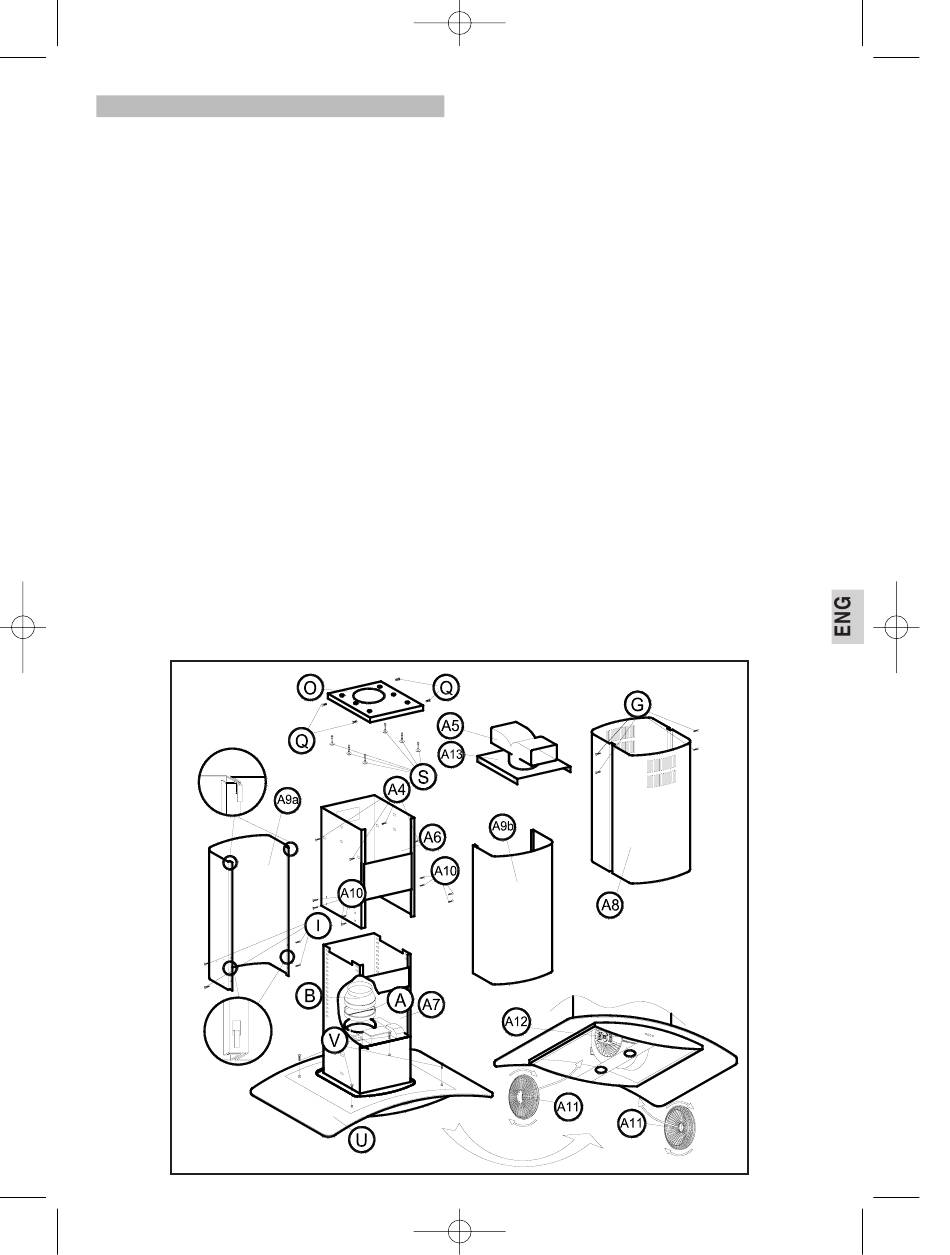

Fig. 2 (Page 19)
1) Mount the diffuser support (A13) onto the
upper chassis (A6) with the screws (A4) (M4
x 12).
2) Adjust the diffuser (A5) over the support
(A13).
3) Connect the upper part of the inner tube
(not supplied) to the circular support exit
(A13).
4) Using the support (O) trace and drill the
where the screw-fittings will sit onto the roof
(S) (Ø8 x 45).
5) Screw the support (O) into the roof with the
screw-fittings (S) (Ø8 x 45).
6) Mount the upper chassis (A6) onto the
FIG. 2
14/04/2003 13:19 PÆgina 19
support (O) using the screws (Q) (M6 x 16).
7) Mount the upper cover (A8) and attach it to
the upper chassis (A6) with the screws (G)
(M4 x 12).
8) Fit the part (A) if the inner tube (not
supplied) is Ø150 or (A) + (B) if it is Ø120.
9) Adjust the decorative part (U), fixing it
softly to the body of the bell using the screws
provided with the decorative part.
10) Mount the whole lower unit to the upper
section, attaching it to the roof using the
screws (A10) (M4 x 12) at the required height.
11) Attach the inner tube with a clamp (not
supplied) to (A) or (B) as the case may be.
12) Mount the lower part (A9a) of the cover to
the lower chassis (A7) with the screws (I)
(M4x12).
13) Adjust the lower part (A9b) of the cover
(A9a) as shown in the diagrams.
14) Adjust the decorative part (U), fixing it
tightly to the body of the bell using the screws
provided with the decorative part.
15) Put the filters into the lateral draught
section of the motor making the holes in the
filters match up (A11) with the pivots (A12) of
the motor carcass.
