Manual ND ISLA TEKA.qxd
Accesories supplied
1
150/ 125 mm reduction.
1
Anti-recoil valve.
6
Lock screws (Ø8 x 45).
Installation

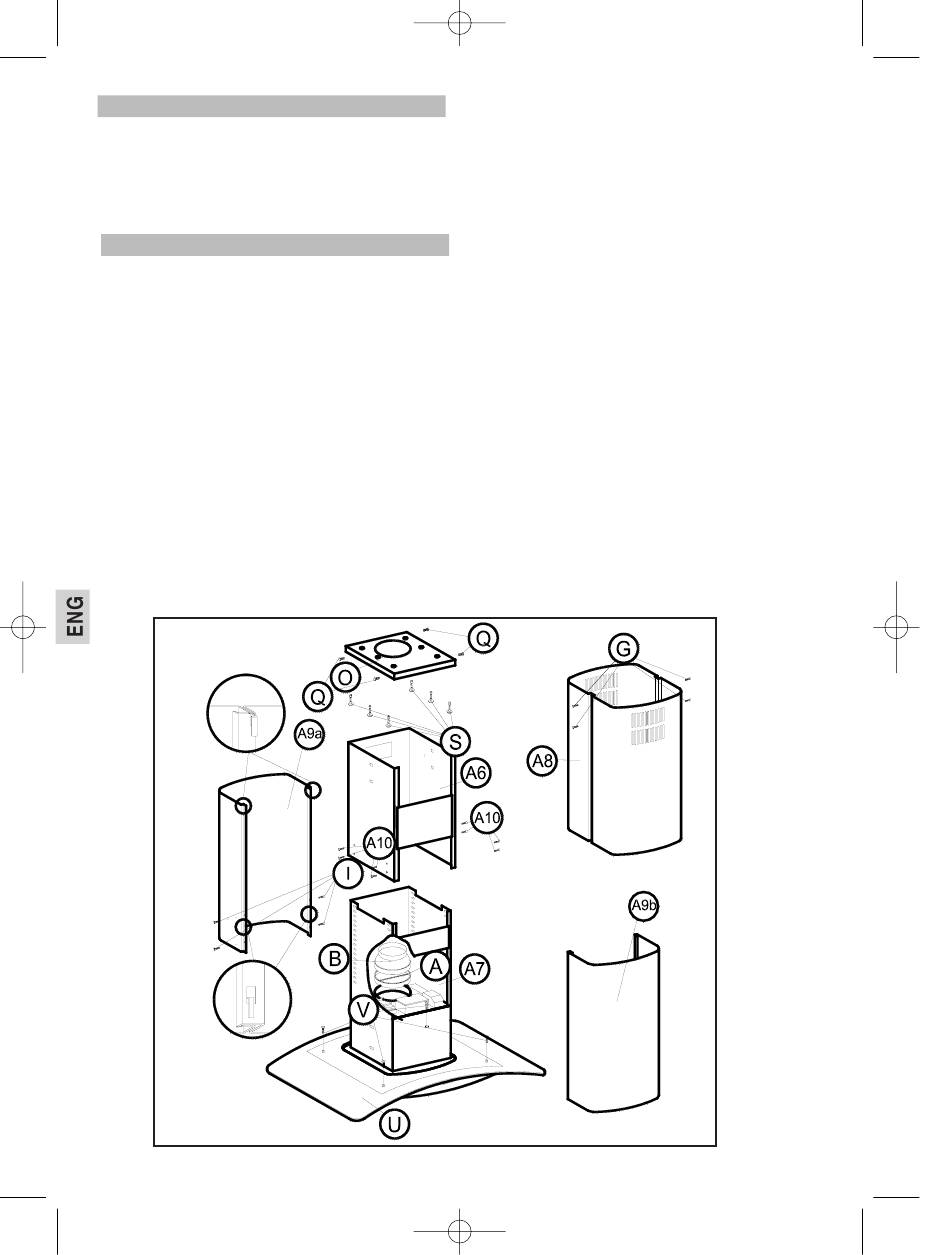

Fig. 1 (Page 18)
On installing the kitchen hood make sure
that the Safety Instructions set out on page
14 are complied with.
To obtain optimum performance, the external
conduct must not be more than FOUR
METRES long, have no more than two 90°
angles and its diameter must be at least Ø120.
1) Using the support (O) trace and drill the
where the screw-fittings will sit onto the roof (S)
(Ø8 x 45).
2) Screw the support (O) into the roof with the
screw-fittings (S) (Ø8 x 45).
3) Mount the upper chassis
support (O) using the screws (Q) (M6 x 16).
FIG. 1
18
14/04/2003
13:18
PÆgina 18
4) Connect the upper part of the inner tube (not
supplied) to the exit.
5) Mount the upper cover (A8) and attach it to
the upper chassis (A6) with the screws (G) (M4
x 12).
6) Fit the part (A) if the inner tube (not supplied)
is Ø150 or (A) + (B) if it is Ø120.
7) Adjust the decorative part (U), fixing it softly
to the body of the bell using the screws
provided with the decorative part.
8) Mount the whole lower unit to the upper
section, attaching it to the roof using the
screws (A10) (M4 x 12) at the required height.
9) Attach the inner tube with a clamp (not
supplied) to (A) or (B) as the case may be.
10) Mount the lower part (A9a) of the cover to
the lower chassis (A7) with the screws (I) (M4
x 12).
11) Adjust the lower part (A9b) of the cover
(A9a) as shown in the diagrams.
12) Adjust the decorative part (U), fixing it
tightly to the body of the bell using the screws
(A6) onto the
provided with the decorative part.
