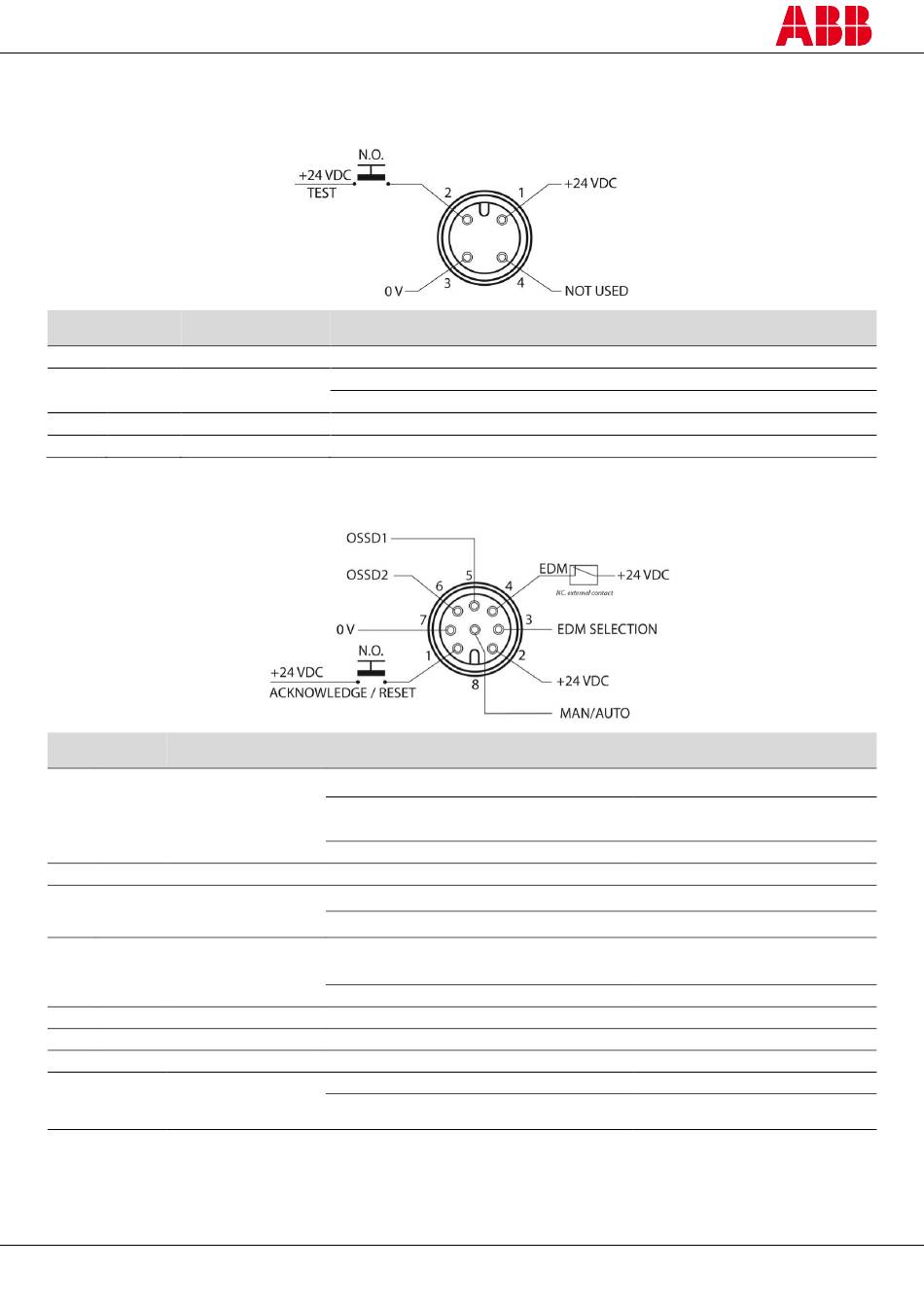

Electrical connections

Transmitter
1
Pin Wire Function
1 Brown Supply
2 White TEST
3 Blue Supply
Not used
4 Black
1
Colors according to ABB Jokab Safety standard cables
Receiver
1
Pin Wire Function
RESET/
1 White
ACKNOWLEDGE
2 Brown Supply
3 Green EDM SELECTION
4 Yellow EDM
5 Grey OSSD1
6 Pink OSSD2
7 Blue Supply
MANUAL/
8 Red AUTOMATIC
RESET
1
Colors according to ABB Jokab Safety standard cables
2TLC172293M0201 Rev A
2015-03-20
Connection to
+24 VDC
NO contact to +24 VDC if to be used
Not connected or 0 V if not to be used
0 V
-
Auto. Reset with no function
Auto. Reset with Acknowledge function or
Alignment mode
Manual Reset
Activate EDM
Deactivate EDM
Function used/activated
Function not used/deactivated
Automatic Reset
Manual Reset
3
Connection to
Not connected or 0 V
NO contact to +24 VDC
NO contact to +24 VDC
+24 VDC
Not connected or 0 V
+24 VDC
NC contact of a force-guided
relay
Not connected or 0 V
Safety control module for ex.
Safety control module for ex.
0 V
Pin 5 (OSSD1)
Pin 6 (OSSD2)
