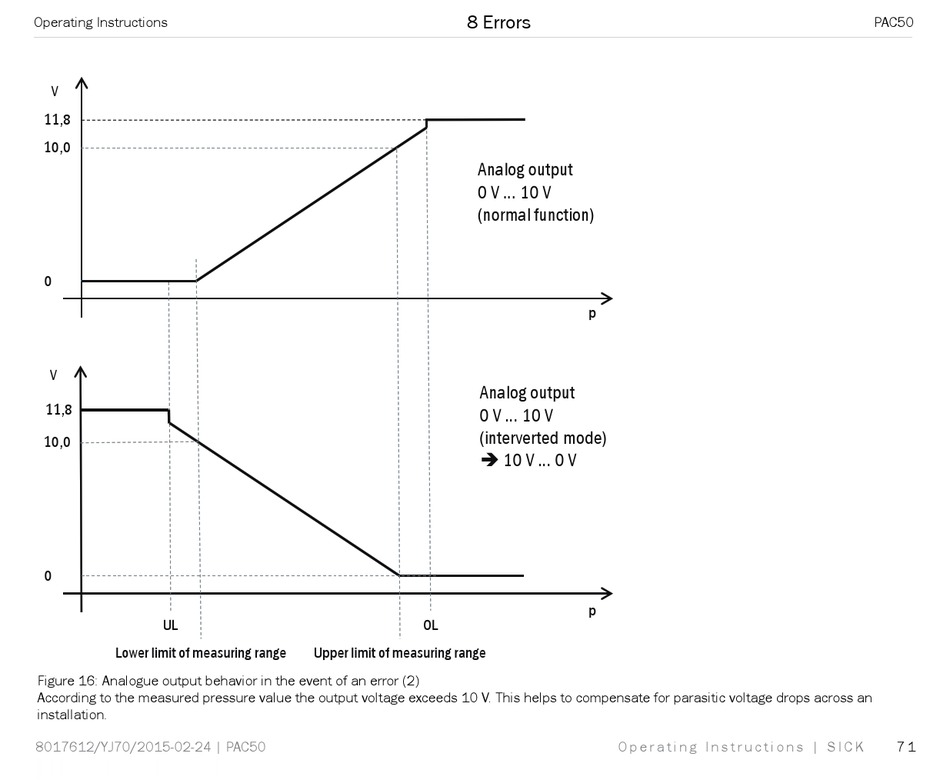

Figure 16: Analogue output behavior in the event of an error (2)
According to the measured pressure value the output voltage exceeds 10 V. This helps to compensate for parasitic voltage drops across an
installation.
8017612/YJ70/2015-02-24 | PAC50
Subject to change without notice
8 Errors
Analog output
0 V ... 10 V
(normal function)
Analog output
0 V ... 10 V
(interverted mode)
 10 V ... 0 V
OL
Upper limit of measuring range
p
p
