4.1.5 Delay times (0 to 50 s)
Setting a delay time prevents unwanted switching of the switching output short-term pressure variations
(damping).
The pressure must be present for at least the set delay time to allow the switching output to change its
status. The switching output does not change its status immediately on reaching the switching event; instead,
it does so after the set delay time (see Figure 5).
p
SP
RP
Schließer
1
Normally open
0
1
Öffner
0
Normally closed
DS DR

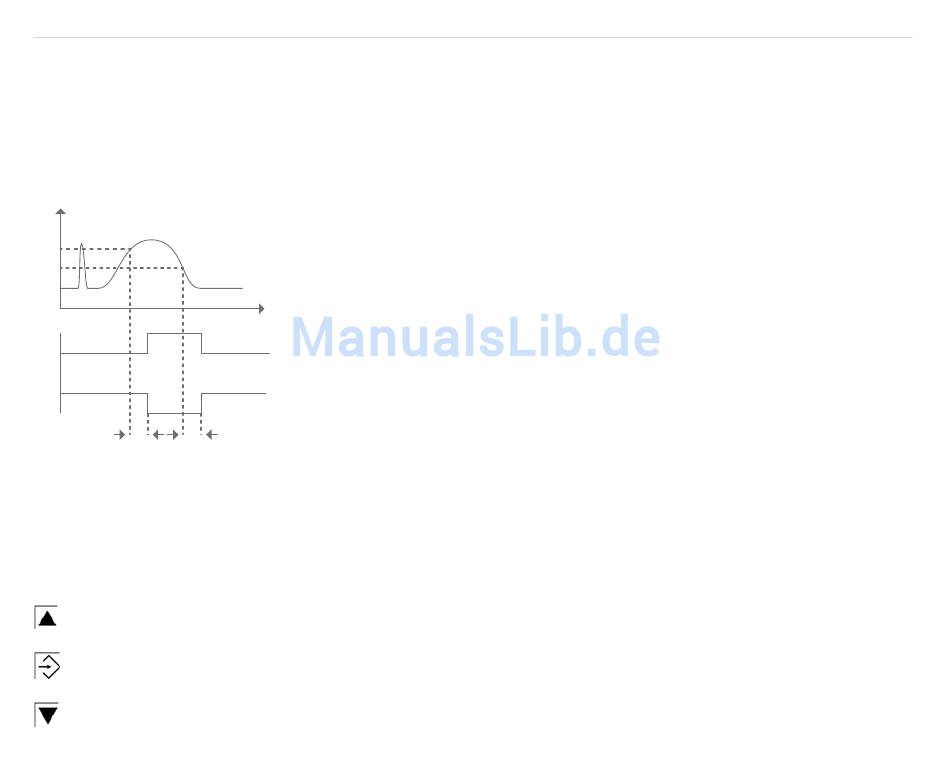

Figure 5: Delay times

4.2 Pushbuttons

Table 1 displays the pushbutton functions (for accurate parameter settings, see Chapter 7).
• The pushbuttons can be operated without the need for tools (e.g., a ballpoint pen tip).
• Do not press the pushbuttons using tools, sharp objects, or fingernails.
<up/info>
<enter>
<down/menu>
