6 CONTROLS
6.2

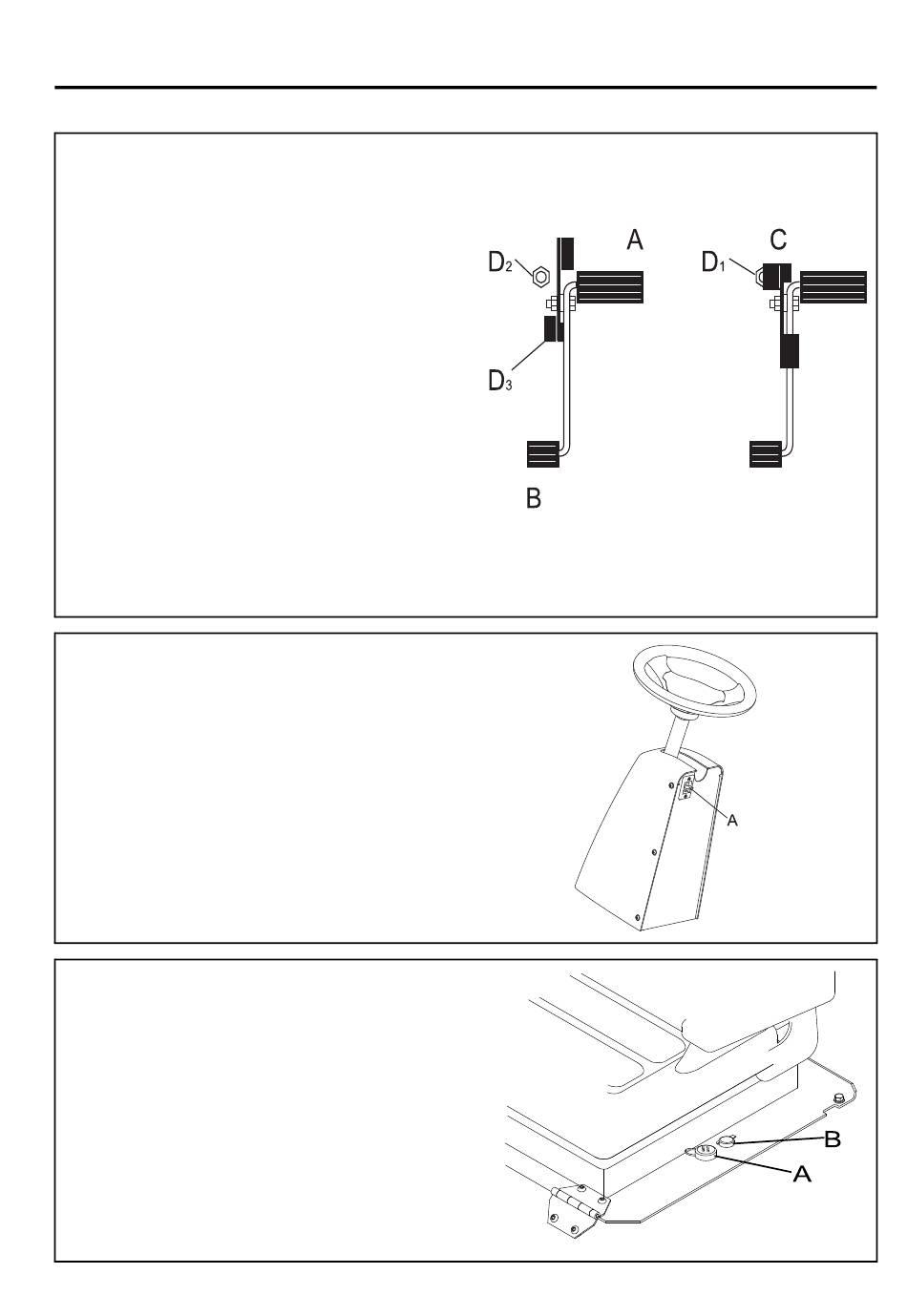

TRACTION FOOT PEDAL

A. Forward Travel (Traction Pedal)
Press front of pedal down for forward travel. Release
pedal to slow tractor and stop. Do not press traction
pedal when parking brake is set and parking brake
light (W) is lit.
B. Reverse Travel (Traction Pedal)
Press rear of pedal down for reverse travel. Release
pedal to slow tractor and stop. Allow tractor to come
to a complete stop before reversing direction. Do not
press traction pedal when parking brake is set and
parking brake light (W) is lit.
C. Mow Speed Stop
Limits forward speed while mowing. To operate at
lower travel speed while mowing, rotate lever so it
contacts stop screw (D1) on floor board when forward
travel pedal is pressed. To travel at full speed, set
lever in position shown (D3). Stop screw (D2) can be
adjusted to set specific mow speeds.
6.3

STEERING TILT CONTROL

Pull lever A up to release steering column. Tilt column
up or down to position desired. Release lever A to
lock steering column in place
6.4

Power Outlet

The Auxiliary Power Outlets are situated on the left
hand side of the seat on the seat plate
A Automotive 12V Power Outlet (Cigar Lighter)
B Accessory 12V Power Outlet
SAFETY, OPERATORS & MAINTENANCE MANUAL
JACOBSEN AR3
en-21
