Upgrading Your Fan to TY-150 series fans
Step 1:

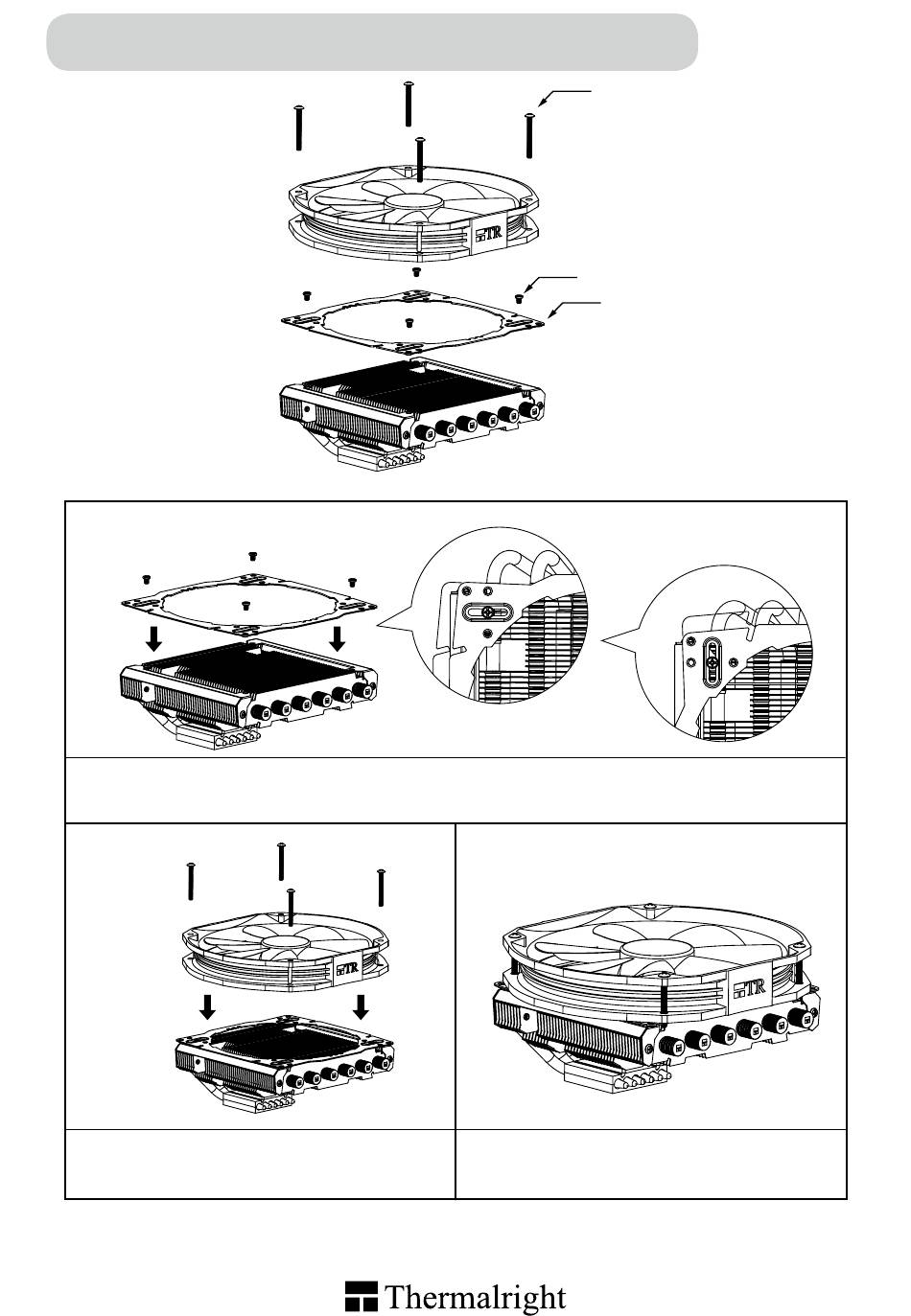

Step 1: Place the Enhanced Fan Mount on top of the Heatsink Body, pass four M3L4 Screws
through the rectangle holes. Slide the frame to adjust your fan mounting position, then tighten the
Enhanced Fan Mount.
Step 2:
Step 2: Secure the fan by screwing on the four
M3L30 Screws, though the fan's mounting
holes
49
M3 L30 Screw
M3 L4 Screw
Enhanced Fan Mount
Step 3:
Step 3: Installation Completed.
Plug in the fan connector to the CPU PWM Fan
socket on the motherboard.
