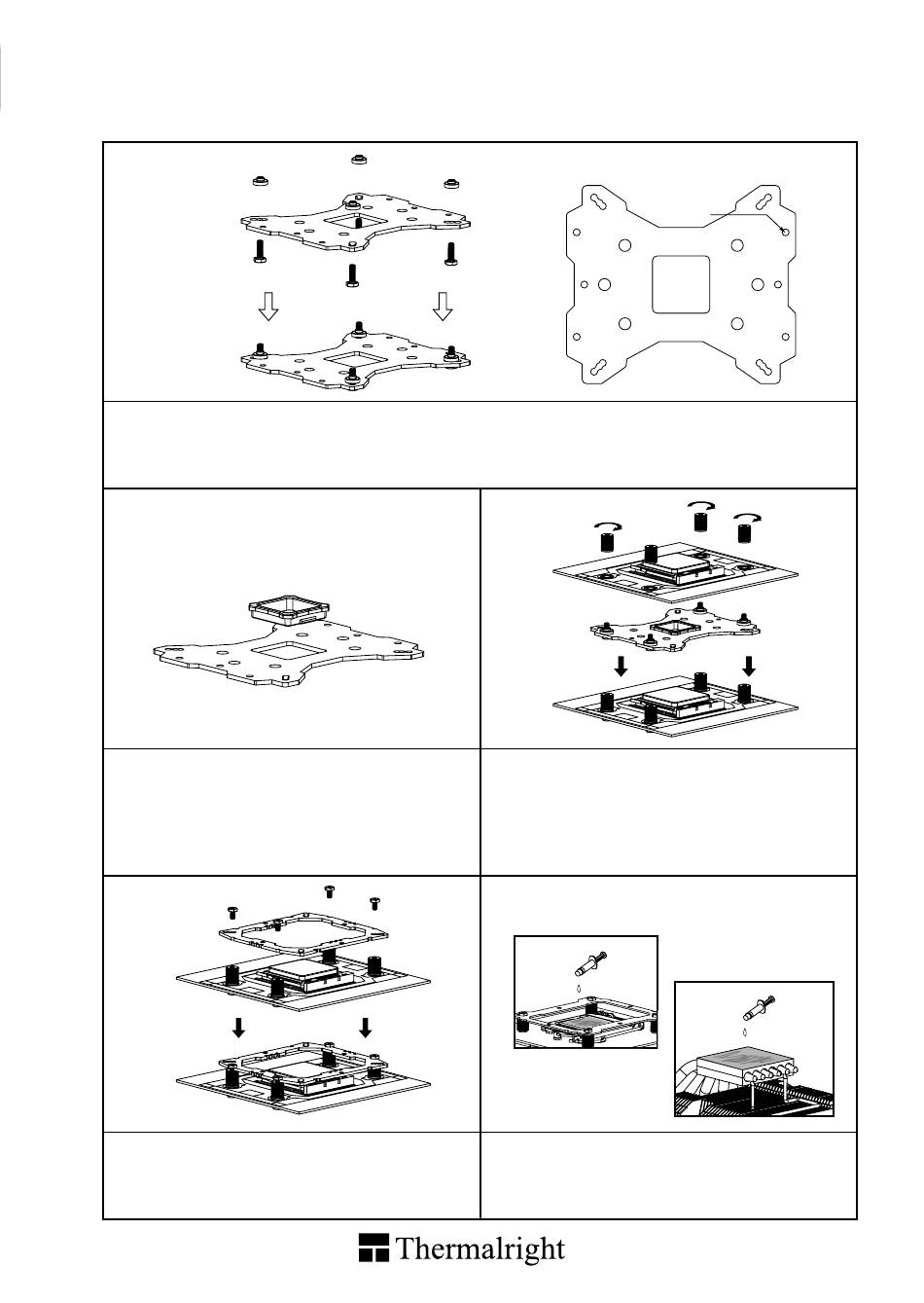

Installation Instructions:
Step 1:
Step 1 : Back Plate Installation
Choose the platform (AMD) you are in use. Make four M3L10 Screws go through the Metal Back Plate
from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for
AMD) around the Screw Cylinders.
Step 2:
Step 2 : Back Plate Cap
When installing on a AMD platform, please first
insert the Back Plate Cap into the opening on the
Back plate. Make sure you have the Cap facing
downwards.
Step 4:
Step 4 : Anchoring Mount Installation
Place the Anchoring Mount on the Screw Nuts.
Use the four M3L6 Screws to fix the Anchoring
Mount on to the Screw Nuts.
11
Step 3:
Step3 : Place the motherboard on top of the Back
Plate. See the four Screw Cylinders go through
the four holes around the processor socket.Cap
the four Screw Cylinders with the four Screw Nuts.
Make sure the side with a washer is facing the
Back Plate.
Step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor III to the base of the
Heatsink and the surface of the CPU evenly.
AMD
