Quick Start Guide
MA07/1
Electronic display
For detailed documentation please refer under
http://www.siko-global.com/p/ma07-1
General information
Prior to installation, including in hazard areas, read the Installation Instruc-
tion (download from the internet). It contains the safety instructions, hints
and technical data to be observed during installation. Subject to change with-
out notice.
Caution
In order to ensure reliable functioning of this product, take care to transport,
store, position and mount it appropriately. Exercise care when you operate and
maintain the device. Only properly qualified personnel is authorized to install
and operate this product.
Safety information
It is important for safety reasons that you read and understand the below
instructions before you install the system:
• Installation, connection, commissioning and maintenance shall be done by
properly qualified personnel.
• It is the responsibility of the customer to ensure that the personnel con-
cerned read and follow the instructions and directions of this Guide and of
the Installation Instruction.
• It is the responsibility of the customer to ensure that the electronic display
is correctly connected and configured.
• Only personnel specifically trained by SIKO shall execute repair and mainte-
nance work.
SIKO GmbH
Weihermattenweg 2 Phone: + 49 7661 394-0
79256 Buchenbach Fax: + 49 7661 394-388
www.siko-global.com Service: support@siko-global.com
MA07/1 · Date 02.09.2019 · Art. No. 90042 · Mod. status 172/19

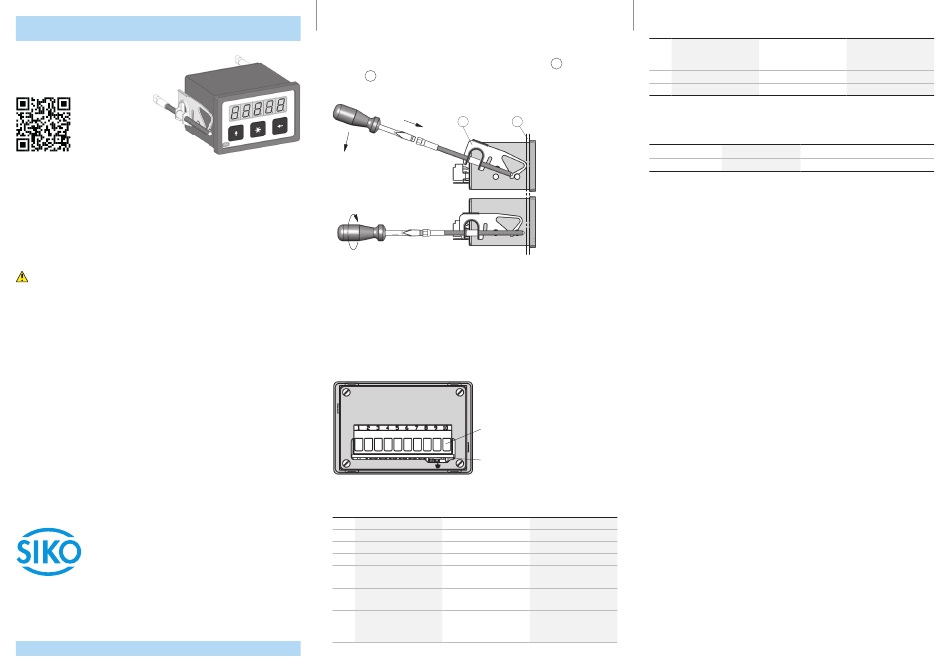

Mounting of the electronic display
For switchboard installation the recommended dimensions of IEC 61554 shall
be applied.
Push the unit (without brackets) into the switchboard cutout
brackets 2 at the front, press them down for fixing to the housing and tighten
the backet screws.
2
Electrical Installation
The location should be selected to ensure that no capacitive or inductive inter-
ferences can affect the electronic display or the connection lines!
• When mounting the system keep a maximum possible distance from lines
loaded with interference. Use screening shields or metallized housings.
• Contactor coils must be linked with spark suppression.
Connection
Strand cross section
2.5 ... 4 mm²
PE tag for
connection
PIN Designation Designation speed
incremental
1 +UB (encoder supply) +UB (encoder supply)
2 signal A signal A
3 signal B nc
4 index signal (I/0) nc
5 GND (screen encoder GND (screen encoder
supply) supply)
6 RFS (signal for reference nc
point source)
7 GND (for reference point GND (programming
source and and program- enable)
ming enable)
PIN Designation
incremental
8 input for programming
enable (ground switch-
. Then snap the
1
ing)
9 +UB
10 GND
Technical data
1
Electrical data
Operating voltage
Current consumption 100 mA
Designation quantity
+UB (encoder supply)
signal A
nc
nc
GND (screen encoder
supply)
Reset
GND (for reference point
source and and program-
ming enable)
Designation speed Designation quantity
input for programming input for programming
enable (ground switch- enable (ground switch-
ing) ing)
+UB +UB
GND GND
Additional information
24 V DC ±20 %
at 24 V DC, without encoder
