Fig.1 Construction Of "Wiktoria" Device; Fig.2 Construction Of "Wiktoria2" Device; Fig.3 Layout Of Gn Containers In "Wiktoria" Device; Fig.4 Layout Of Gn Containers In "Wiktoria 2" Device - Igloo WIKTORIA Bedienungsanleitung

1 2 3 4
6 5

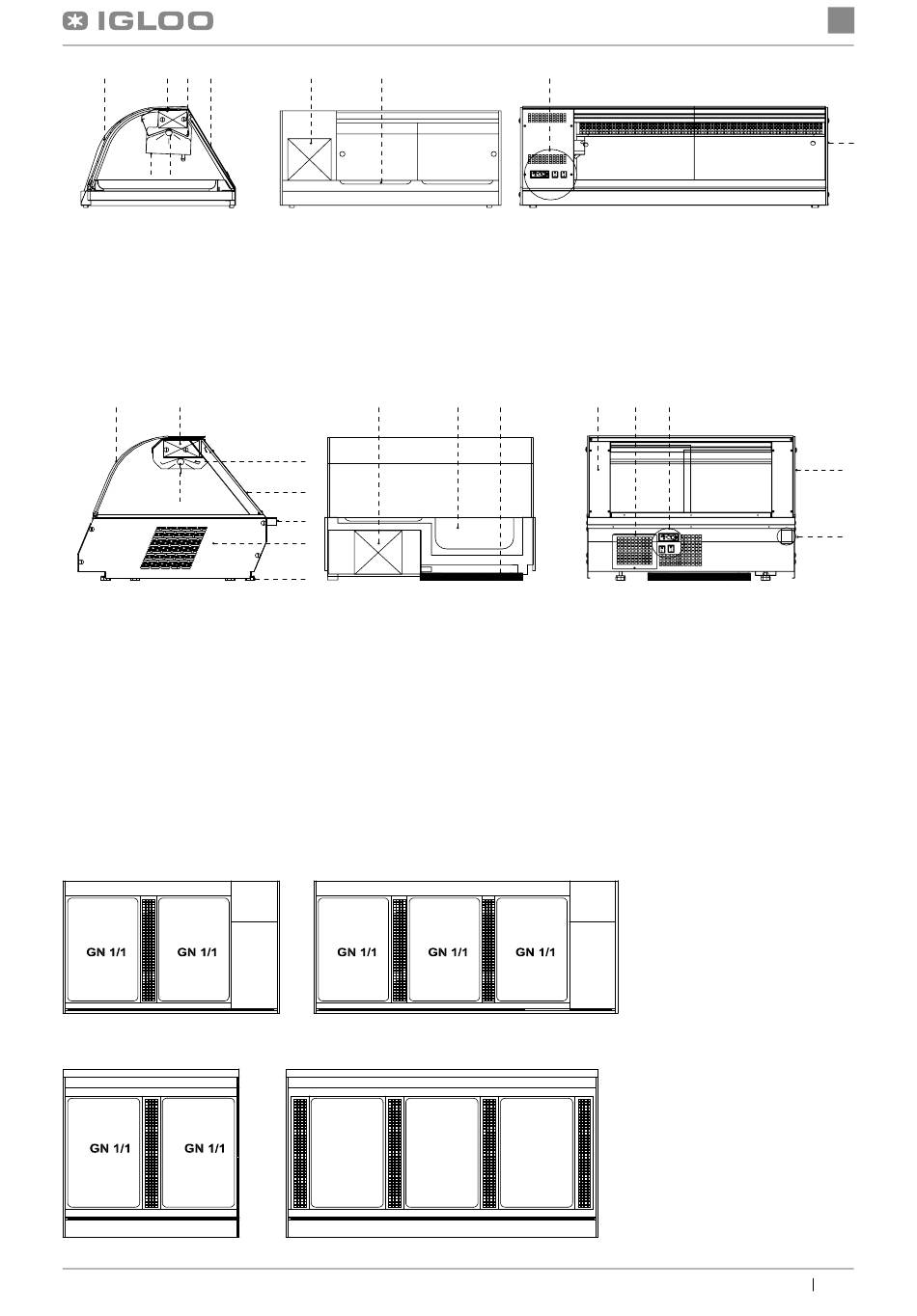

Fig.1 Construction of "Wiktoria" device

1 – Front glass, bent, lifted (when removed – access to
condensate lamellas)
2 – Evaporator of the device
3 – Evaporator screen
4 – Night screens
5 – Illumination of the display area
1 2
6

Fig.2 Construction of "Wiktoria2" device

1 – Bent, front glass, lifted
2 – Evaporator of the device
3 – Rail (condensate outfl ow after defrosting the evaporator)
4 – Night screens
5 – Top
6 – Illumination of the display area
7 – Side metal plates (when removed – access to aggregate)
(DO NOT BLOCK ventilation holes ensuring circulation of
the cooled air!!!)
8 – Device levelling feet
Wiktoria 1.0
Wiktoria 2 1.0
www.igloo.pl
7 8
11 9
3
4
5
7
8
Wiktoria 1.3
Wiktoria 2 1.3
GN 1/1 GN 1/1
9
6 – Rail (condensate outfl ow after defrosting the
evaporator)
7 – Cooling aggregate
8 – GN containers
9 – Control panel (temperature regulator /switches)
10- Glass sides
10 12 16 15
9 – GN containers
10 – Condensate tray (acts as evaporator overfl ow)
11 – Cooling aggregate
12 – Horn hole plug (when removed – access to tubing of the
cooling part and electrical conduits)
13 – Glass sides
14 – Data plate
15 – Control panel (temperature regulator /switches)
16 – Wind brace (when removed – access to condenser
lamellas) (DO NOT BLOCK ventilation holes ensuring
circulation of the cooled air!!!)
Fig.3 Layout of GN containers
in "Wiktoria" device
GN 1/1
Fig.4 Layout of GN containers
in "Wiktoria 2" device
User manual Wiktoria, Wiktoria 2
en
10
13
14
NS-069 XXX
MASA xxx
NAPIECIE ZNAM. xxx
PR¥ D ZNAM. xxx
MOC ZN. OΠW. xxx
MOC GRZA£EK. xxx
NAPIECIE ZNAM. xxx
KLASA URZADZ. xxx
Typ NAZWA URZ¥ DZENIA
11
