Table 1 Cross-bars under GN containers
Name of the device
GN cross-bars [amount]

2.3. Technical data

Table 2 Technical data

Type of the device
"WIKTORIA"
1.0
1.3
2/1.0
2/1.3

3. PREPARING THE DEVICE FOR EXPLOITATION

3.1. Requirements concerning the place of installation

• Verify whether the cross section of feeding conduits is proper for power consumption of the installed device.
• It is forbidden to connect the device by extension rods or dividers.
• The device should be connected to the separate, properly made electric circuit with plug-in socket
with protecting pin (according to PBUE /Regulations concerning Electric Equipment Construction/)
The device may be actuated solely after confi rmation of the fi re protection effi ciency with results of
measures performed according to binding regulations!

3.2. Connection and actuation

• Unpack the device
• Place the display cabinet on an even basis, which is hard enough, and then level it with feet (does not concern
"Wiktoria" device).
• If the user shall obtain a device partially disassembled to secure it during transportation, perform the following
operations:
1. Place cross-bars under GN containers
2. Place GN containers
3. Place night screens
4. (This concerns only "Wiktoria 2" device) Place condensate tray under the water outfl ow funnel (overfl ow) loca-
ted under the display cabinet. Push the tray from the front of the device.

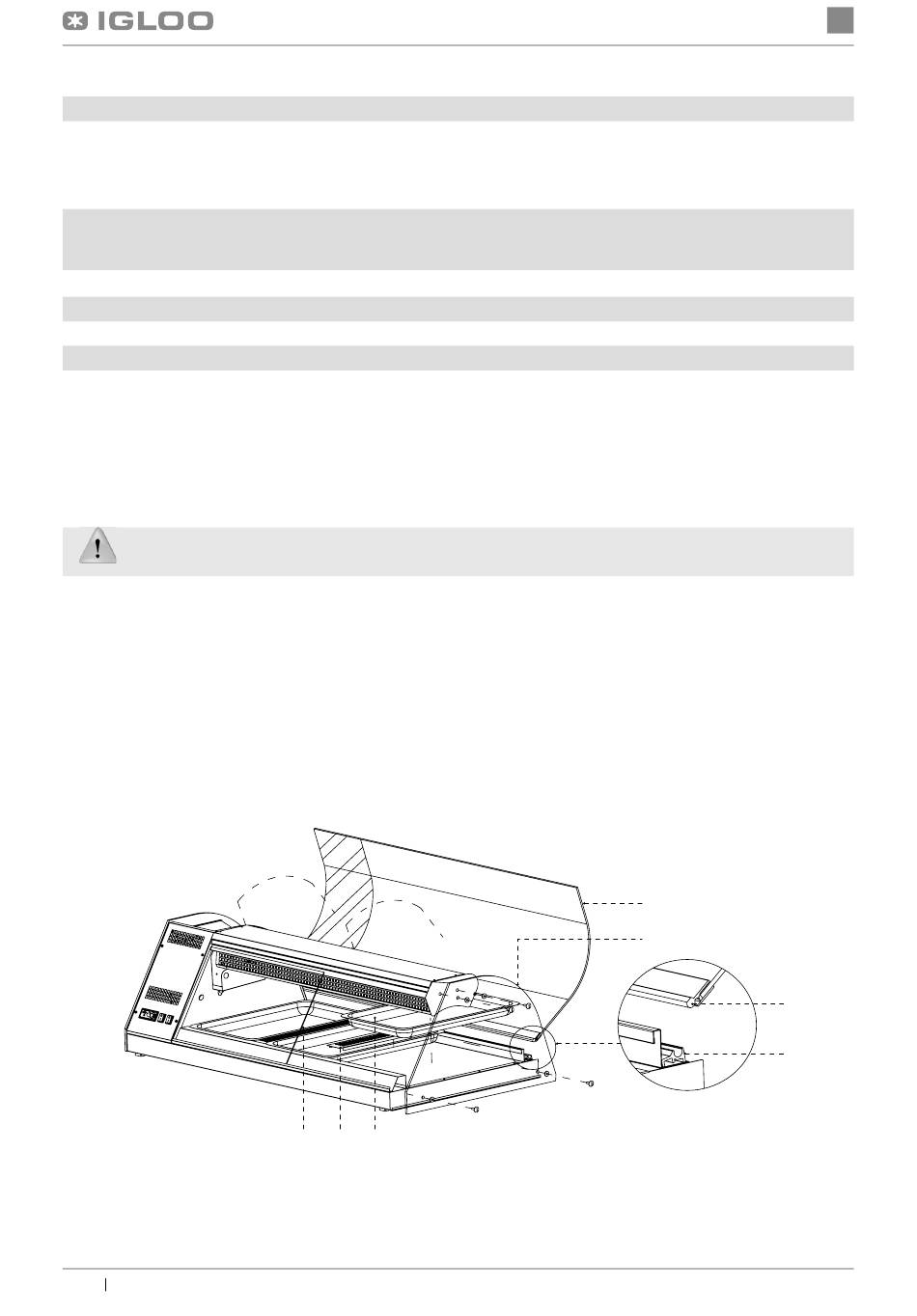

Fig.5 Assembly/disassembly of elements in "Wiktoria" device

1 – Upper aluminium profi le of the glass (lifted guide)
2 – Lower aluminium profi le of the glass (catch)
3 – Bent, front glass, lifted
4- Glass side
12
User manual Wiktoria, Wiktoria 2
1.0
1
Rated
Rated
voltage
current [A]
[V/Hz]
230/50 0,8
230/50 0,8
230/50 0,8
230/50 1,2
7 6 5
1.3
2
Electric energy
Rate lighting
consumption
power [W]
[kWh/24h]
18 2,5
30 2,7
18 2,5
30 3,8
5 – GN container
6 – GN container separator
7 – Night screen
2/1.0 2/1.3
1 4
Weight of
Usable
the device
volume [dm3]
[kg]
70 55
100 75
112 60
180 86
3
4
1
2
