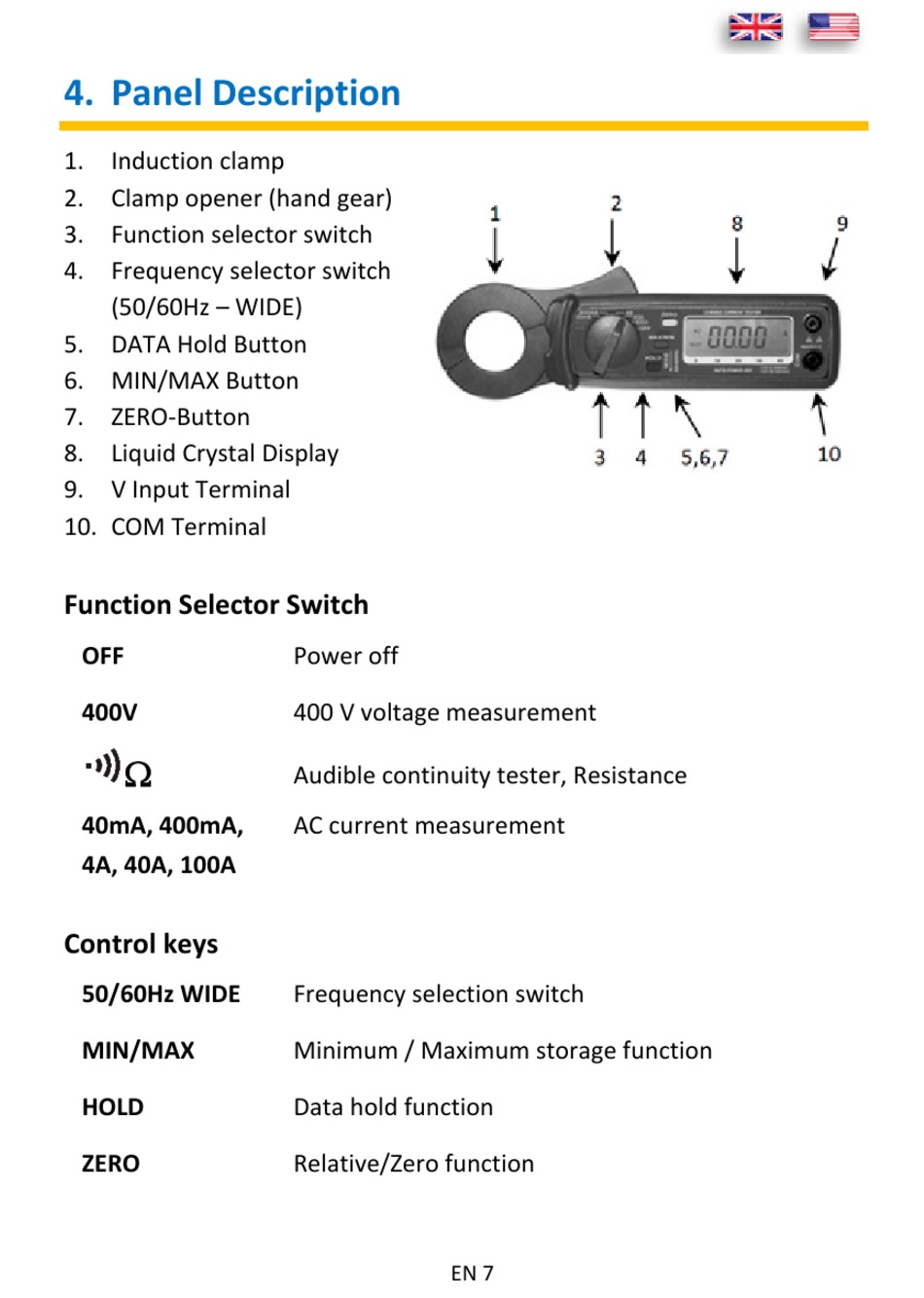

4. Panel Description
1. Induction clamp
2. Clamp opener (hand gear)
3. Function selector switch
4. Frequency selector switch
(50/60Hz – WIDE)
5. DATA Hold Button
6. MIN/MAX Button
7. ZERO‐Button
8. Liquid Crystal Display
9. V Input Terminal
10. COM Terminal
Function Selector Switch
OFF
400V

40mA, 400mA,
4A, 40A, 100A
Control keys
50/60Hz WIDE
MIN/MAX
HOLD
ZERO
Power off
400 V voltage measurement
Audible continuity tester, Resistance
AC current measurement
Frequency selection switch
Minimum / Maximum storage function
Data hold function
Relative/Zero function
EN 7
