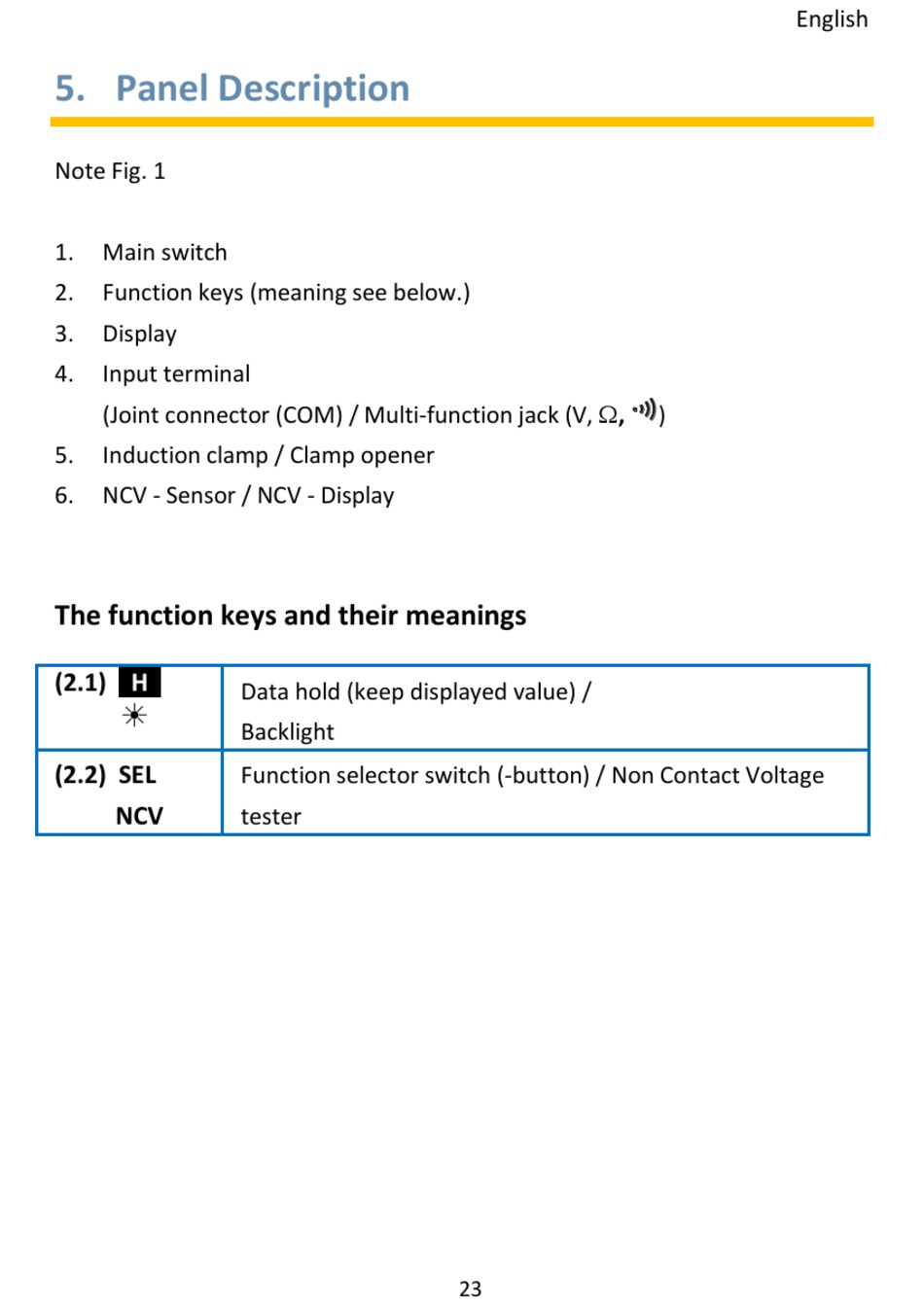

5. Panel Description

Note Fig. 1
1. Main switch
2. Function keys (meaning see below.)
3. Display
4. Input terminal
(Joint connector (COM) / Multi-function jack (V, ,
5. Induction clamp / Clamp opener
6. NCV - Sensor / NCV - Display
The function keys and their meanings
(2.1) xHx
(2.2) SEL
NCV
Data hold (keep displayed value) /
Backlight
Function selector switch (-button) / Non Contact Voltage
tester
