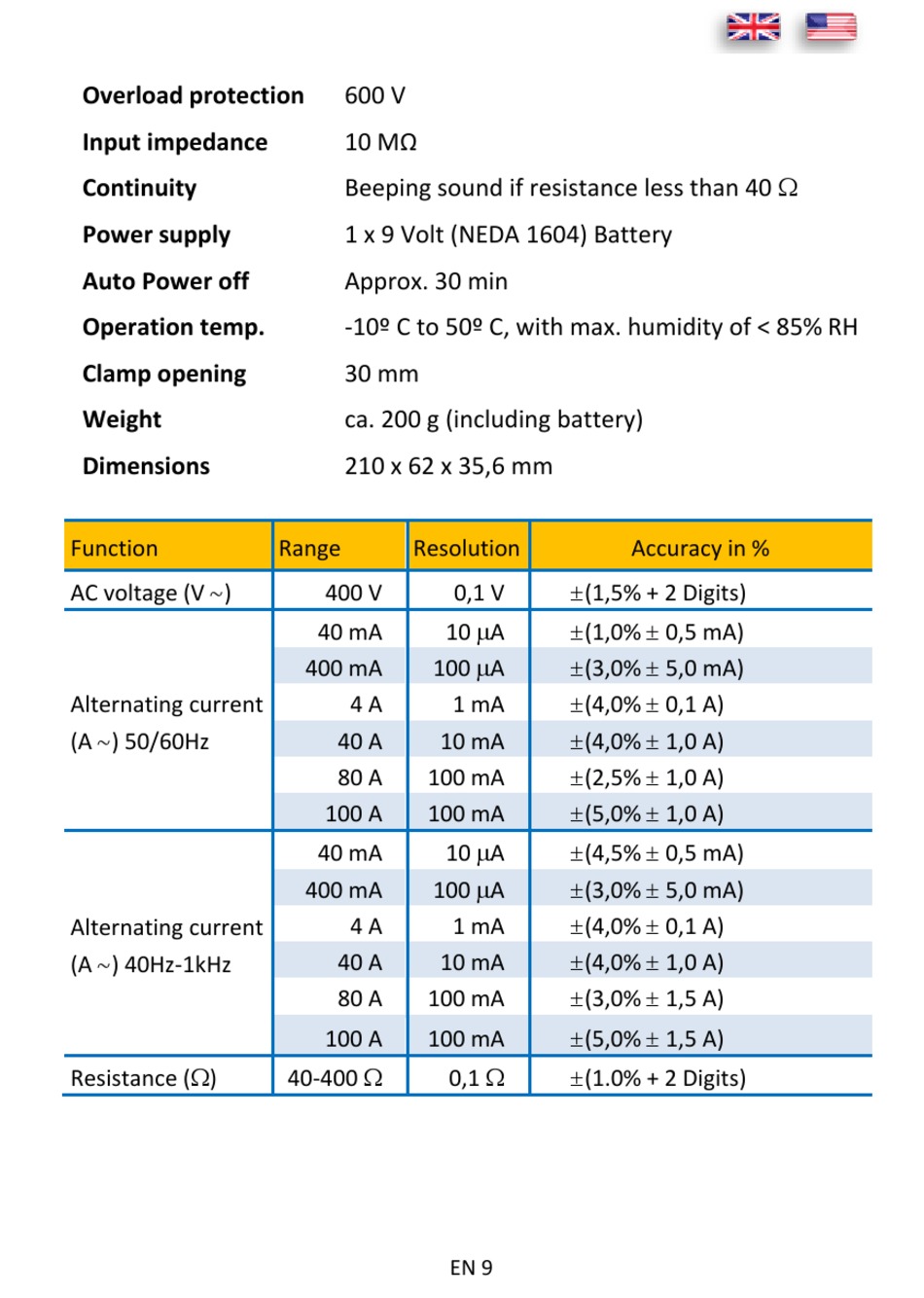

Overload protection
Input impedance
Continuity
Power supply
Auto Power off
Operation temp.
Clamp opening
Weight
Dimensions
Function
AC voltage (V )
Alternating current
(A ) 50/60Hz
Alternating current
(A ) 40Hz‐1kHz
Resistance ()
600 V
10 MΩ
Beeping sound if resistance less than 40 
1 x 9 Volt (NEDA 1604) Battery
Approx. 30 min
‐10º C to 50º C, with max. humidity of < 85% RH
30 mm
ca. 200 g (including battery)
210 x 62 x 35,6 mm
Range Resolution
400 V
40 mA 10 A
400 mA 100 A
4 A 1 mA
40 A 10 mA
80 A 100 mA
100 A 100 mA
40 mA 10 A
400 mA 100 A
4 A 1 mA
40 A 10 mA
80 A 100 mA
100 A 100 mA
40‐400  0,1 
EN 9
(1,5% + 2 Digits)
0,1 V
(1,0%  0,5 mA)
(3,0%  5,0 mA)
(4,0%  0,1 A)
(4,0%  1,0 A)
(2,5%  1,0 A)
(5,0%  1,0 A)
(4,5%  0,5 mA)
(3,0%  5,0 mA)
(4,0%  0,1 A)
(4,0%  1,0 A)
(3,0%  1,5 A)
(5,0%  1,5 A)
(1.0% + 2 Digits)
Accuracy in %
