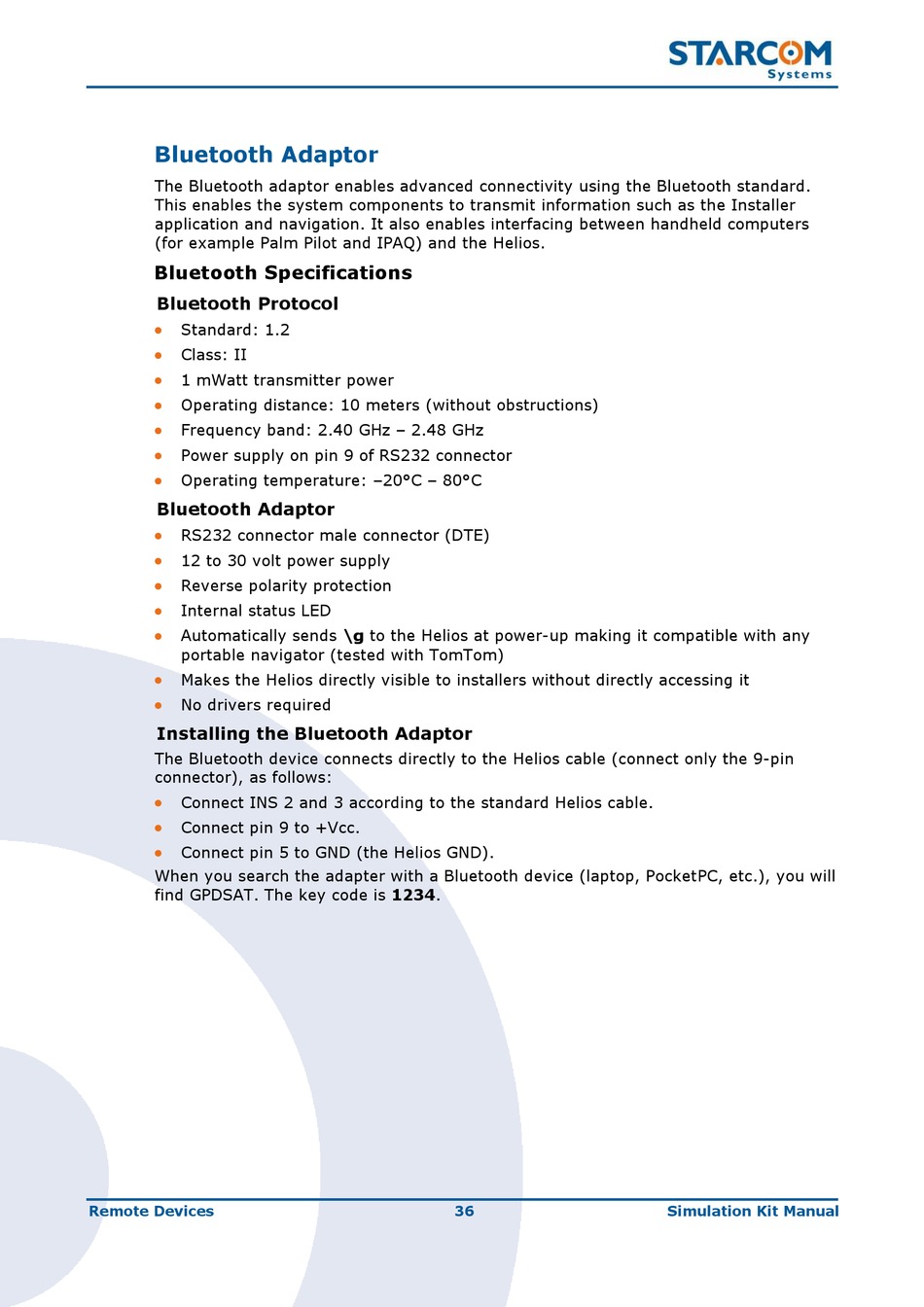

Bluetooth Adaptor

The Bluetooth adaptor enables advanced connectivity using the Bluetooth standard.
This enables the system components to transmit information such as the Installer
application and navigation. It also enables interfacing between handheld computers
(for example Palm Pilot and IPAQ) and the Helios.
Bluetooth Specifications
Bluetooth Protocol

Standard: 1.2

Class: II

1 mWatt transmitter power

Operating distance: 10 meters (without obstructions)

Frequency band: 2.40 GHz – 2.48 GHz

Power supply on pin 9 of RS232 connector

Operating temperature: –20°C – 80°C
Bluetooth Adaptor

RS232 connector male connector (DTE)

12 to 30 volt power supply

Reverse polarity protection

Internal status LED

Automatically sends \g to the Helios at power-up making it compatible with any
portable navigator (tested with TomTom)

Makes the Helios directly visible to installers without directly accessing it

No drivers required
Installing the Bluetooth Adaptor
The Bluetooth device connects directly to the Helios cable (connect only the 9-pin
connector), as follows:

Connect INS 2 and 3 according to the standard Helios cable.

Connect pin 9 to +Vcc.

Connect pin 5 to GND (the Helios GND).
When you search the adapter with a Bluetooth device (laptop, PocketPC, etc.), you will
find GPDSAT. The key code is 1234.
