Temperature Sensor
You can use the temperature sensor to measure the temperature when this
information is important, for example, in an oil tanker.
The temperature sensor is factory-fitted with a filter to which it connects with a
shielded cable. The filter reduces environmental noise and measures temperature in
the range –20°C to +40°C.
Install the probe in the location whose temperature you wish to track.
The following figure shows how the filter is connected to the
Note:
temperature sensor. Ground connections are marked by square shapes on
the printed circuit board and positive signals by round shapes.

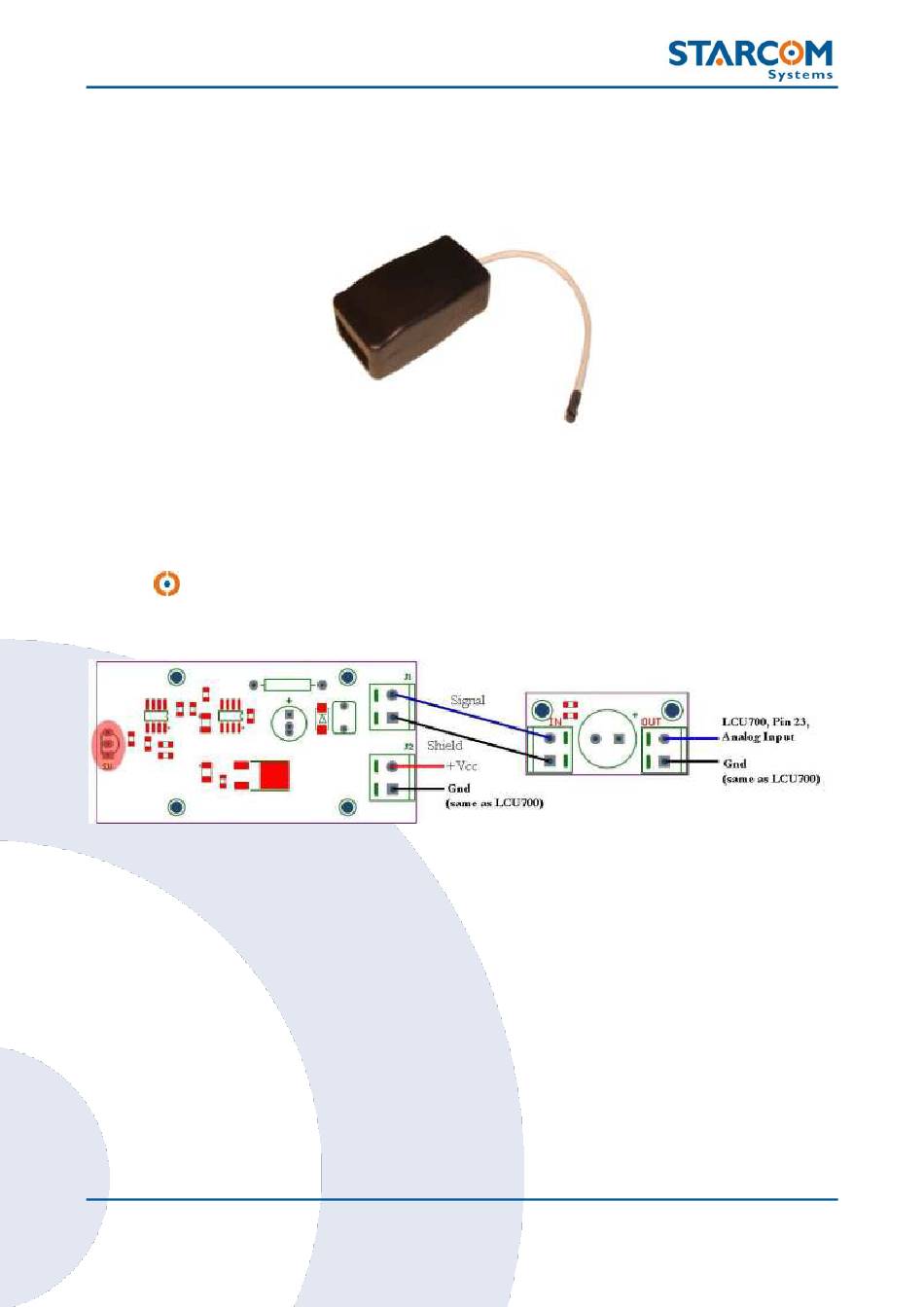

Figure 21 Temperature Sensor and Filter Connections
To calibrate the temperature sensor:
1.
Using a thermometer calibrated by an approved laboratory, measure the
temperature in the area of the vehicle whose temperature you wish to track.
2.
Record the value registered by the temperature sensor.
3.
Repeat steps
4.
Access Starcom Online and upload the values you measured. Starcom will send
you a calibration update.
Remote Devices
Figure 20 Temperature Sensor
1 and
2 for three or four different temperatures.
35
Simulation Kit Manual
