Chapter 5 Helios Accessories
Remote
Devices
Dallas iButton
The Dallas iButton is used to disarm the Helios, activate Garage mode, and identify
drivers. You can program up to 50 Dallas iButtons into the Helios memory for
identifying drivers.
Installing the Dallas iButton
To install the Dallas iButton remotely:
3.
Place the Dallas socket on the dashboard and connect the black wire (–) to ground
and the gray one to the Key Pad/Dallas pin (#7) of the Helios .
4.
Send a command of "Learn Dallas iButton", using an Installer application.
5.
Choose Dallas code memory location, according to "Drivers ID" tab in Helios
Parameters window.
6.
Choose an output to be triggered when pressing the bigger button.
Remote Devices

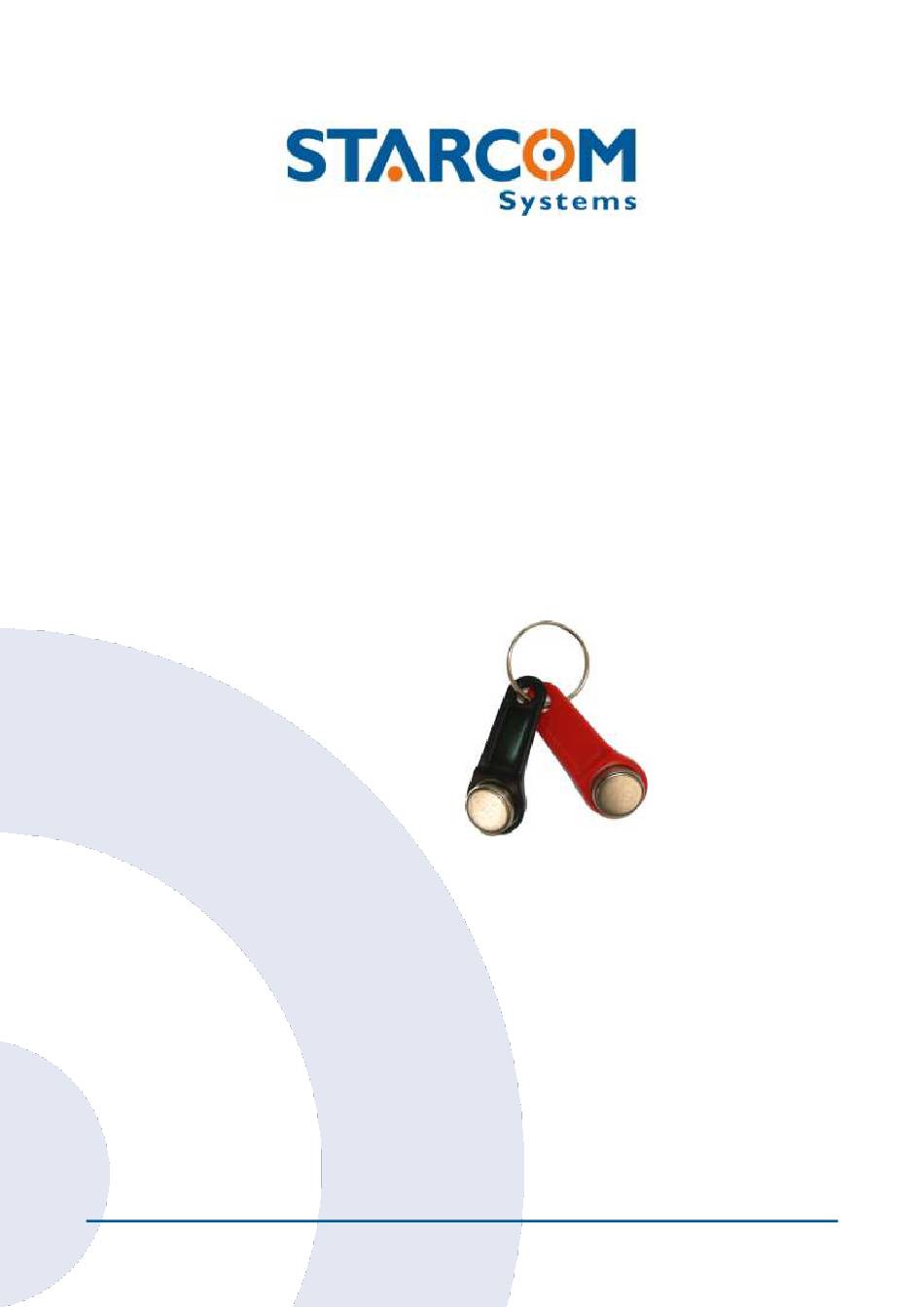

Figure 10 Dallas iButton
21
Simulation Kit Manual
